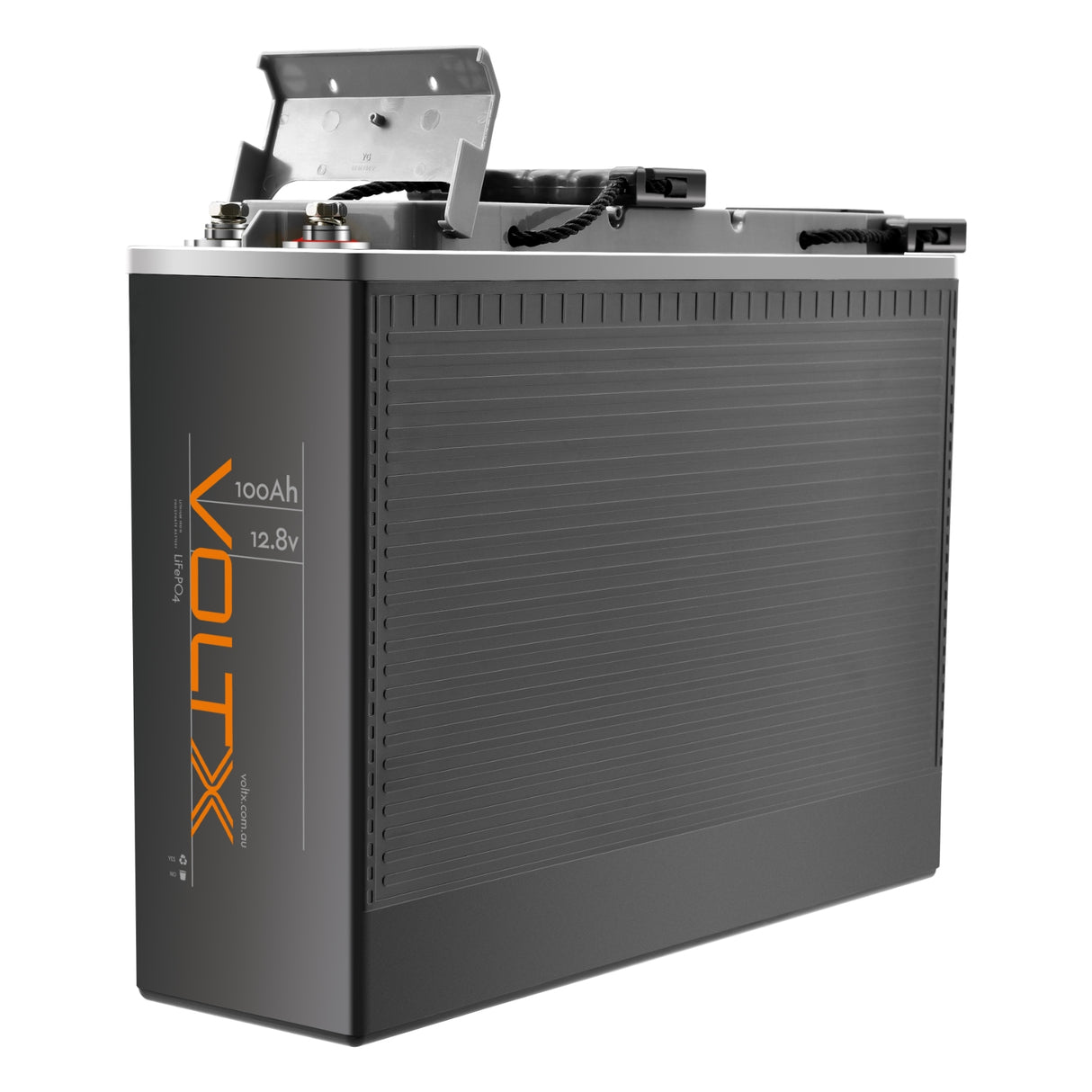

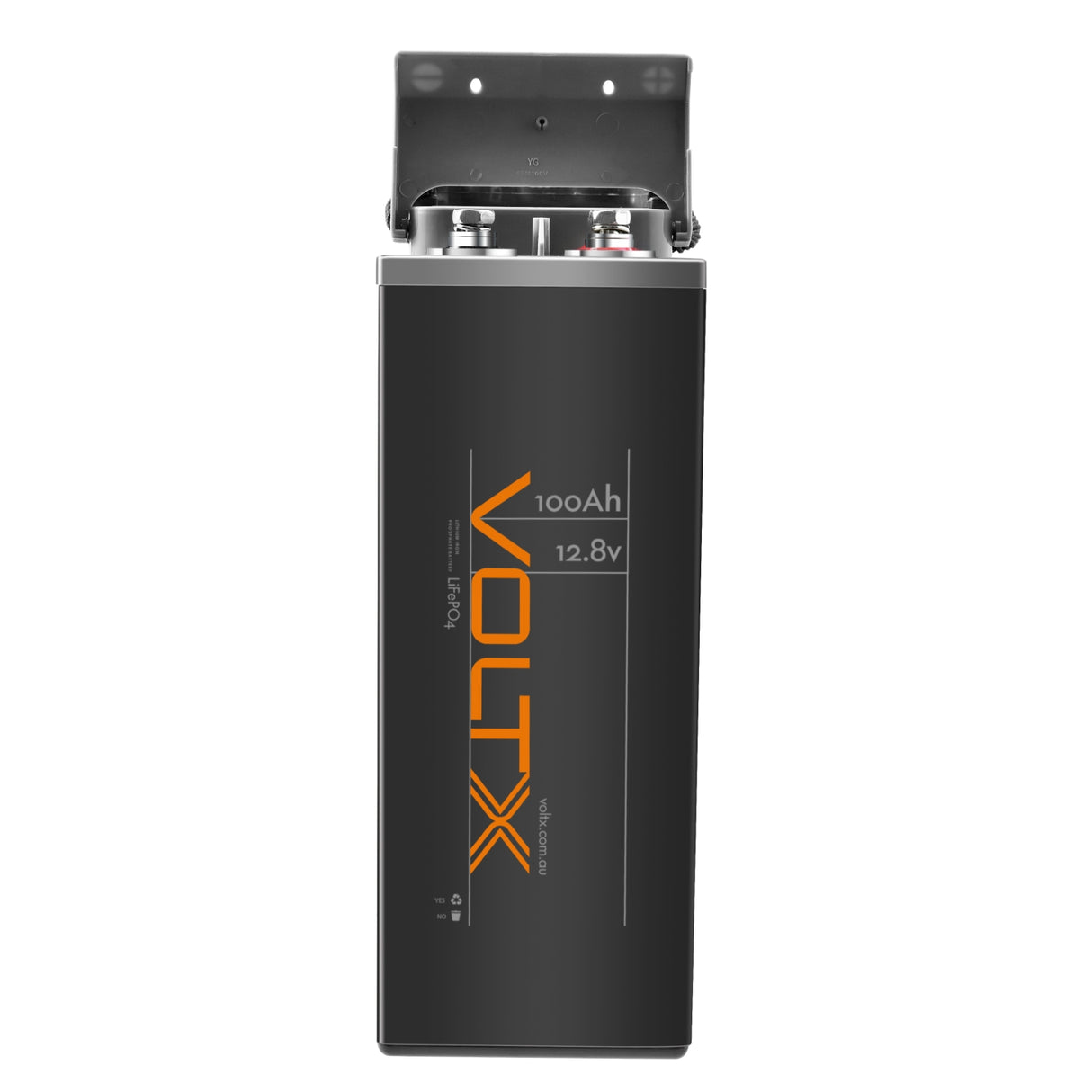

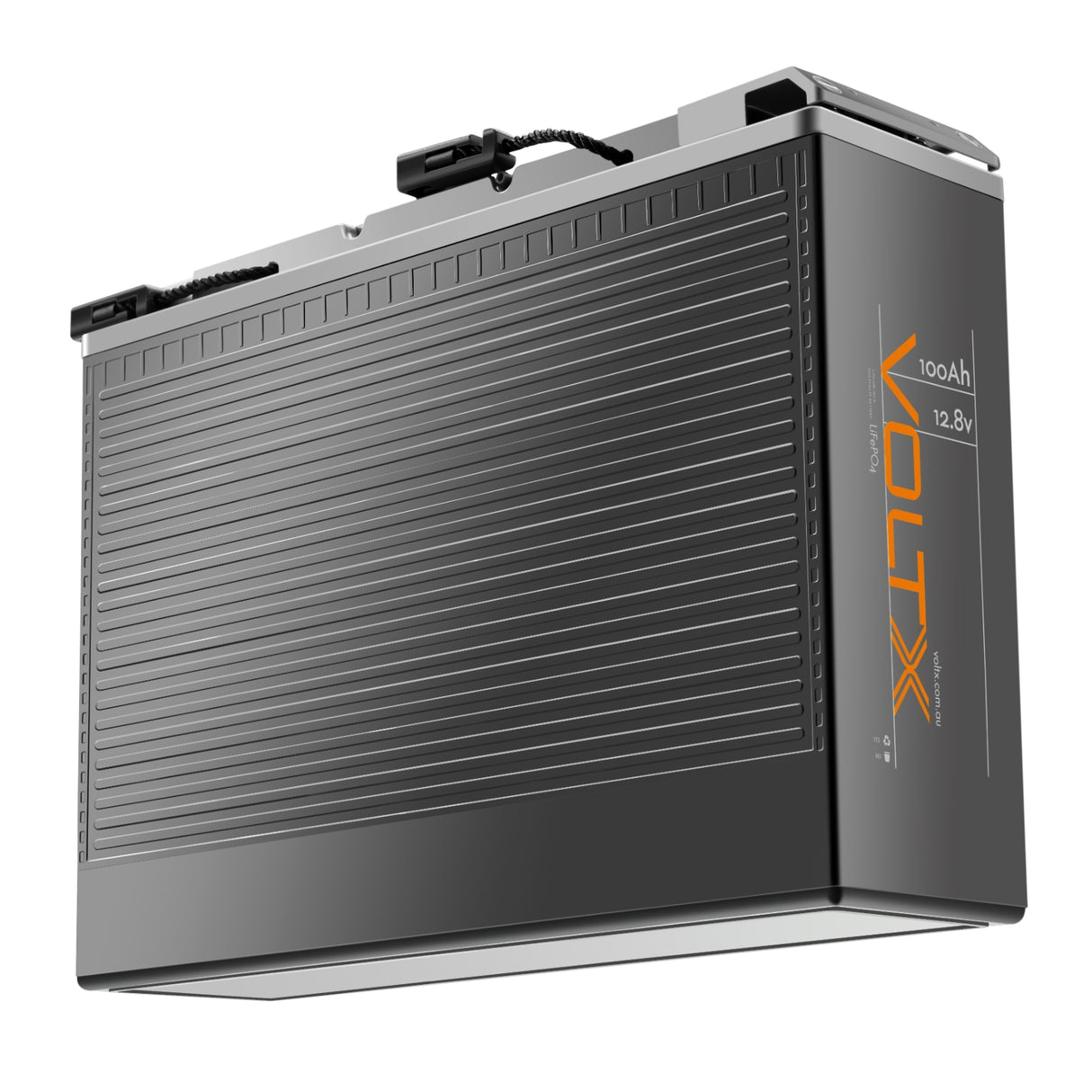

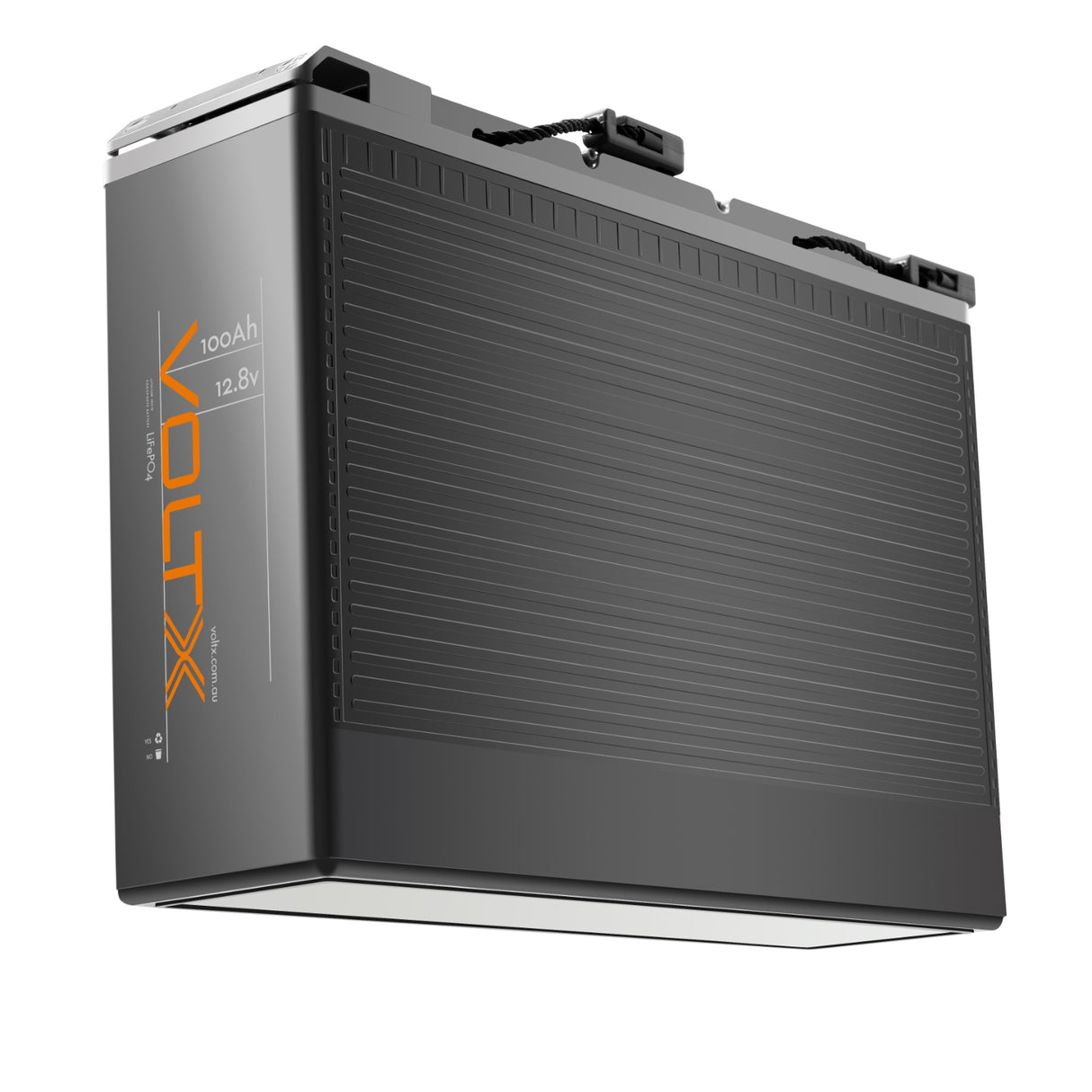

Voltx 12V 100Ah Slim LiFePO4 Battery

Name: Voltx 12V 100Ah Slim LiFePO4 Battery
Brand: OutbaX
SKU: bat-li-12-100a-slim-plus
Price: 699.0 AUD
Availability: InStock
Rating: 4.75 (4 reviews)

$699.00 ~~$1,279.00~~

Tax included

60 Days
Return

36 Months
Warranty

100% Secured
Payment & Data

Merry Savings Xmas Blow-Out

PLUS Get 20% off EVERYTHING

Pay only $559.20

Hurry! Promo ends 25/12/24 11:59 PM AEDT.

Use Code:

MERRY20

STAFF PICK OF THE MONTH

PLUS a further $200 off

Pay only $499

Hurry! Promo ends 31/12/24 11:59 PM AEST.

Use Code:

HANNAH200

Selling fast. Hurry and order now to save 45%

PRODUCT HIGHLIGHTS

GRAND BATTERY SALE
PLUS a further 15% off using code BATTERY15
Pay only $594.15 Hurry! Promo ends 03/06/24 11:59 PM AEST.

3 Years Australian Warranty
Rated Capacity 100Ah
12.8 Volts
395 x 110 x 293mm
11kg
Approved in accordance with IEC 62619

Shipping Calculator

Need big capacity but have limited space?

Discover the power of our 100Ah Slim LiFePO4 Battery, designed with a state-of-the-art lithium battery management system that continuously monitors every cell, ensuring peak performance and extended life. Unlike traditional gel or lead-acid batteries, lithium batteries are safer, lighter, and more powerful, offering a longer service and shelf life.

This 12V 100Ah battery is the ideal drop-in upgrade for replacing your old, heavy batteries. Experience the benefits of a sealed, maintenance-free battery that's perfect for your off-grid system today!

FEATURES

Constructed with advanced LiFePO4 cells for exceptional performance and longevity.
Maintenance-free design with no leaks.
A superior replacement or upgrade for traditional lead-acid batteries.

All our battery packs are comprised of prismatic cells and are backed by LiFePO4's signature built-in BMS. They are tested to deliver 100% real capacity and are suitable for parallel and series wiring of up to 6 battery packs.

SPECIFICATIONS

Brand	VoltX
Nominal Voltage:	12.8V
Nominal Capacity:	100Ah
Charging Voltage:	14.2-14.6v
Rated Energy:	1280Wh
Rated Discharge Current:	100A
Max. Discharge Current:	100A
Max. Discharge Current 5 sec:	200A
Approx Life Cycles:	4000
Absorption Voltage:	13.8V
Float Voltage:	13.5V
Overcharge Protection:	14.6V
Overcharge Recovery:	14.2V
Overdischarge Protection:	11.2V
Overdischarge Recovery:	11.6V
Cell Grouping:	4S1P
Working Temperature Range:	Charge: 0°C to 45°C \| Discharge: -25°C to 65°C
Storage Temperature:	-10℃ to 50℃
Battery Cells:	Prismatic
Case Material:	ABS Plastic
Parallel Connection:	Yes, max 6 batteries
Series Connection:	Yes, max 6 batteries
Warranty in Years:	3

DIMENSIONS & WEIGHT

Dimensions:	395(L) x 110(W) x 297(H)mm
Weight:	12kgs

WHAT'S IN THE BOX

1 x	Lithium Battery

SKU:

bat-li-12-100a-slim-plus

Best battery

Purchased as s second battery for my car, compact enough to fit in rear compartment, perfect. Couldn't be happier with service and quality

Thank you for trusting us with your second battery requirement, Rank 1. Cheers!

Batterys

This is my 4th battery from outbax and like the other 3, which have worked floorless for 3 years, and are still going strong in our set up.

Thank you for continuously trusting us with your LIFEPO4 battery purchases, bj4explore. We hope to see you again. Cheers!

Suits behind back seat in Ranger perfectly

Only had it a short time and all seems good so far Replaced a 200ah agm slim line battery weighing 60kg with 10kg for almost the same usage capacity

Thank you for trusting us with your battery purchase, Ian. Cheers!

100 amp hr Lithium Slim Battery $749

Ordered online and battery arrived 3 days later well protected in its packaging. Well done.

The BMS panel is a welcome and very useful addition.

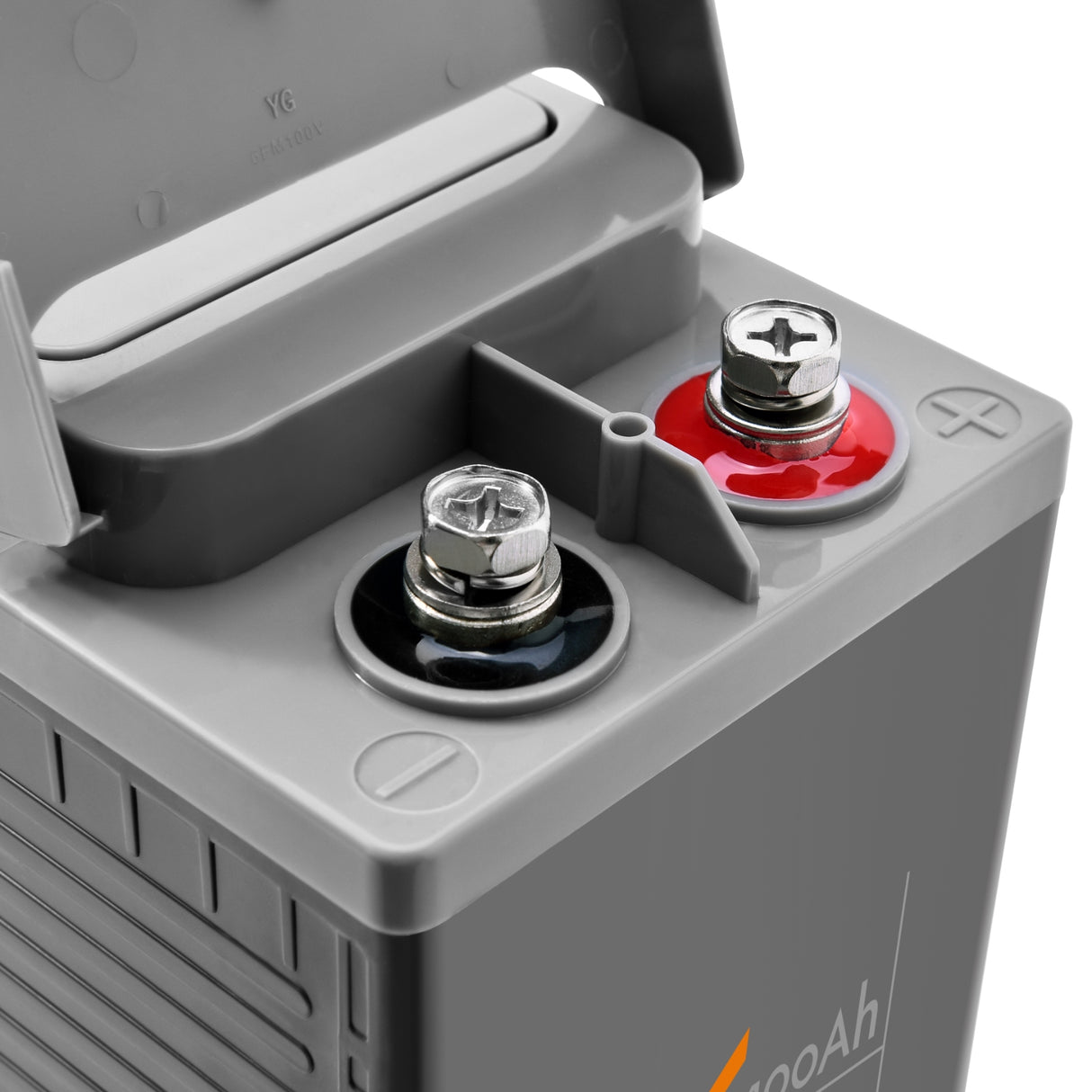

My only issue is the terminals. With the supplied bolts you can only attach 2 wires to each terminal until you run out of bolt length. Fitting longer bolts is not an option as the terminal cover (another useful addition) will no longer engage with the locking pin.

I have managed a work around but would have preferred not to.

Overall a good product with one oversight in its design.

Thank you for evaluating the product, Outback Nomad. We hear you and will share your input with the Team for battery design improvements. Stay Safe.

What cables should I use to connect the batteries in series or parallel?

The specifications of the selected cables are determined according to the actual charging and discharging current. The overcurrent value varies from different cables. For example, the cross-sectional area of the conductor is 10mm2, and the cable can pass 50A current. The cross-sectional area of the conductor is 25mm2, and the cable can pass 100A current, etc.

How do I maintain the life cycle of battery?

1. Lithium batteries that have not been used for a long time should be stored in a cool and dry place. It's best to store them in a semi-electric state. Storage without any power will also damage the battery. Check the battery every 3 months to see if it needs to be recharged. 2. Lithium batteries should be charged while they are in use, but it should be noted that lithium batteries cannot be over-discharged, which will cause irreversible capacity loss. Don't wait to charge the battery until there is no power at all. The best time to charge is when the power state of the battery is less than 10%. 3. Do not mix the lithium battery with metal objects to avoid metal objects touching the positive and negative poles of the battery. This could result in short circuiting, damage to the battery and even cause danger. 4. Use a regular compatible lithium battery charger to charge the battery. Do not use a charger with inferior quality or other types of lead-acid battery chargers to charge the lithium battery.

Do I need a battery balancer when running in series to 48V?

A battery balancer can better protect the battery and maintain voltage balance, so it's a good choice.

Can you please confirm if this is a deep cycle battery?

Yes, this is a deep cycle battery.
