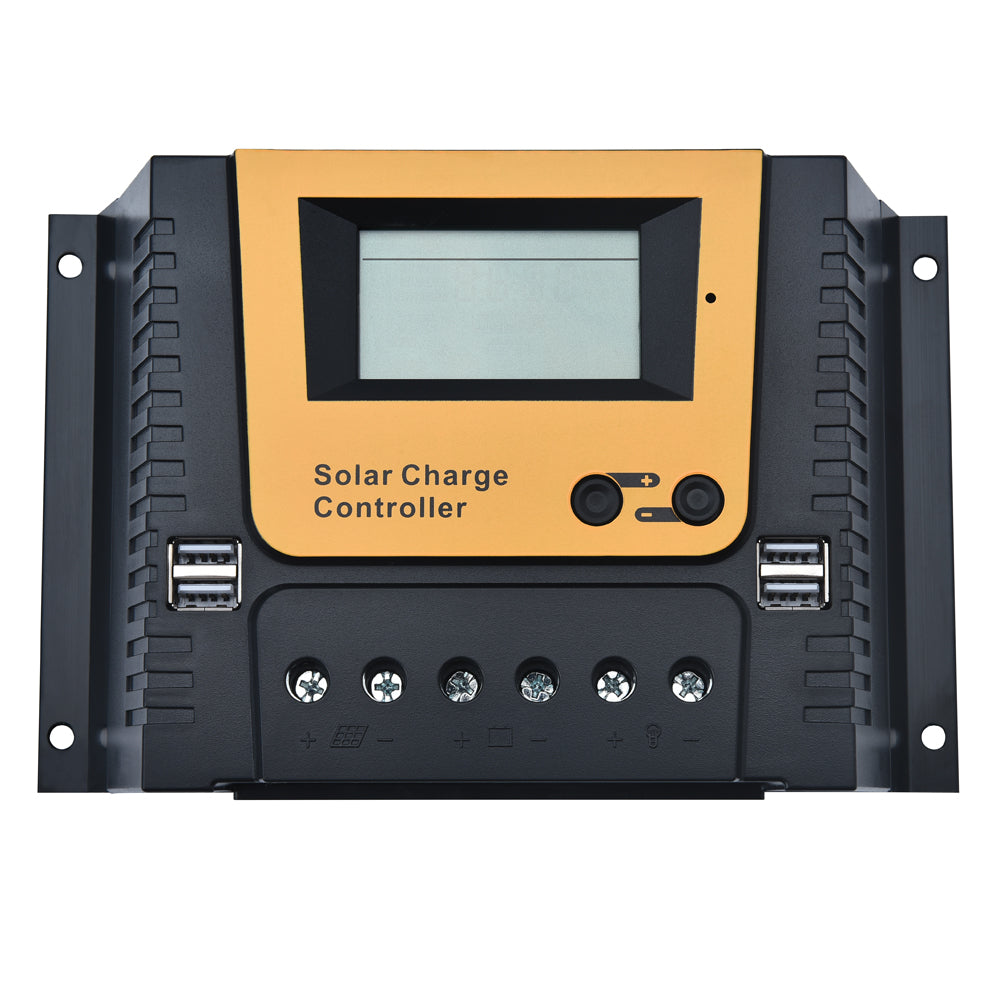

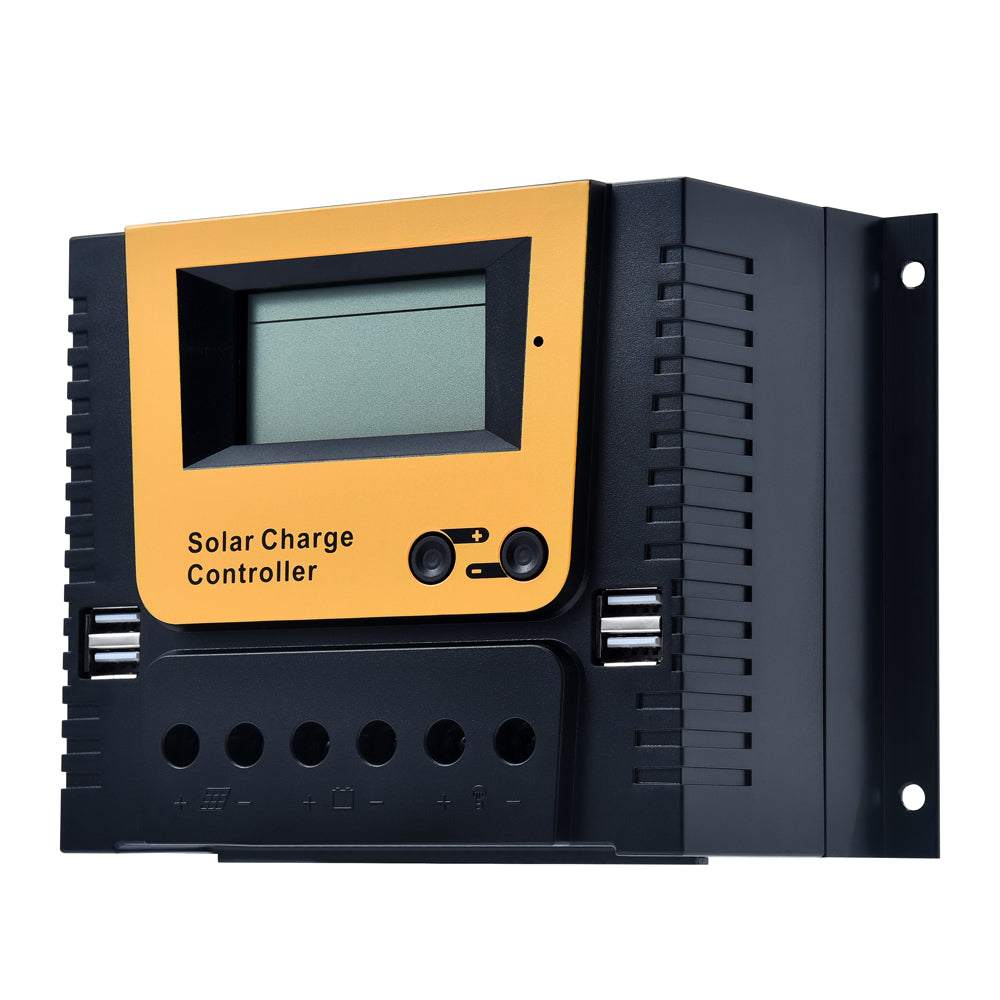

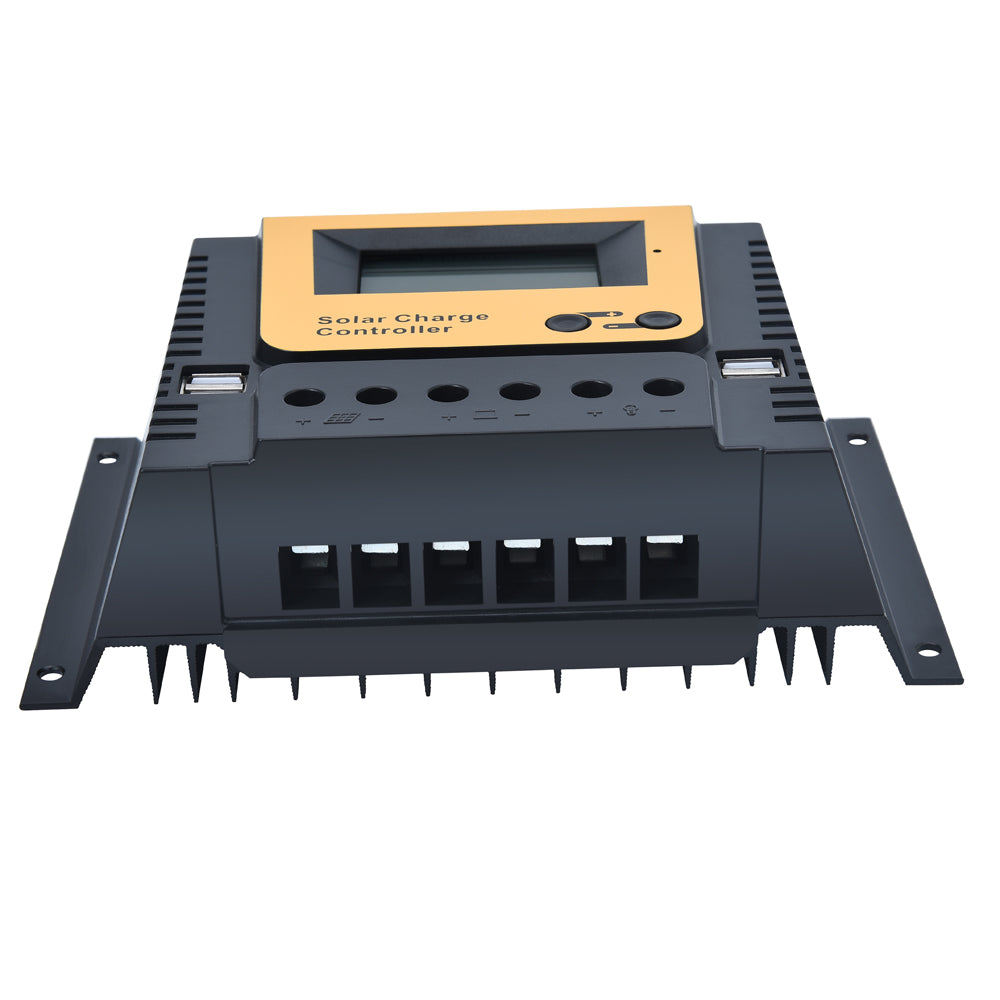

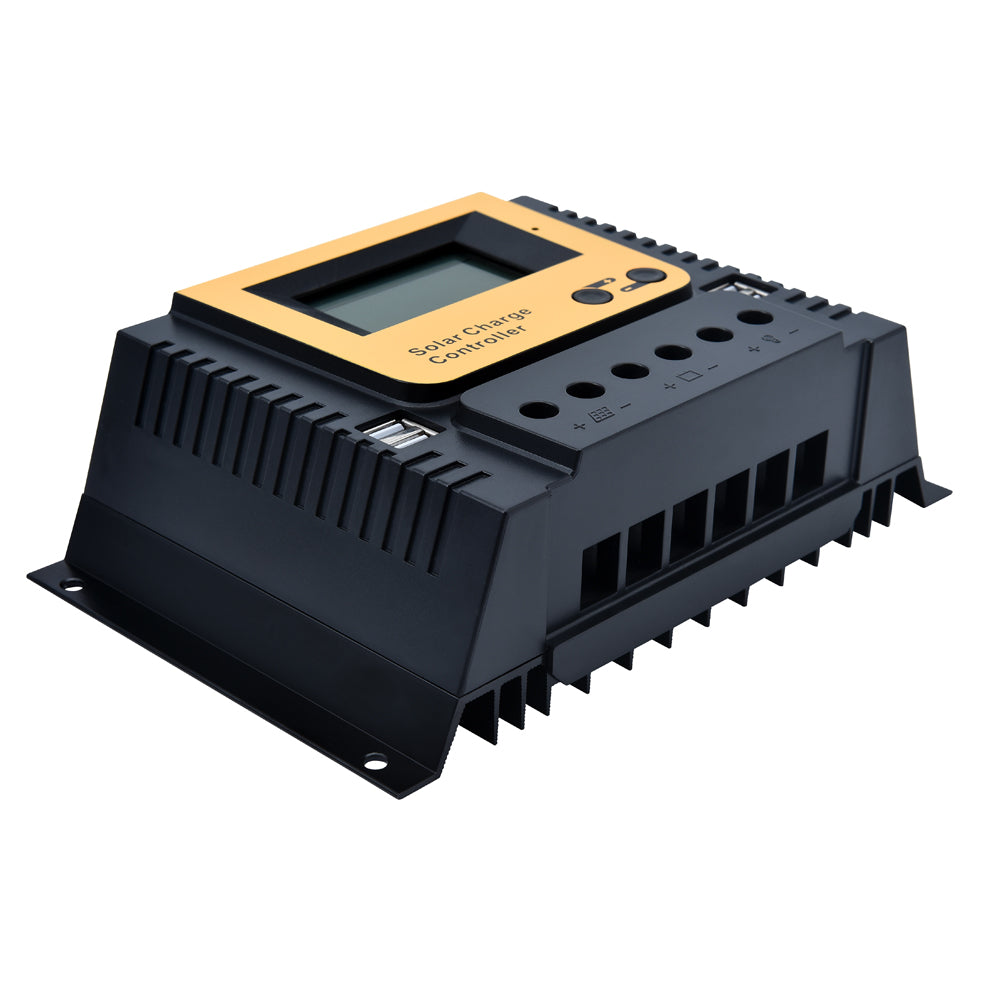

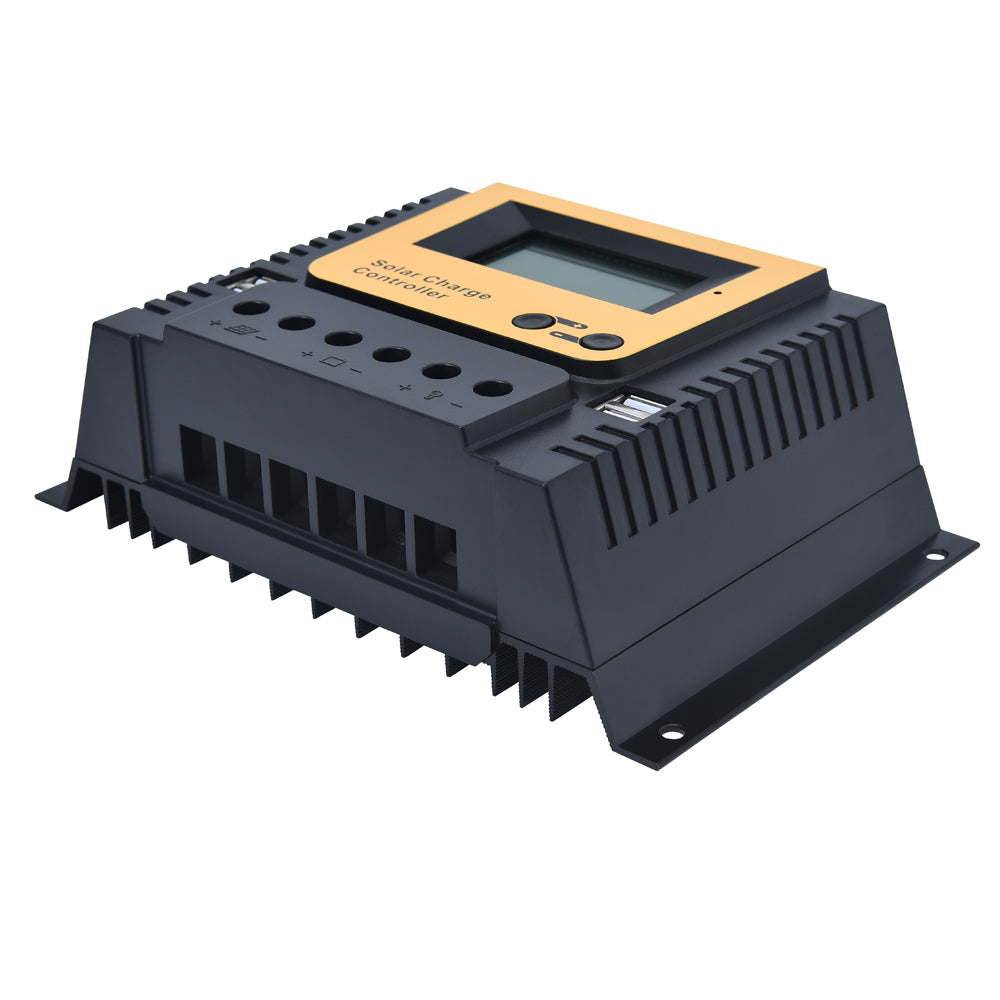

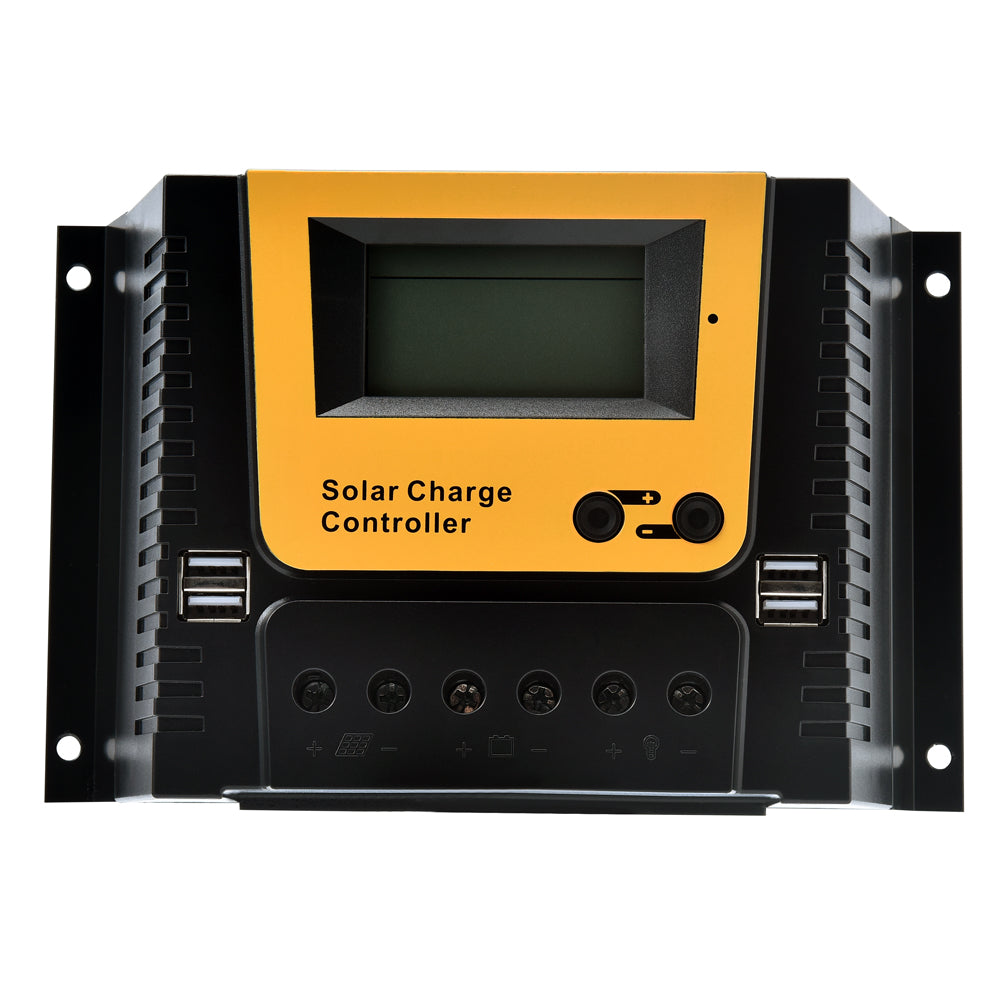

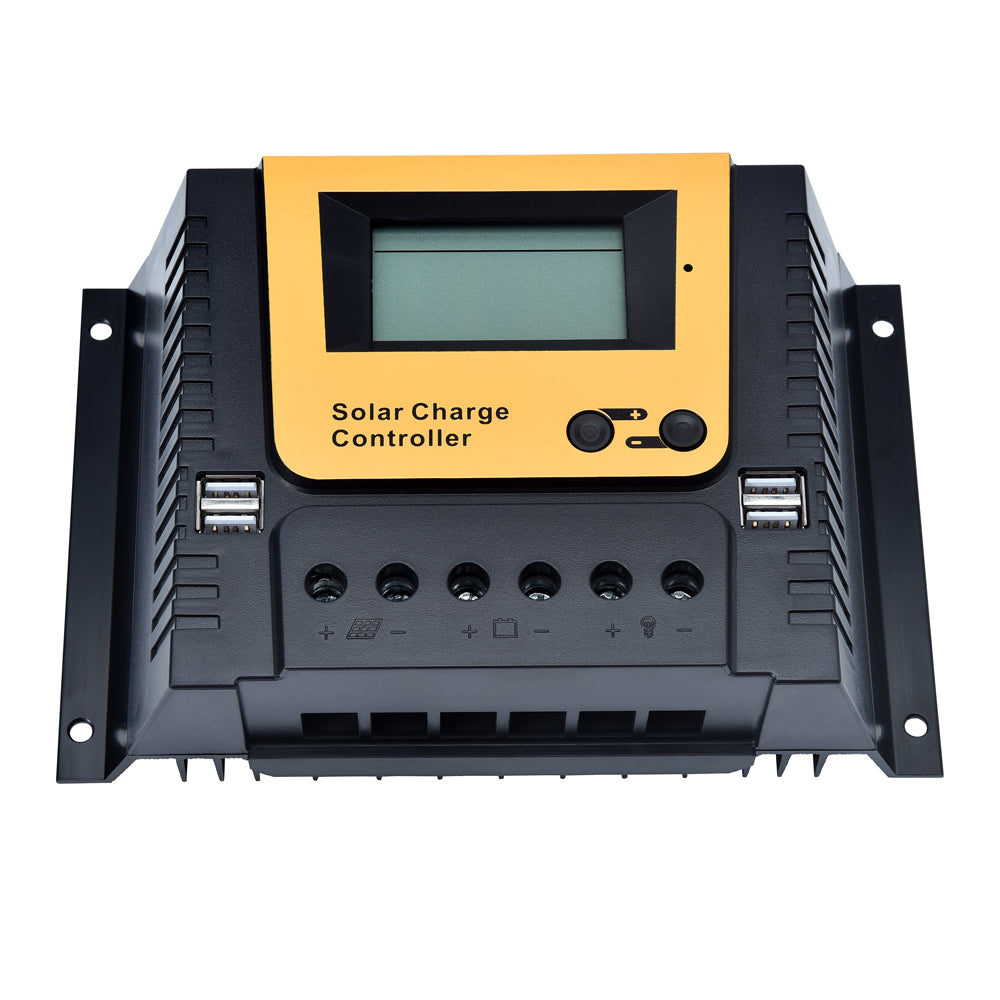

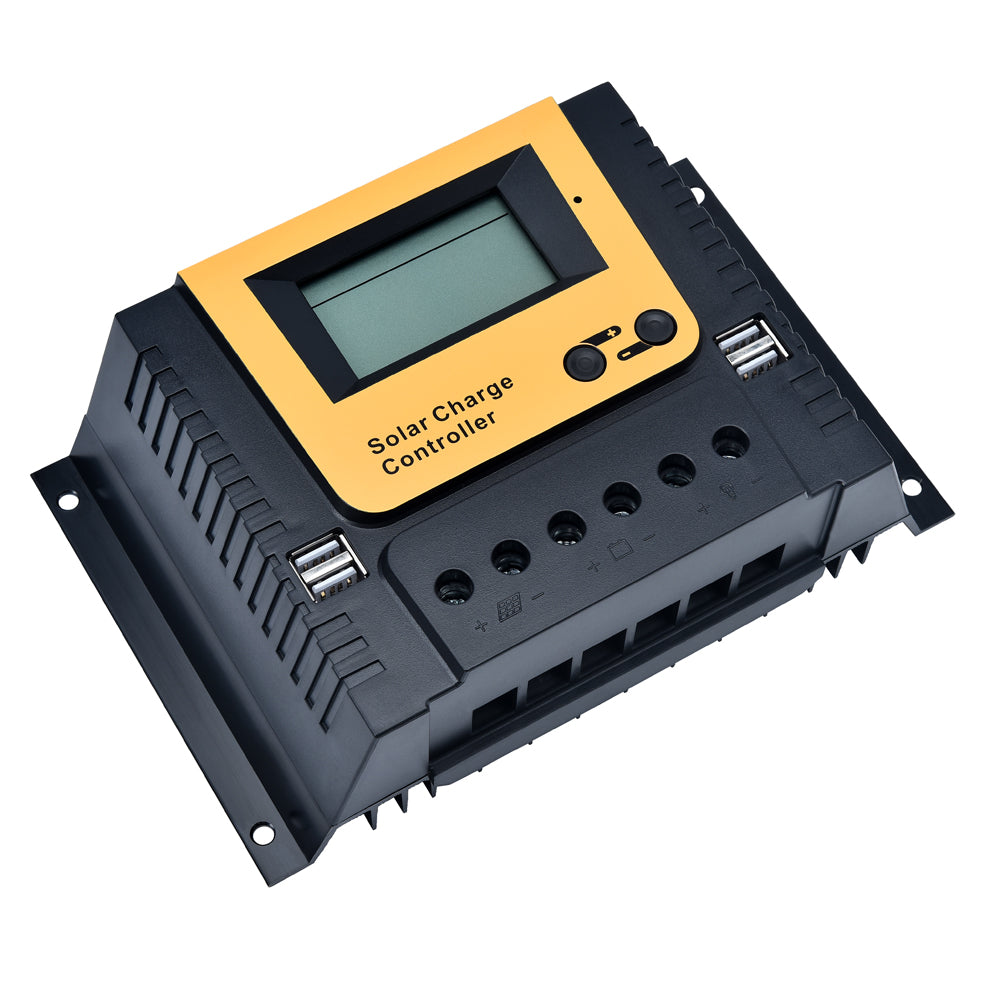

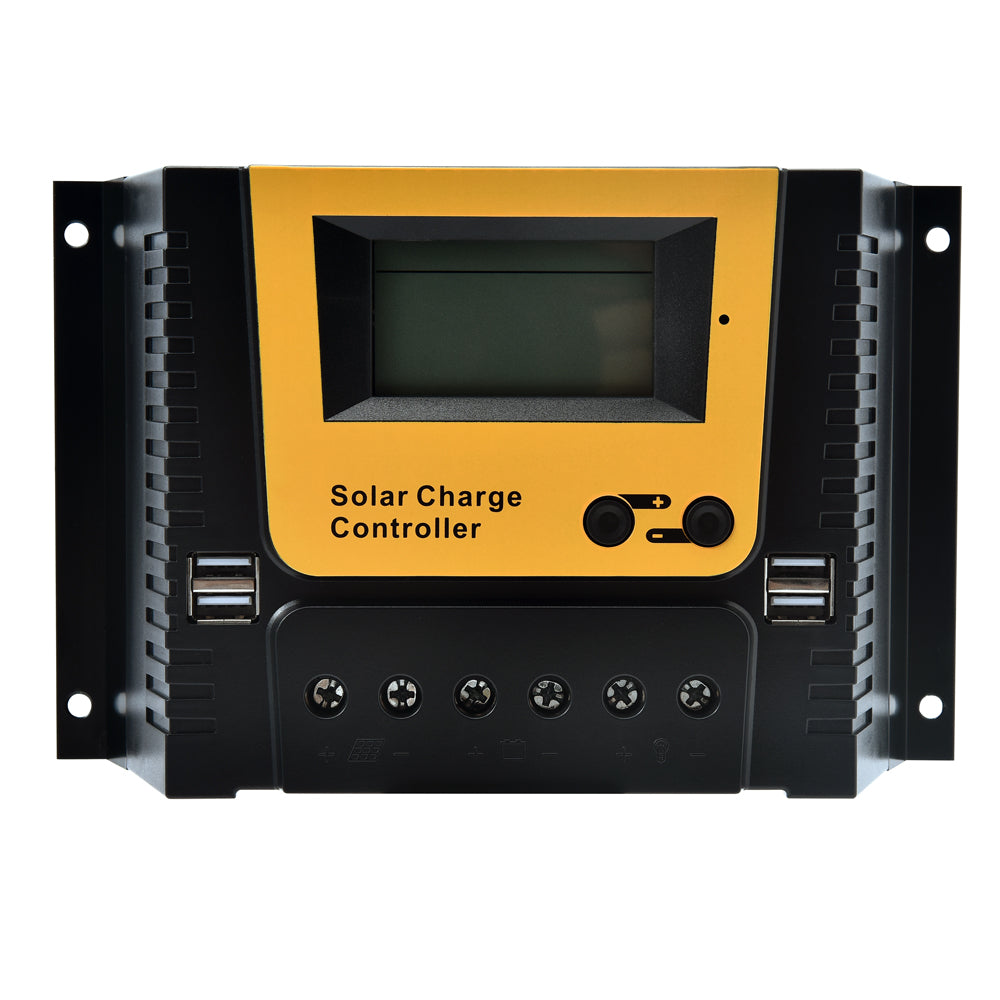

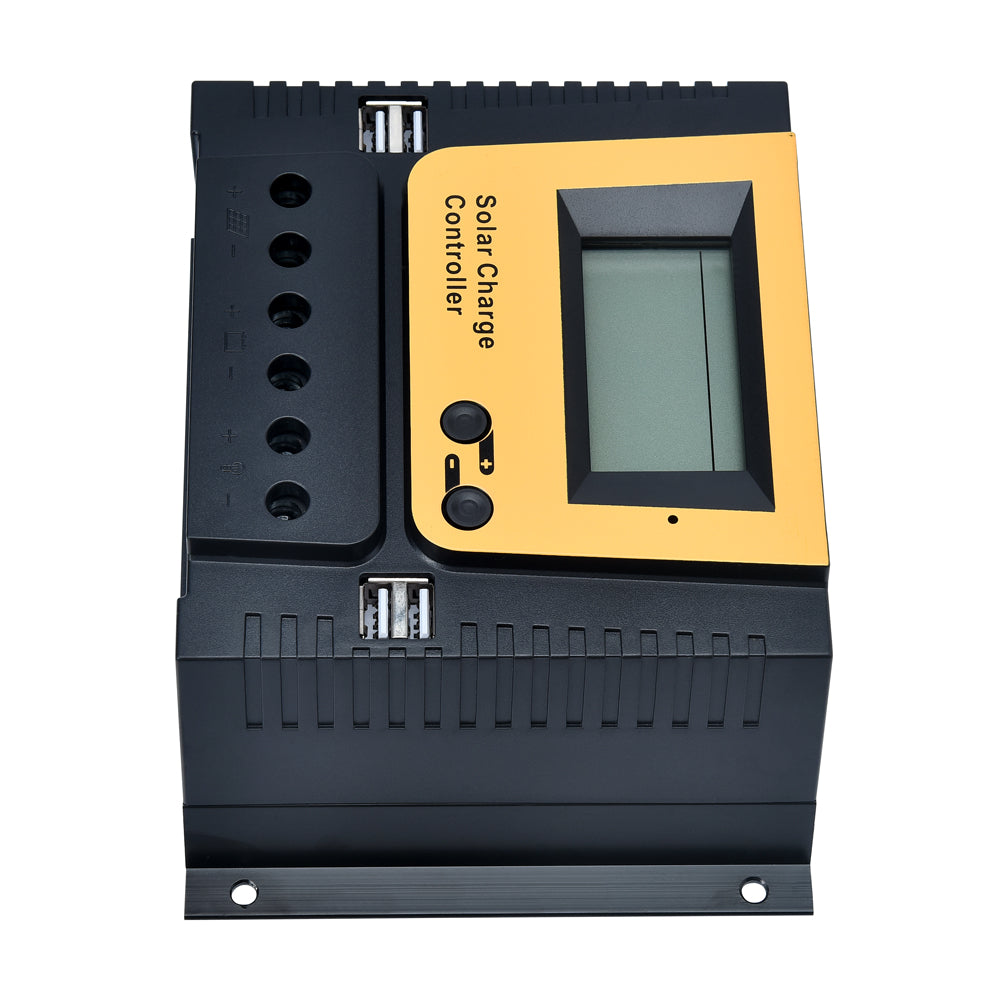

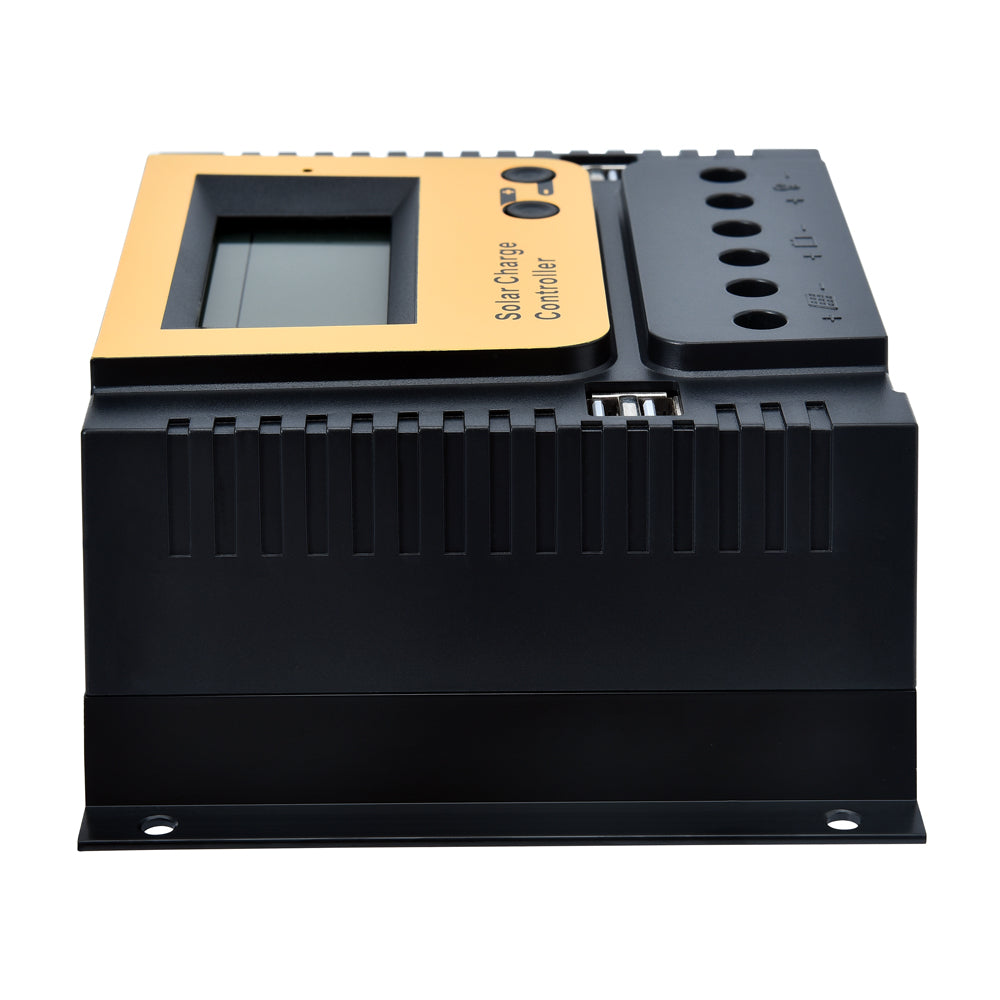

Solar Charge Controller 40A 12V/24V/36V/48V PWM
Couldn't load pickup availability
60 Days
Return
12 Months
Warranty
100% Secured
Payment & Data
Merry Savings Xmas Blow-Out
PLUS Get 20% off EVERYTHING
Pay only $47.20
Hurry! Promo ends 25/12/24 11:59 PM AEDT.
Use Code:
MERRY20
Selling fast. Hurry and order now to save 50%
PRODUCT HIGHLIGHTS
- 40A PWM Regulator
- Lithium battery activation function
- Fully 4-stage PWM charge management
- Dual USB ports
- Suitable for Lead-acid, Flooded, AGM, GEL, & Lithium batteries
Maximise the performance of your off-grid solar system with our PWM solar regulator, designed to provide intelligent control and protection for your electrical flows. Now, this may not be a Bluetooth-enabled solar regulator, but the overall quality is just as top-notch as our other Bluetooth-enabled solar regulators. Whether you're using Lead Acid, AGM, or Gel batteries, this PWM charge controller for 40A systems ensures efficient, safe, and rapid charging for long-term use.
Efficient Charging and Enhanced Performance
Featuring a PWM 4-stage charging process—bulk, absorption, equalise, and float—this controller offers 15% higher charging efficiency than traditional PWM models. With its advanced design, it guarantees fast and safe battery charging while optimising energy usage from your solar panels, making it the ideal choice for off-grid solar panel systems.
Advanced Protection and Convenient Features
This off-grid solar panel controller also offers comprehensive protection, including safeguards against over-temperature, over-current, over-power, low voltage, and over-voltage to keep your battery in its best shape. The dual USB ports provide convenient charging for electronic devices, while the large LCD display powered by an intelligent chip offers real-time monitoring of your system's input, output, and battery status.
High Quality, Durable Build

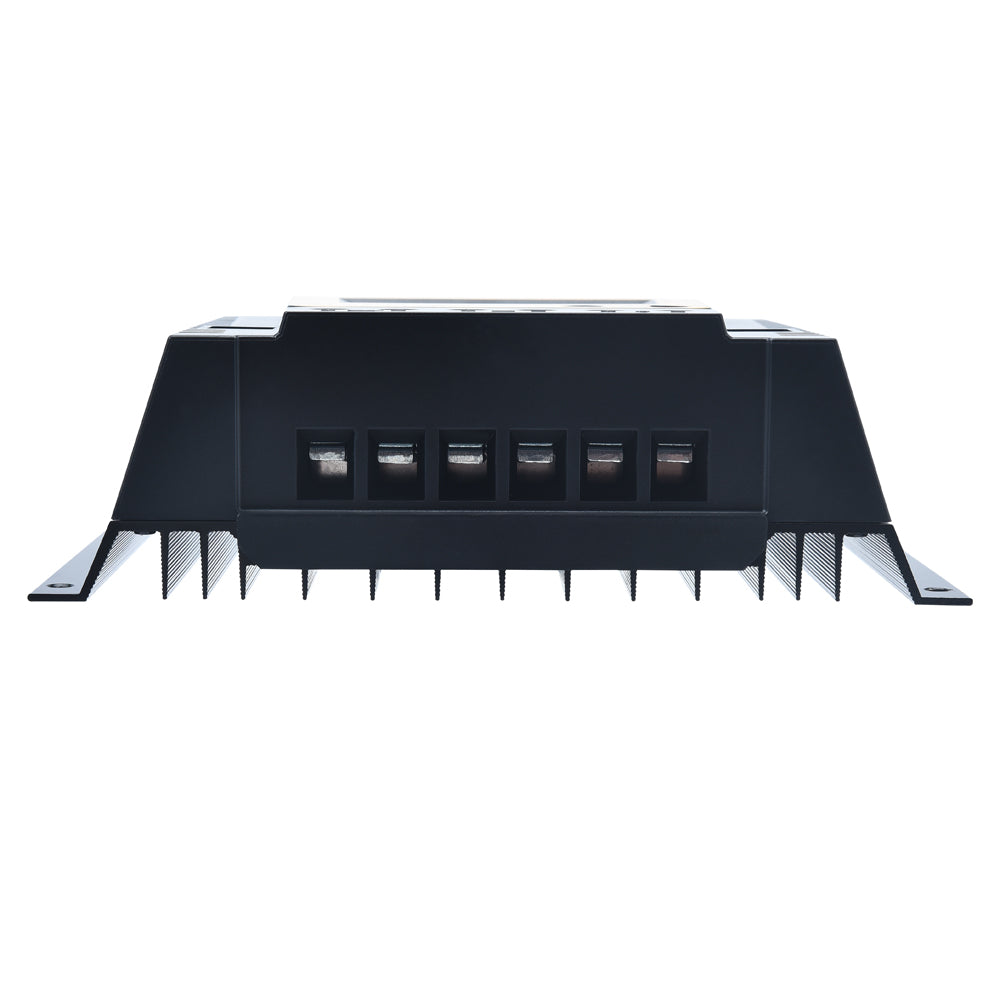

Our PWM solar regulator delivers maximum performance in a sturdy exterior that also allows for efficient heat dissipation. Corrosion-resistant with high conductivity, this off-grid solar panel controller is definitely a must-have in power setups for use in outdoor applications.
Ready to get your solar system up and running? Get this PWM charge controller for 40A systems at the best-ever price at Outbax! Click here for step-by-step guidance on wiring your PWM 40A solar charge controller.
SPECIFICATIONS
| Battery Voltage： | 12V/24V/36V/48V Auto |
| Max PV Open Circuit Voltage: | 100V |
| Self-consumption: | ≤30mA |
| Loop Voltage Drop: | ≤0.3V |
| USB Output: | 5V/2A *2 |
| Temperature Compensation: | -4mV/℃ /2V (25℃ ) |
| Operating Temperature: | -20℃ ~+50℃ |
| Protection Category: | IP32 |
| Humidity: | 95%, no condensation |
DIMENSIONS & WEIGHT
| Dimensions: | 200 x 106 x 47mm |
| Mounting Hole Size： | 190 x 69mm-Φ5mm |
| Terminals： | 6AWG/16mm2 |
| Weight: | 0.4KG |
WHAT'S IN THE BOX
| 1 x | 40A PWM Controller |
SKU:
| scp-vt4048-40a |
