PRODUCT HIGHLIGHTS
- 30A MPPT Regulator with Bluetooth
- Lithium battery activation function
- 12V/24V Automatic System Recognition
- Supports Gel, Flooded, Sealed and Lithium batteries
- Smart Cooling Fan & Alloy Alluminum Heat Sink
Calculate shipping COST

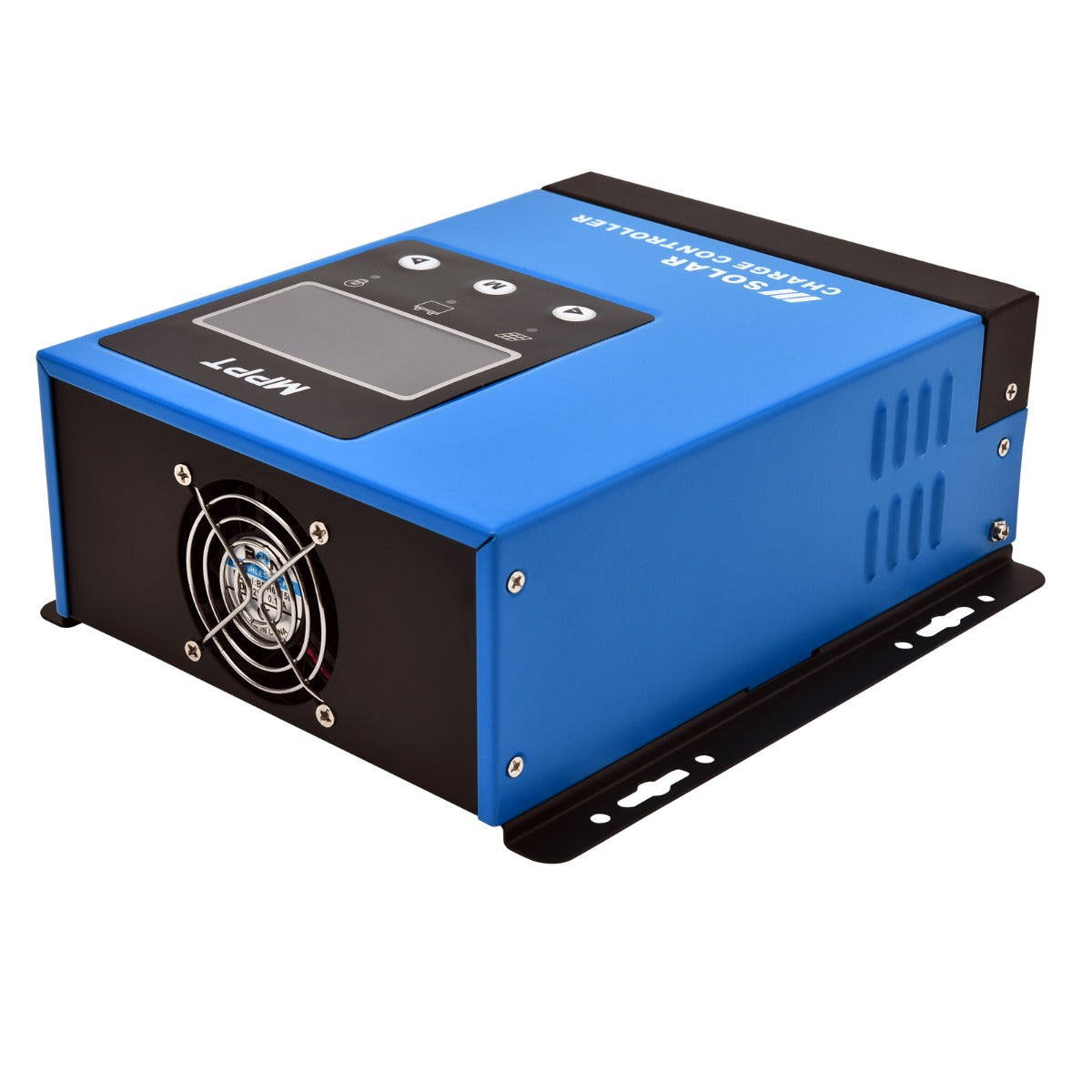

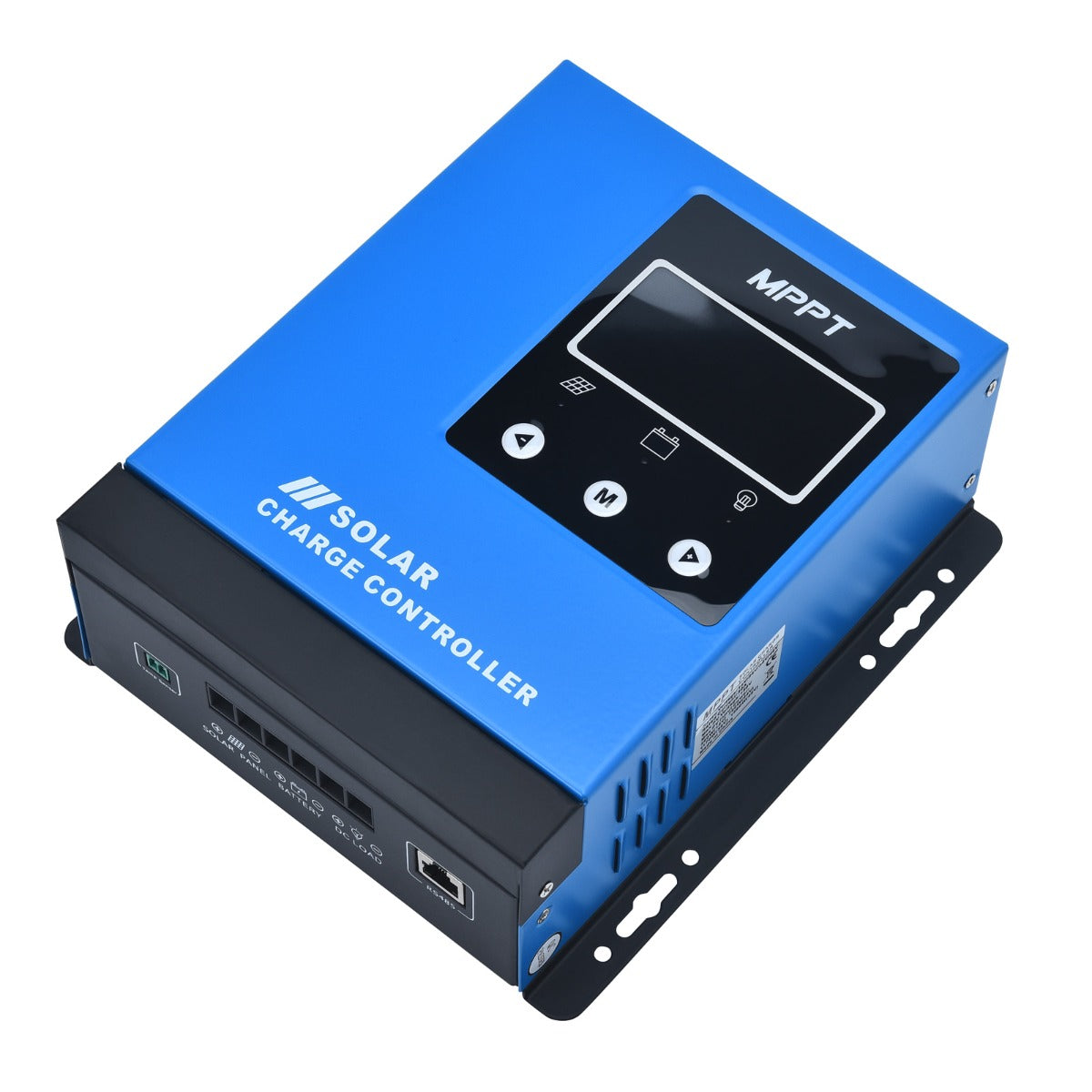

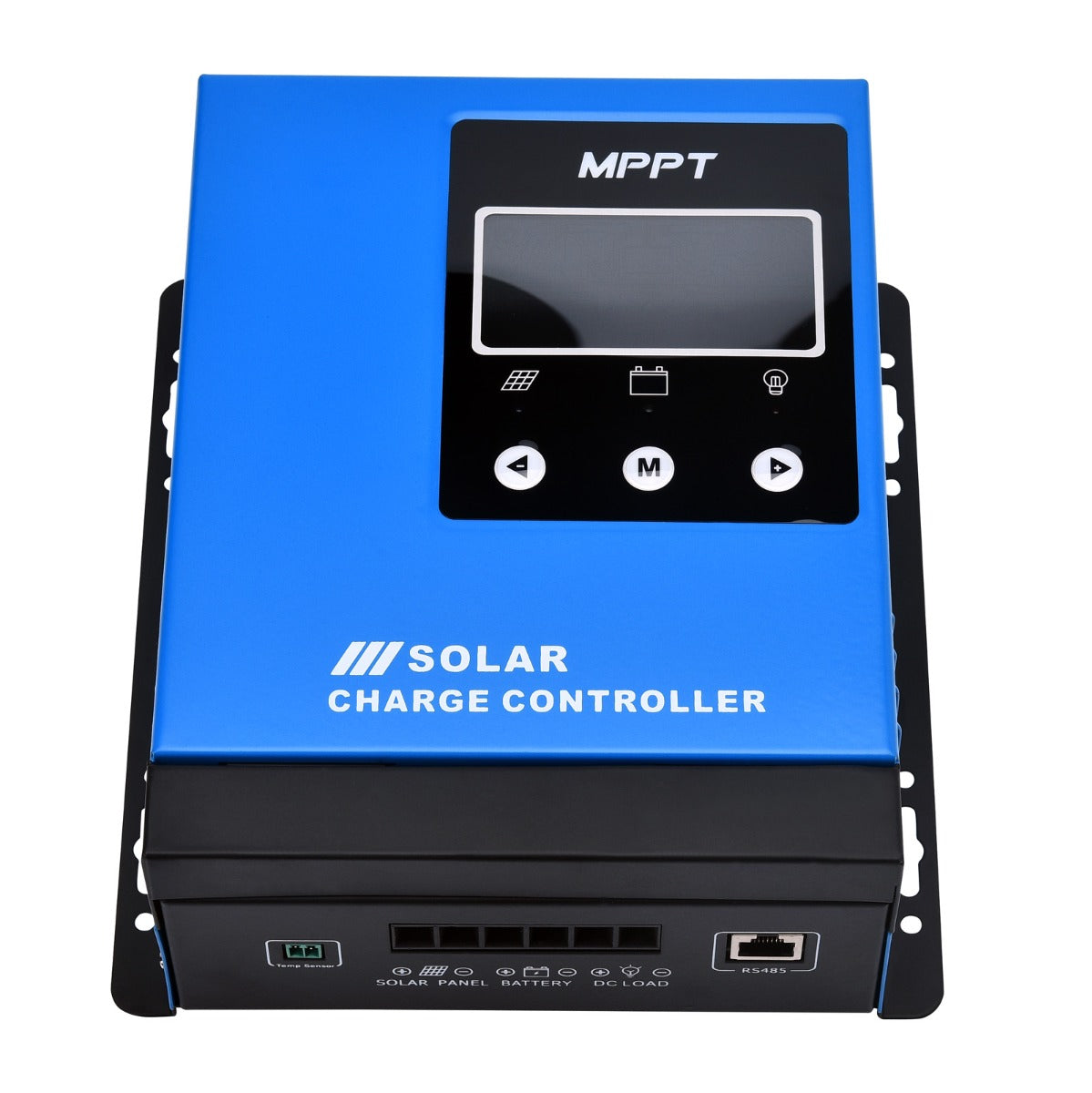

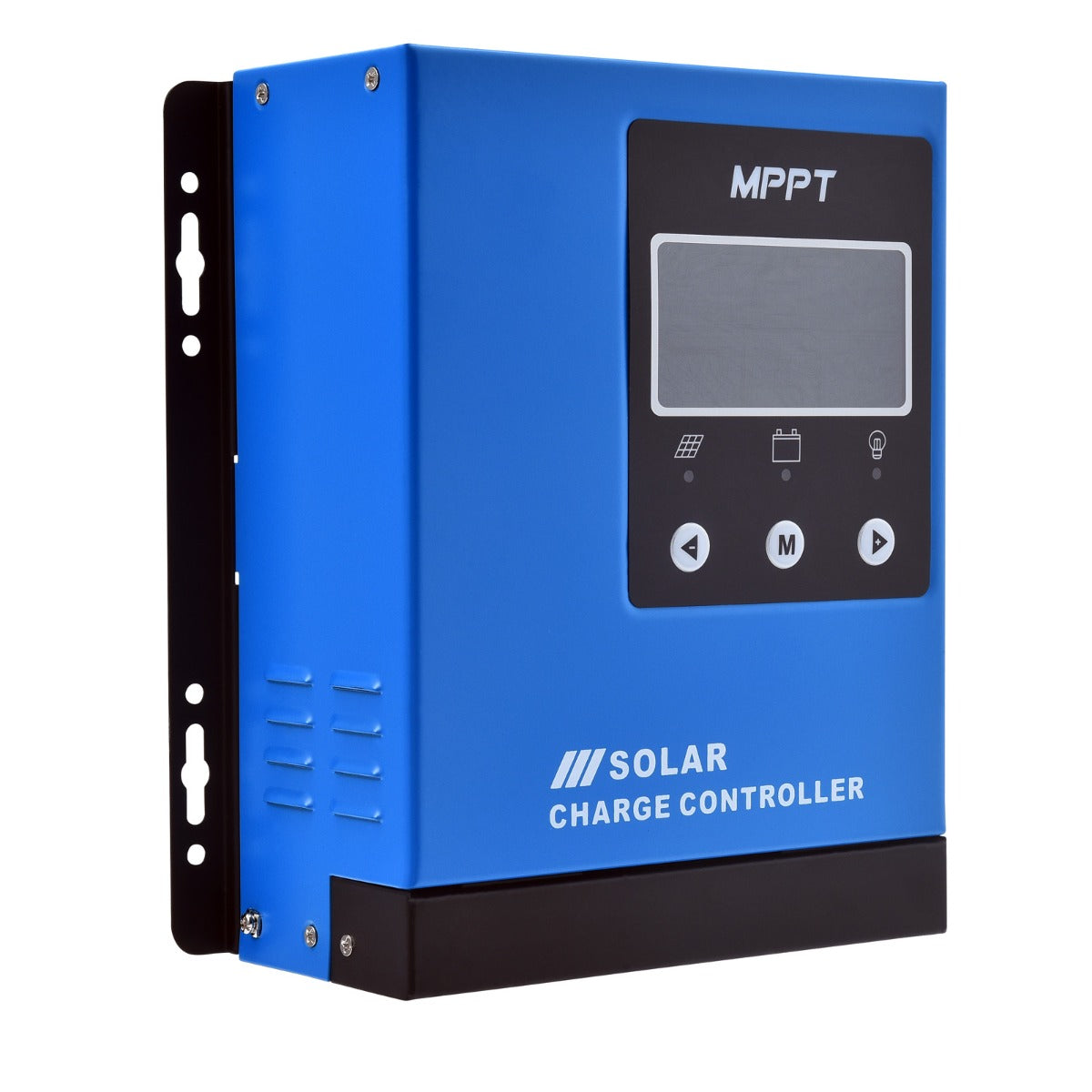

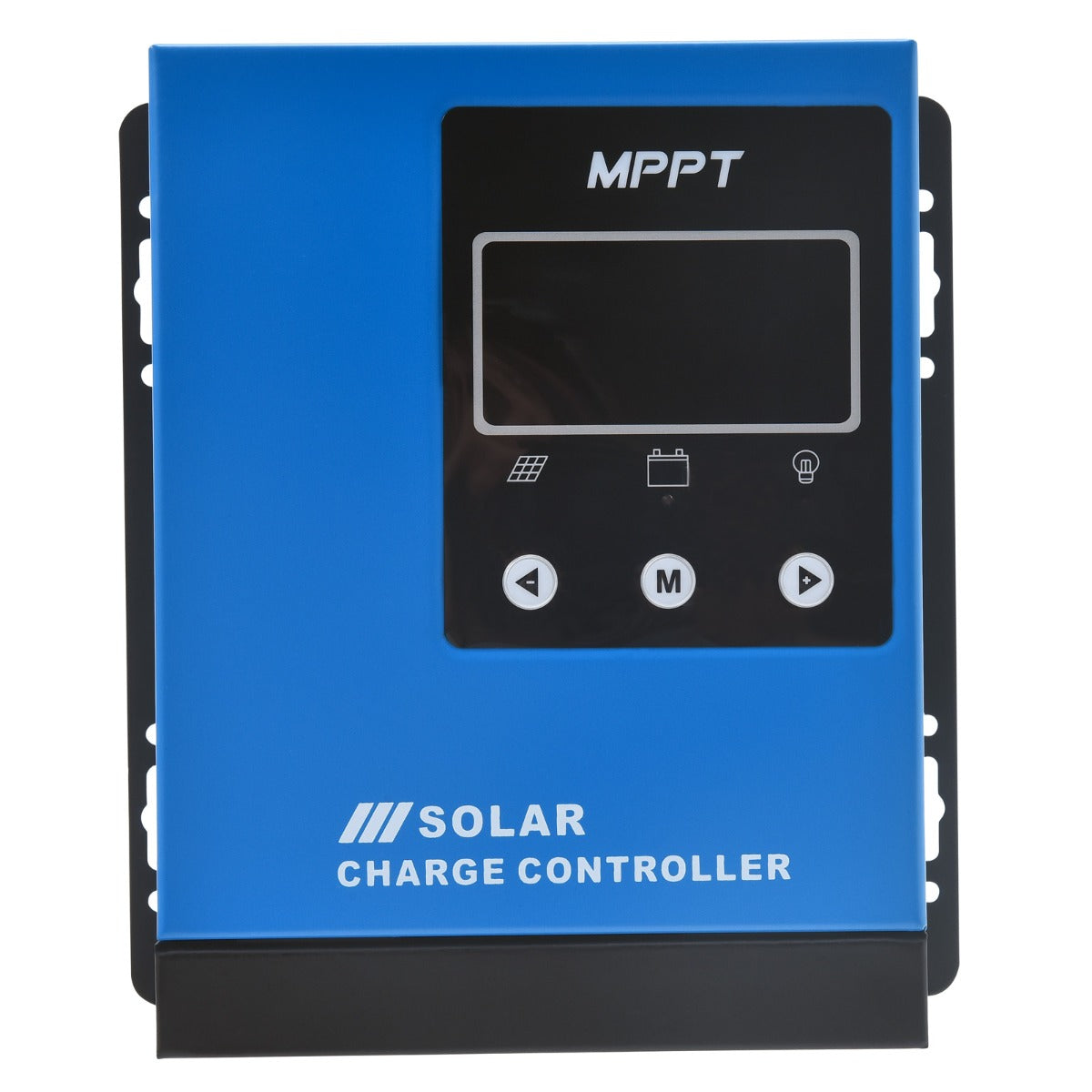

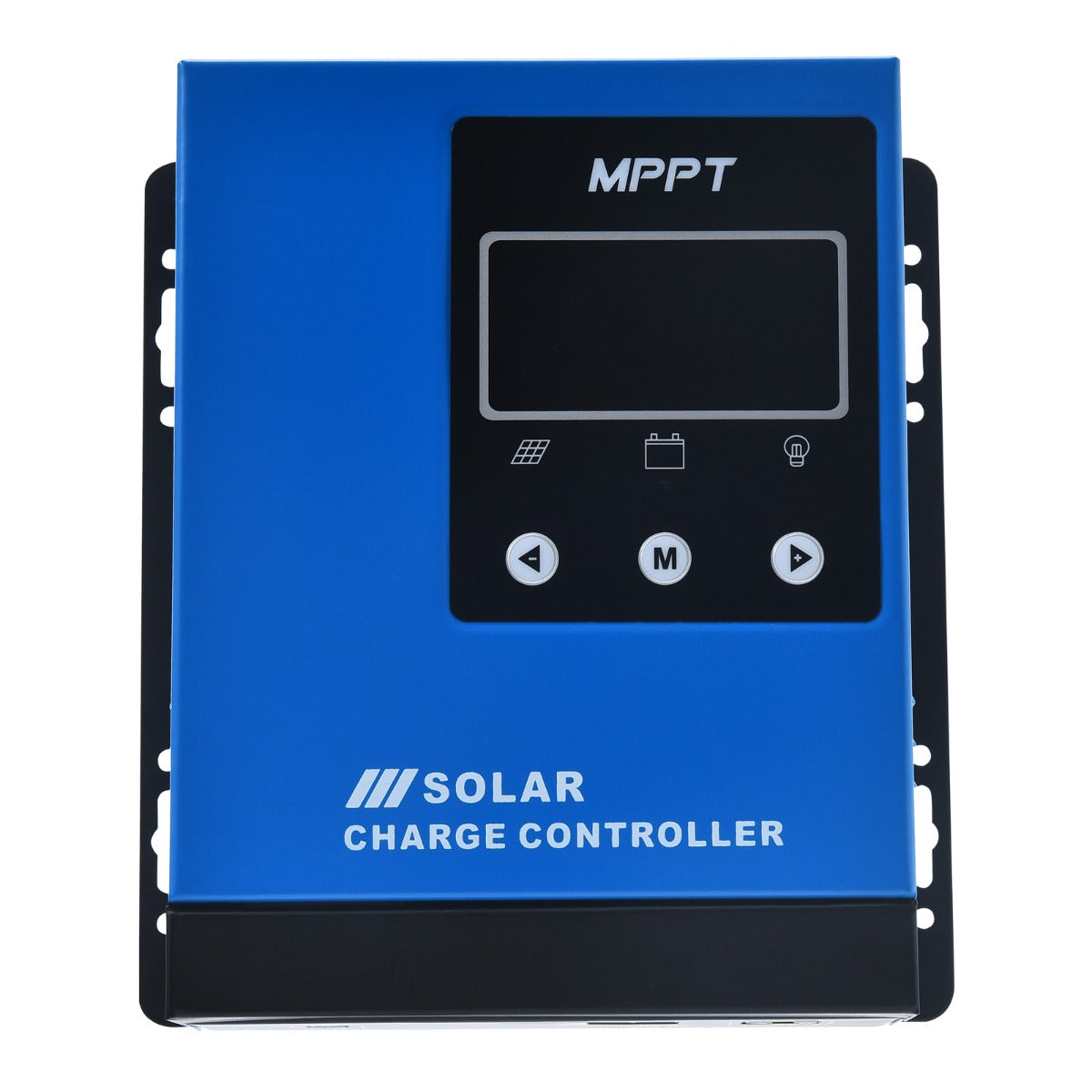

Our 30A MPPT Charge Controller With Bluetooth is the most efficient type of charge controller. With up to 99% tracking efficiency, it ensures maximum power point solar charging that gets more energy to your battery bank. Capable of automatically detecting 12V/24V/36V/48V lead acid battery systems, this crucial component is preset to also work With Gel, Flooded (wet cell), Sealed, and even Lithium batteries.
Features:
12V /24V/36V/48V Automatic System Recognition.
Embedding Imported Advanced Microchips - Higher Monitoring Accuracy & Better Battery Protection.
Advanced MPPT Technology With up to 99% high tracking efficiency, and Lithium-reawakening function.
4 Deep Cycle Battery Compatible: Gel, Flooded, Lithium-Iron Phosphate and Sealed/AGM.
Multiple Electronic Protection Features, including over-charging, over-discharging, reverse polarity, over-load, and over-temperature.

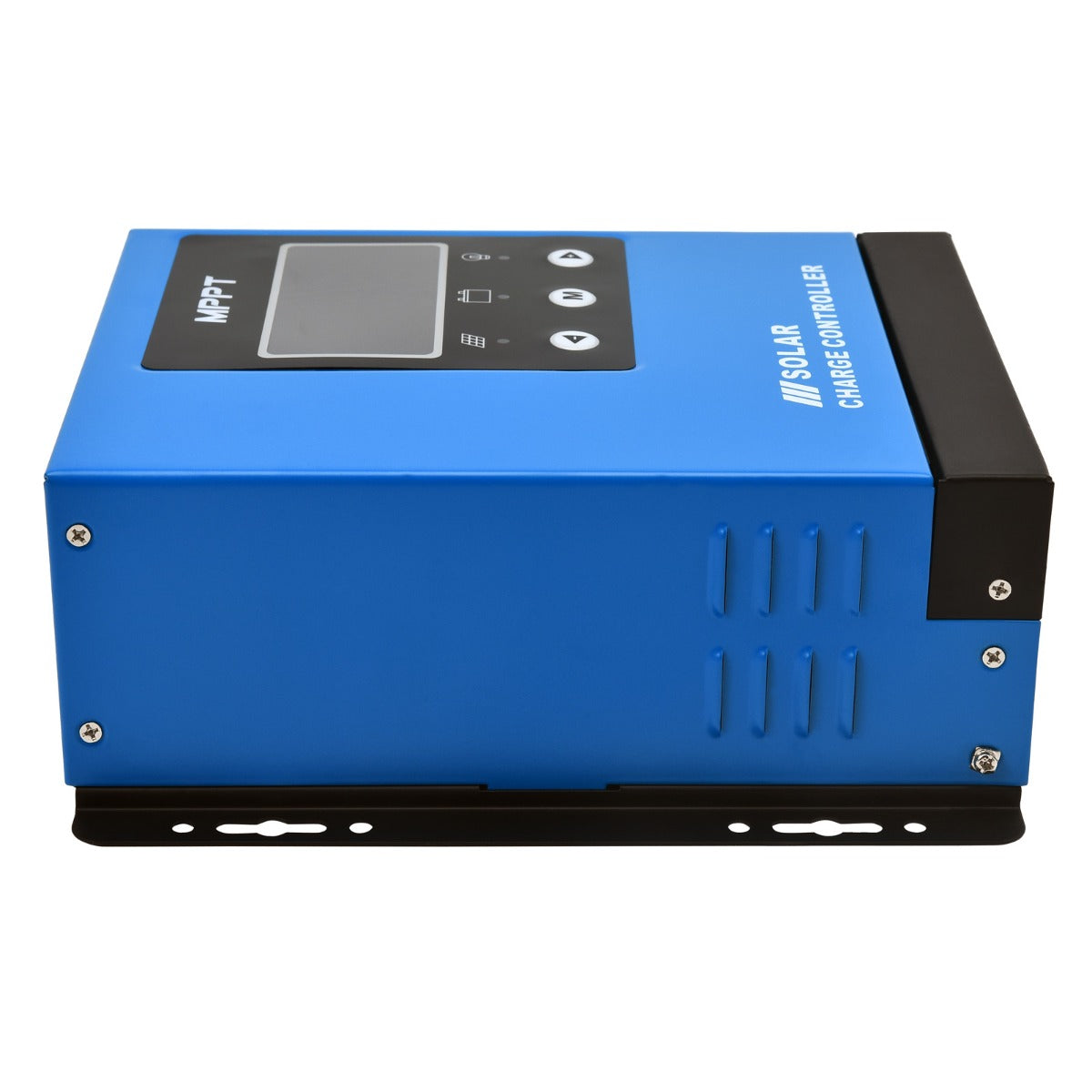

Smart Cooling Fan & Alloy Alluminum Heat Sink
To properly wire your solar charge controller, click here.
SPECIFICATIONS
| Rated Charge Current: | 30A |
| Minimum PV Voltage: | 20V/40V/60V/80V |
| System Rated Voltage: | 12V/24V/36V/48V Auto Recognized |
| Rated Discharge Current: | 20A |
| Own Consumption: | ≤35mA(48V) |
| MPPT Hhighest Accuracy: | 99% |
| Maximum Charging Efficiency: | 97% |
| Charging Control Mode: | Multi-stage(MPPT, Absorption, Float,Equalization,CV) |
| Load Control Mode: | Normal, light control, light and timing control, timing control, reverse light control |
| Light Control Point Voltage: | 5V/10V/15V/20V |
| Operating Temperature: | -20℃~+55℃ |
| Storage Temperature: | -30℃~+80℃ |
| Grounded Type: | Positive grounded |

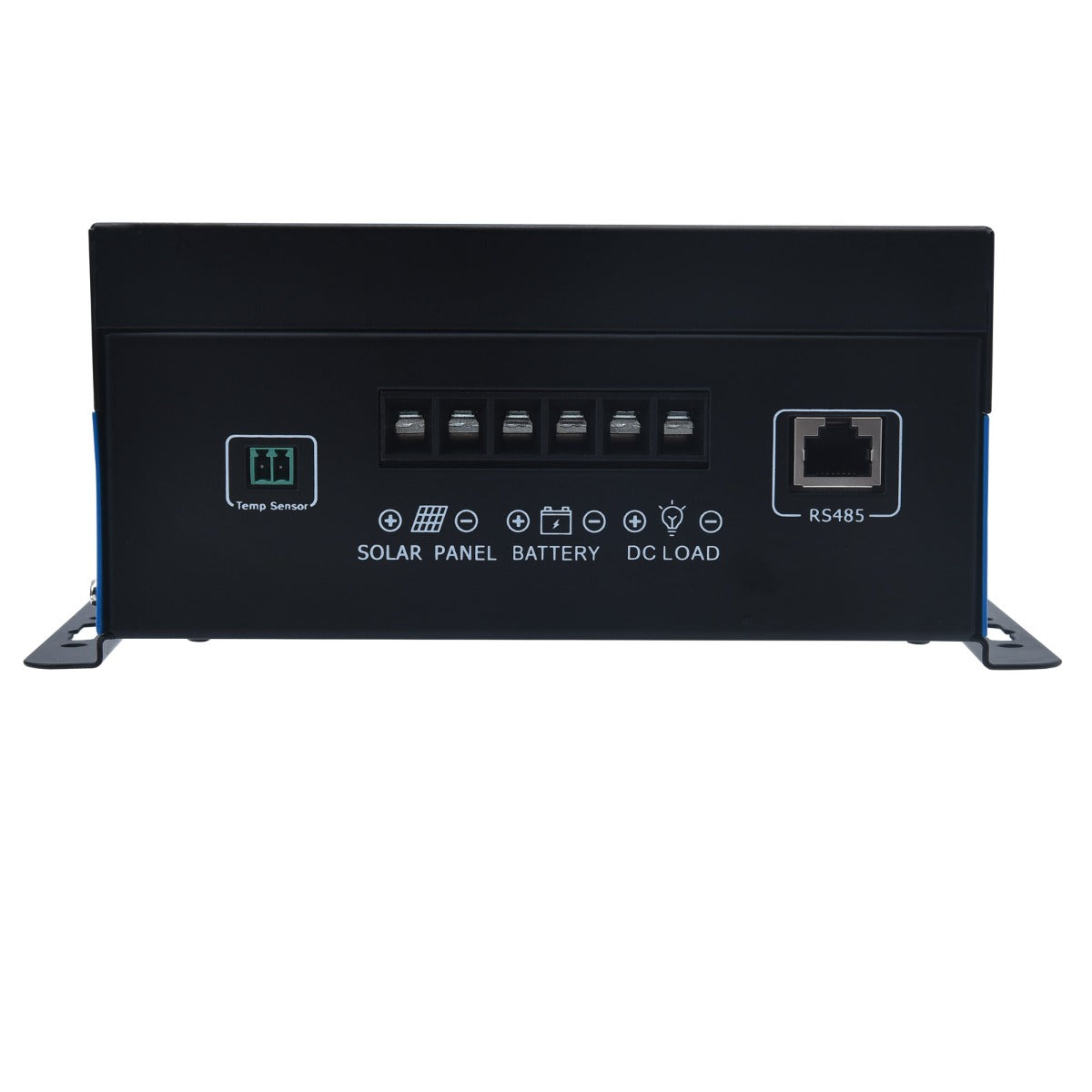

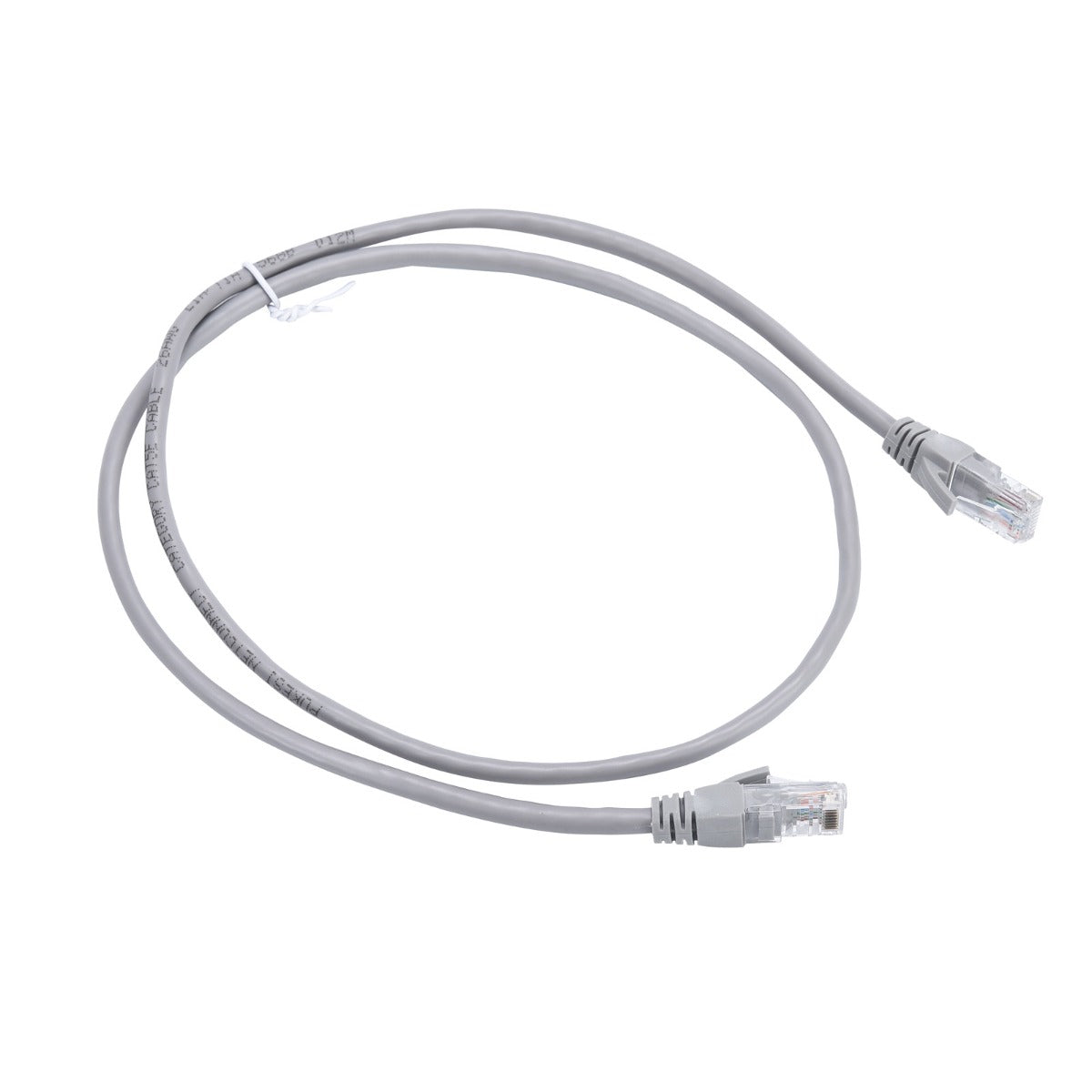

| Communication Mode: | RS485,RJ45 port |
DIMENSIONS & WEIGHT
| Dimensions: | 222 x 200 x 85mm |
| Weight: | 2500g |
WHAT'S IN THE BOX
| 1 x | MPPT Controller |
SKU:
| scm-mpk40-30a-bt |
