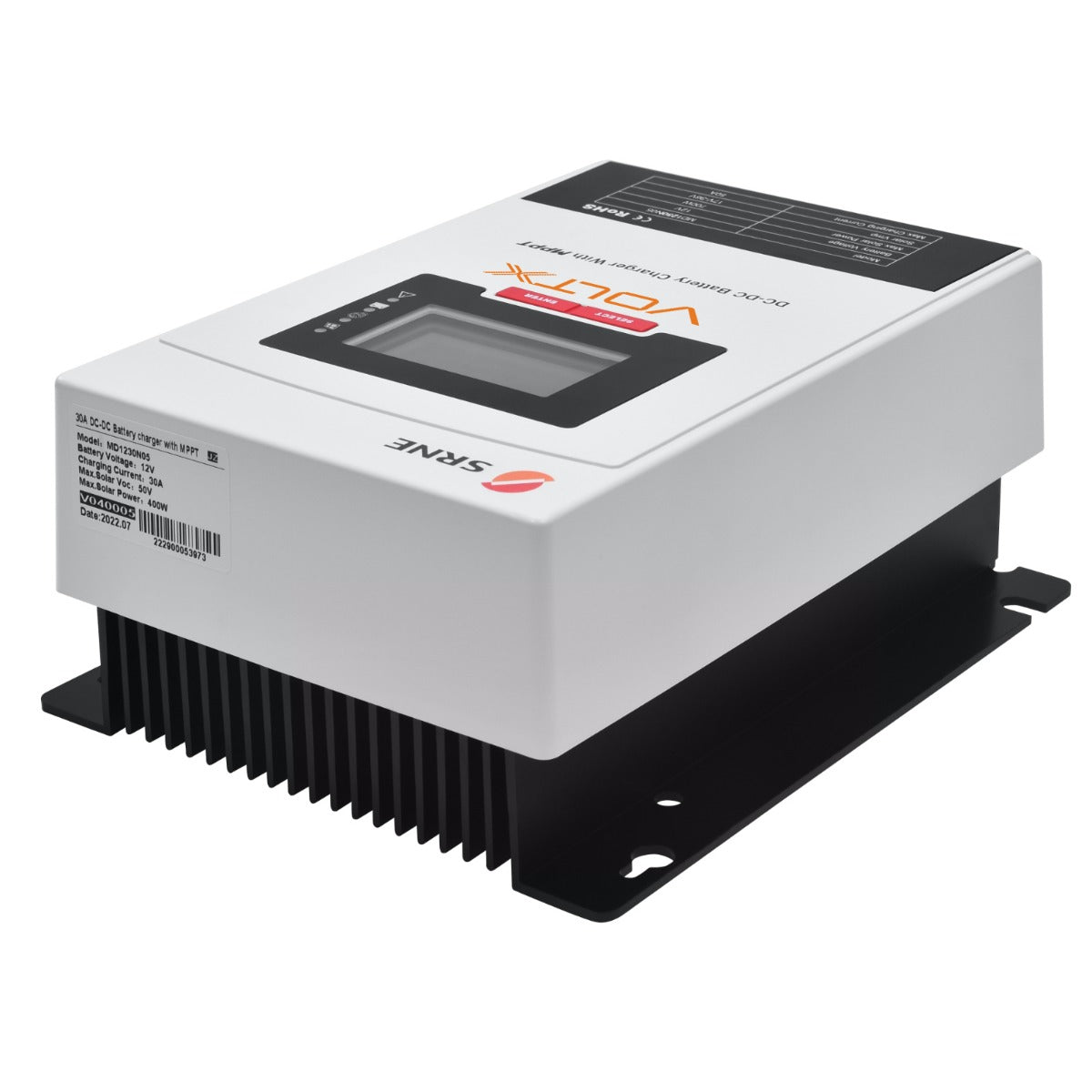

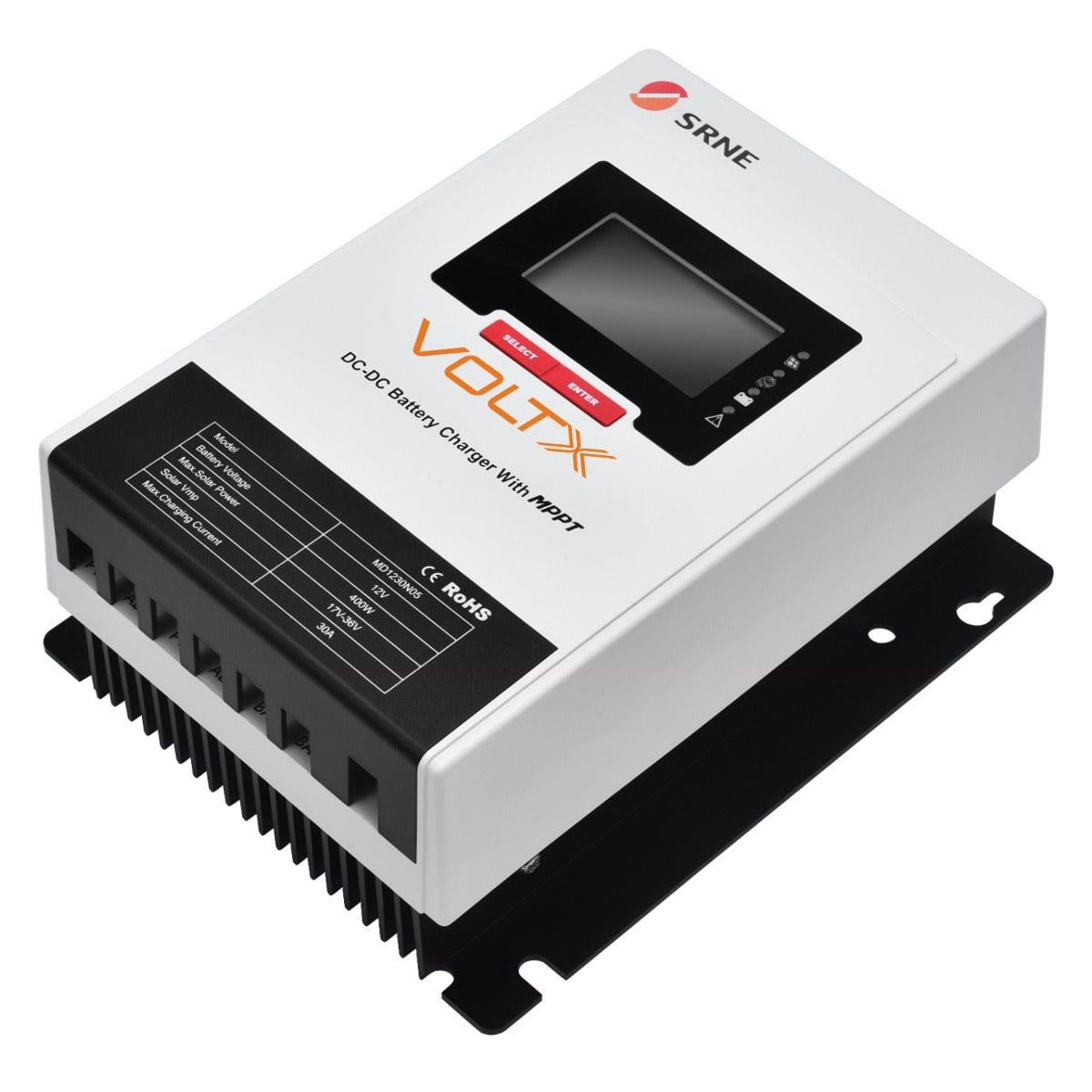

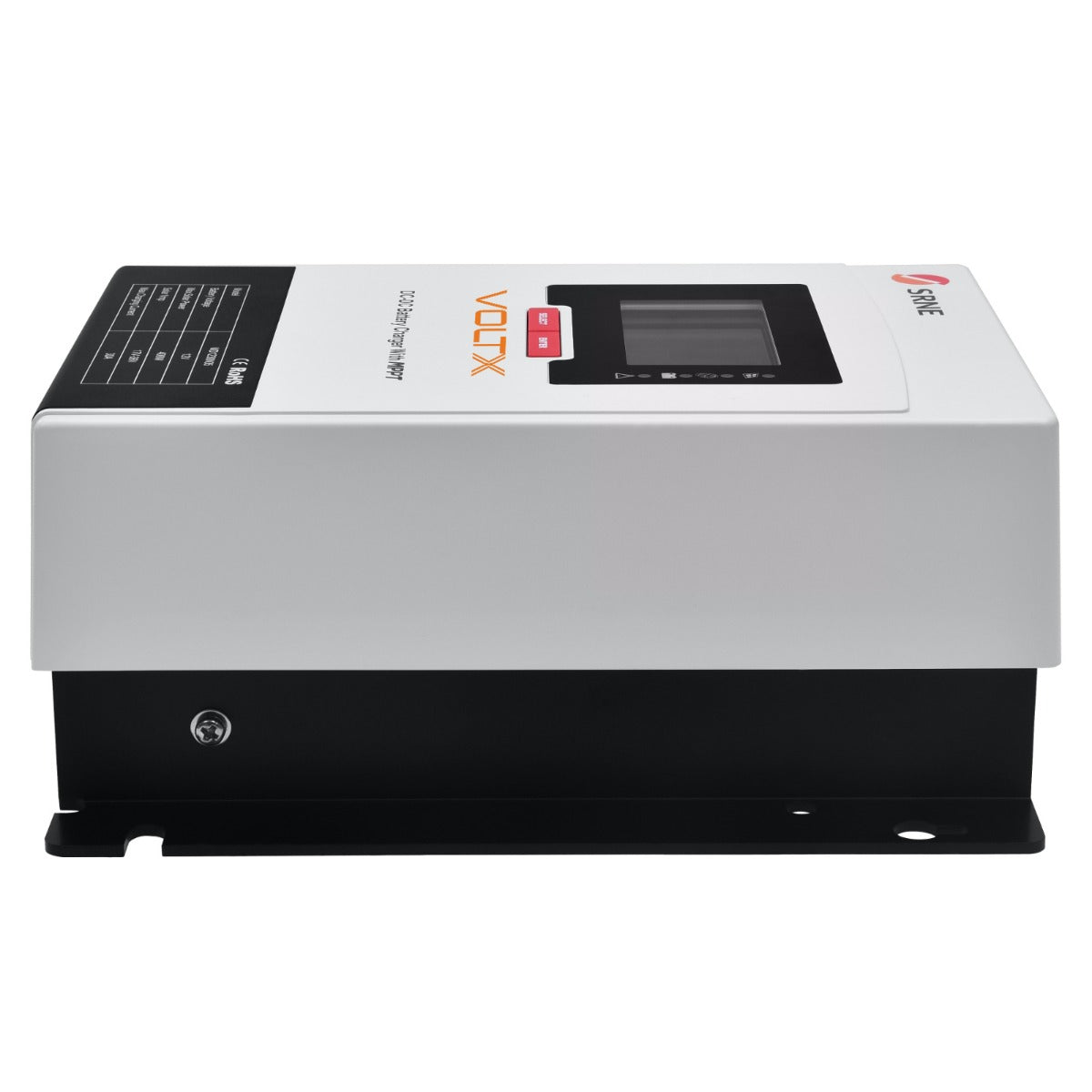

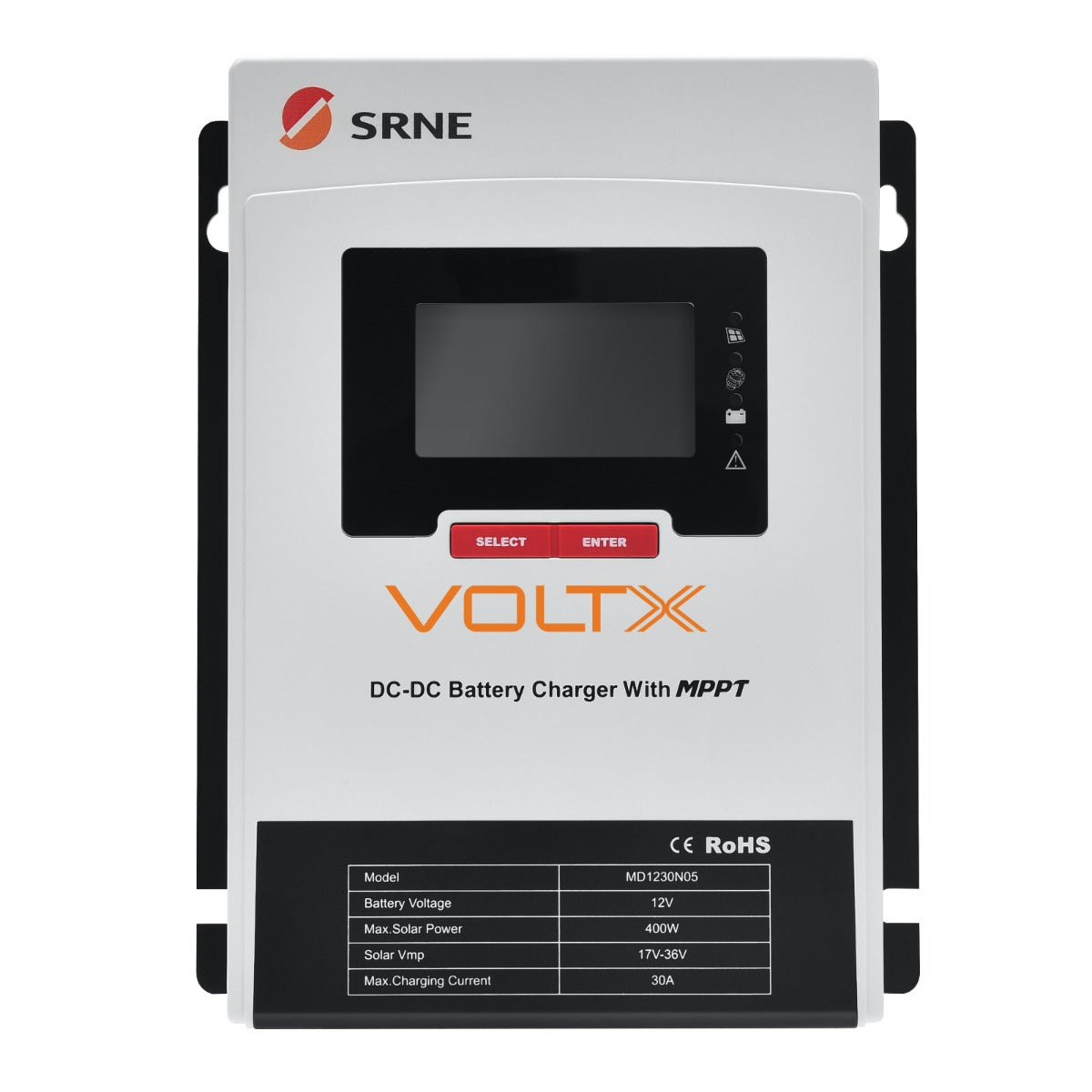

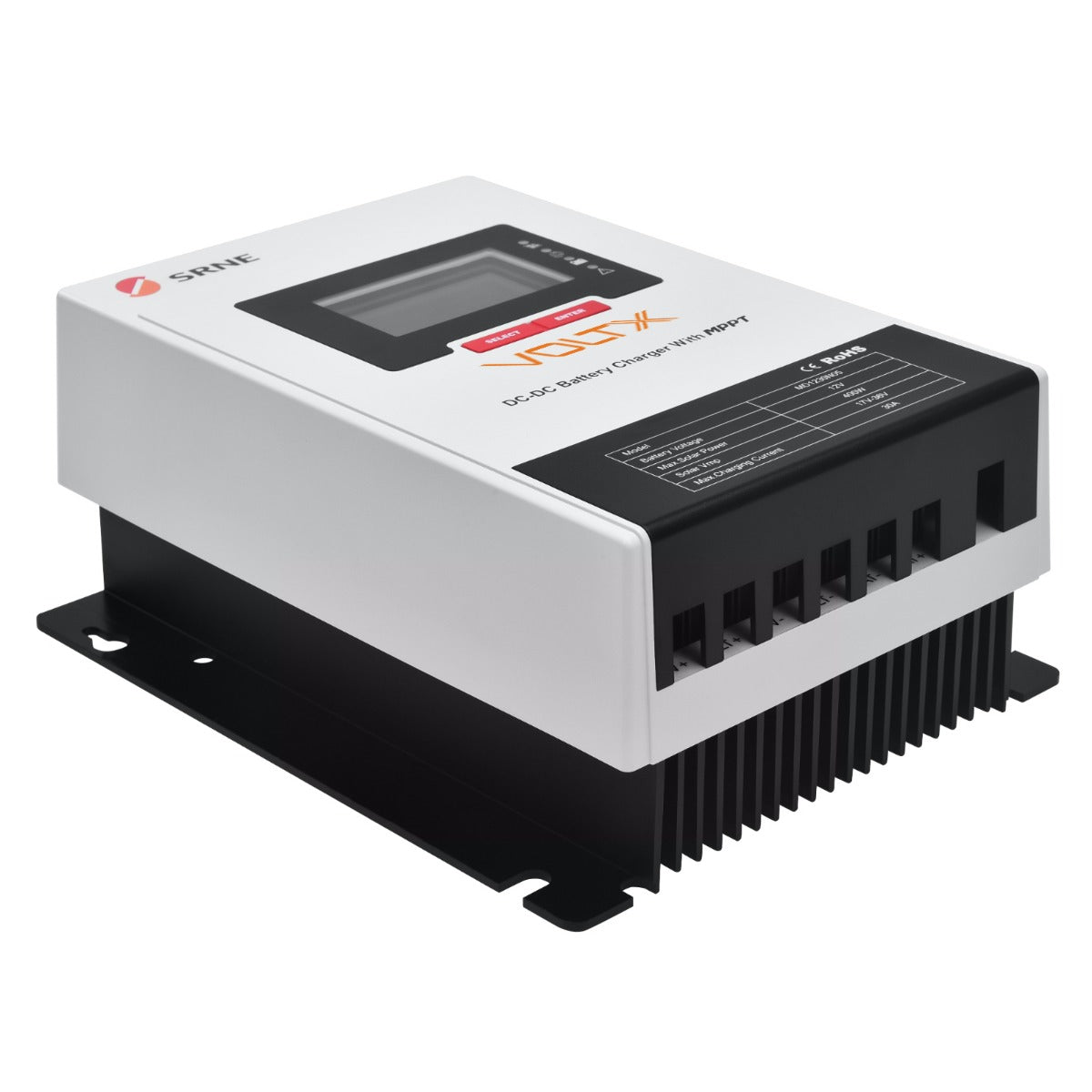

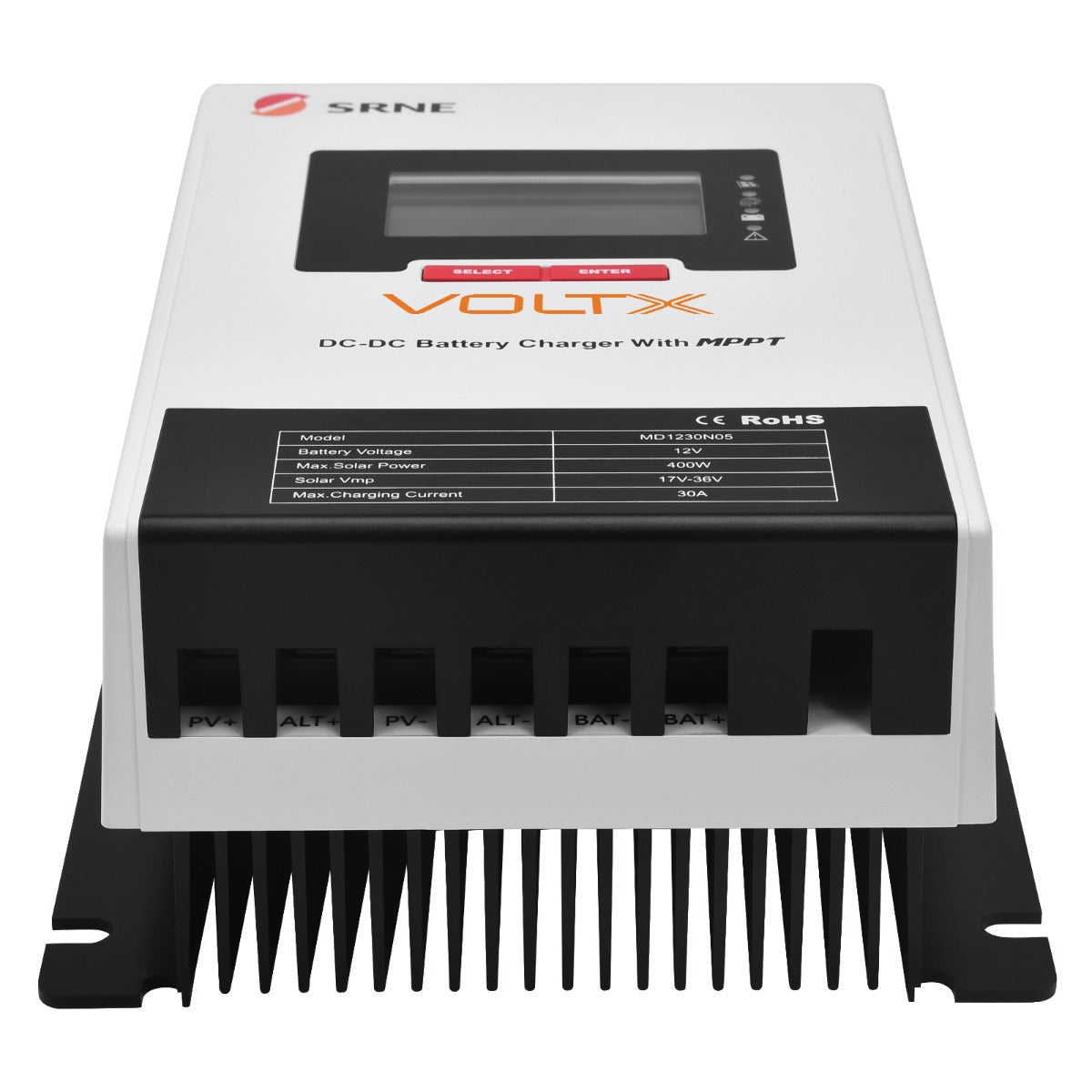

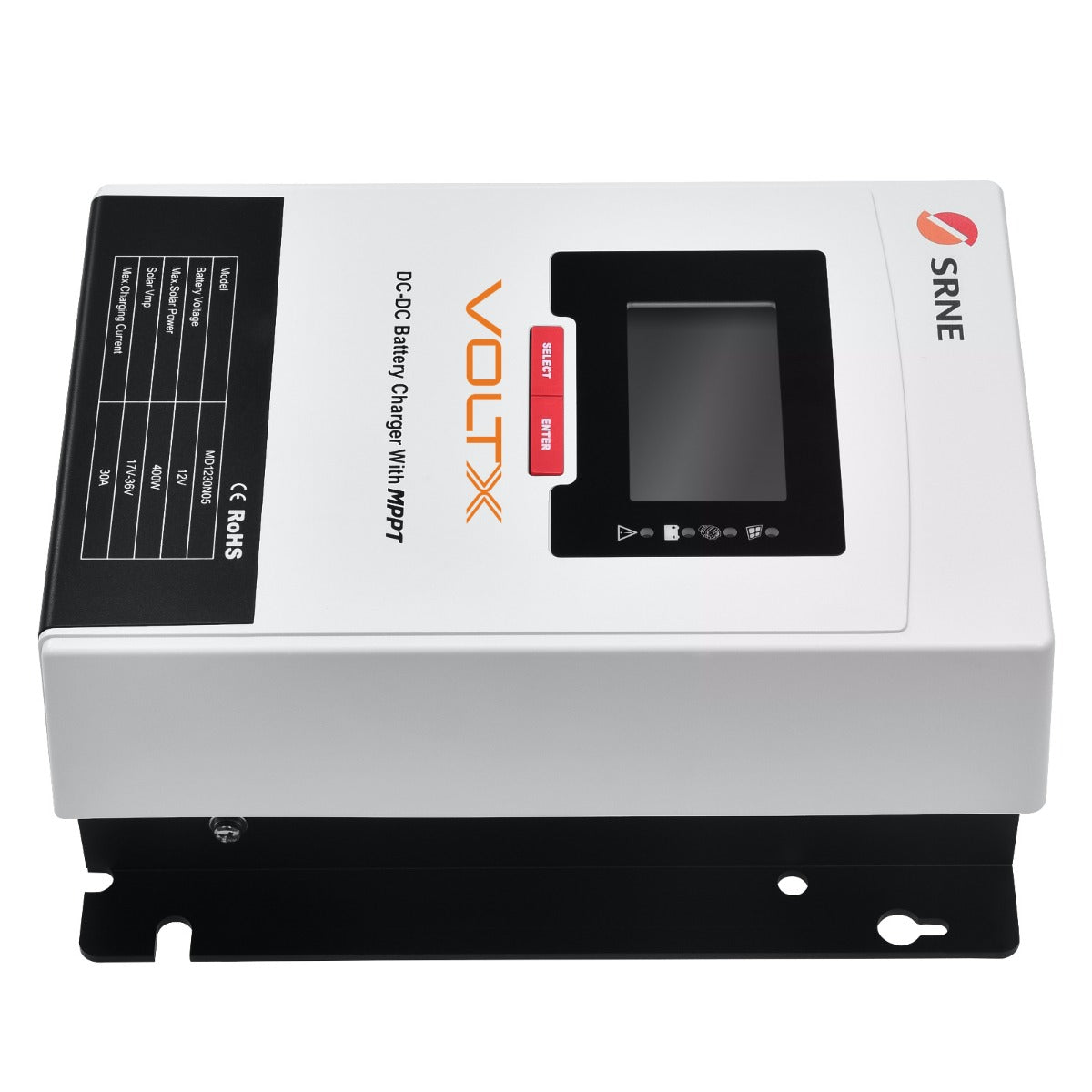

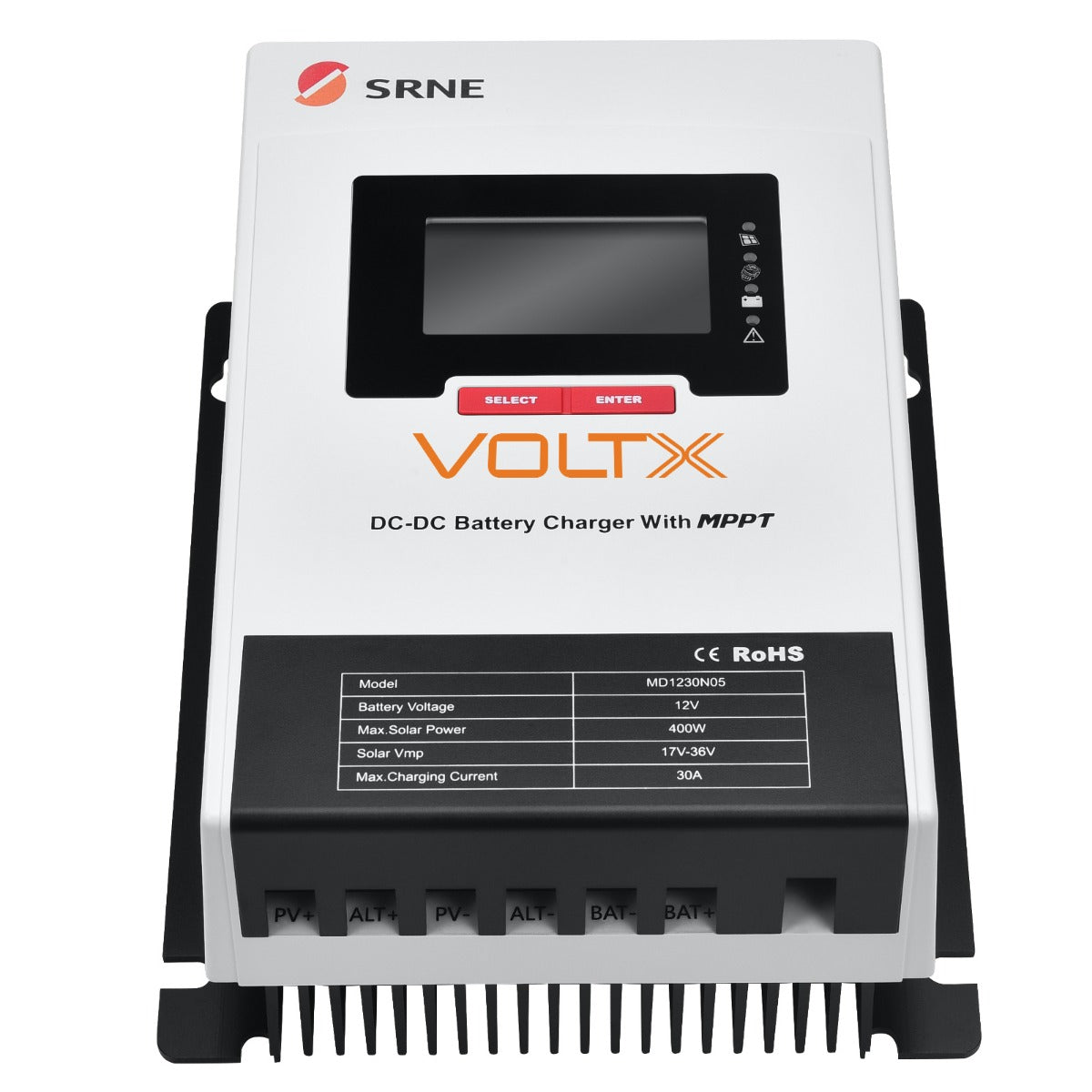

VoltX SRNE 12V 30A DC-DC MPPT LiFePO4 Battery Charger
Couldn't load pickup availability
60 Days
Return
36 Months
Warranty
100% Secured
Payment & Data
Merry Savings Xmas Blow-Out
PLUS Get 20% off EVERYTHING
Pay only $232.00
Hurry! Promo ends 25/12/24 11:59 PM AEDT.
Use Code:
MERRY20
Selling fast. Hurry and order now to save 60%
PRODUCT HIGHLIGHTS
- Dual Battery
- Dual Input - Alternator + Solar
- Integrated overheating, over-current, short circuit, and open circuit protection

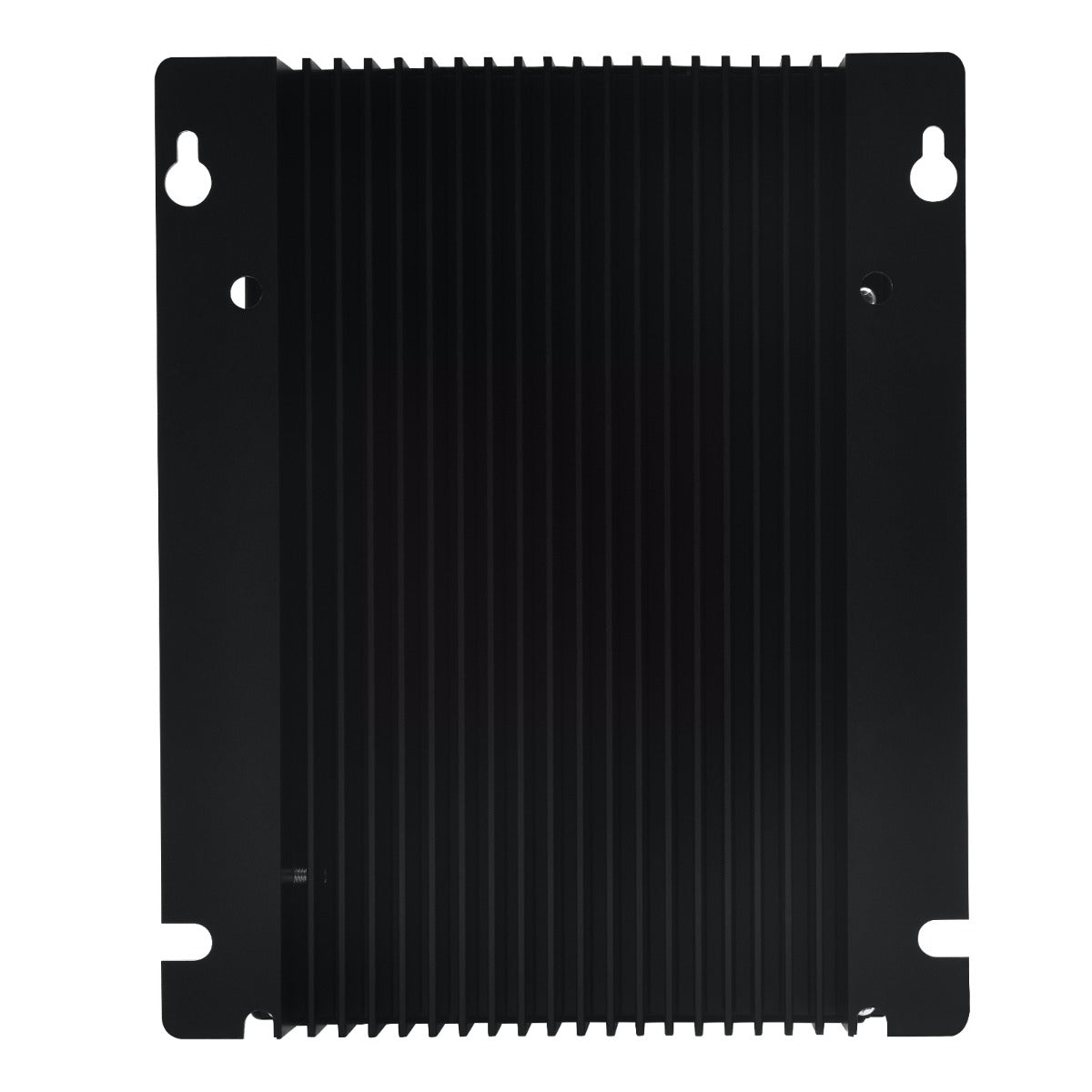

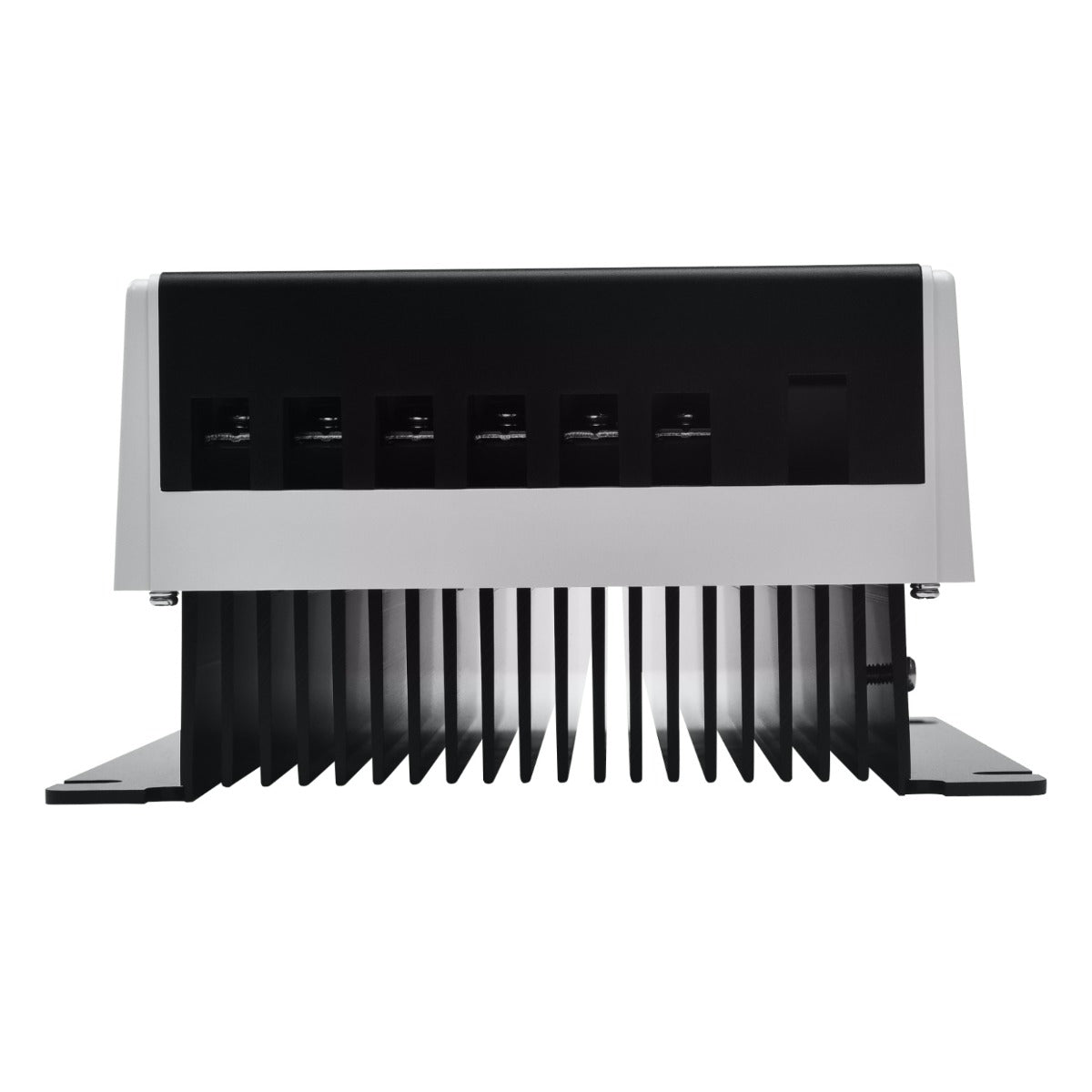

- High quality aluminium radiator for reliable operation under various working conditions
Every solar power system needs an equally efficient regulator, like this SRNE VOLTX 12V 30A MPPT DC to DC Lithium Battery Charger. Designed based on an advanced multi-phase synchronous rectifier technology and MPPT control algorithm, it delivers rapid response speed, high reliability, and high industrialised standard.
This solar charge controller stands out with an impressive conversion efficiency under any charging power and the ability to track the maximum power point of solar panels to obtain a sufficient amount of energy.
It's perfect for charging an auxiliary battery in a dual battery system with an improved overall charging efficiency and light energy utilisation plus, can also be used in DC-DC control circuits for voltage & current regulation.
On top of these, you also win in versatility here as it has 4 charging phases suitable for charging lead-acid batteries and 3 generator charging modes for recharging through a vehicle generator. Easy to monitor and equipped with built-in protective features, this is a must-have for anyone going solar!
SPECIFICATIONS
| Model: | MD1230N05 |
| Backup Battery System Voltage: | 12V |
| Backup Battery Voltage Range: | 9~16V DC |
| Backup Battery Type: | Sealed Battery, Gel Battery, Vented Battery, Lithium Iron Phosphate Battery, User-defined Battery |
| Rated Charging Current: | 30A |
| Maximum PV Input Voltage: | 55V DC |
| Max. power point voltage range: | 17~36V |
| Maximum PV Input Current: | 27A |
| Solar Panel Charging Mode: | Buck MPPT |
| MPPT Efficiency: | ＞99% |
| PV input power is recommended: | 400W |
| Generator (Starter Battery) System Voltage: | 12/24V |
| Starter Battery Type: | Lead-acid Battery |
| Max. Generator Input Voltage: | 32V DC |
| Maximum Generator Input Current | 35A |
| Conventional Generator: | 13.2～16V/26.4~32V DC |
| Intelligent (Euro 6 Standard) Generator: | 12～16V/24~32V DC |
| Generator charging mode: | Buck, Boost, Buck-Boost |
| 12V Backup Battery: | 400W |
| Charging Voltage: | 13.8V |
| Charging Current: | ≤15A |
| No-load loss: | <0.6W |
| Max. Charging Conversion Efficiency: | 98% |
| Communication method: | TTL |
| Operating temperature: | －35℃～65℃ |
| Altitude: | ≤3000m |
| Waterproof level: | IP32 |
| Warranty: | 3 Years |
DIMENSIONS & WEIGHT
| Dimensions: | 221 x 175.8 x 82.4mm |

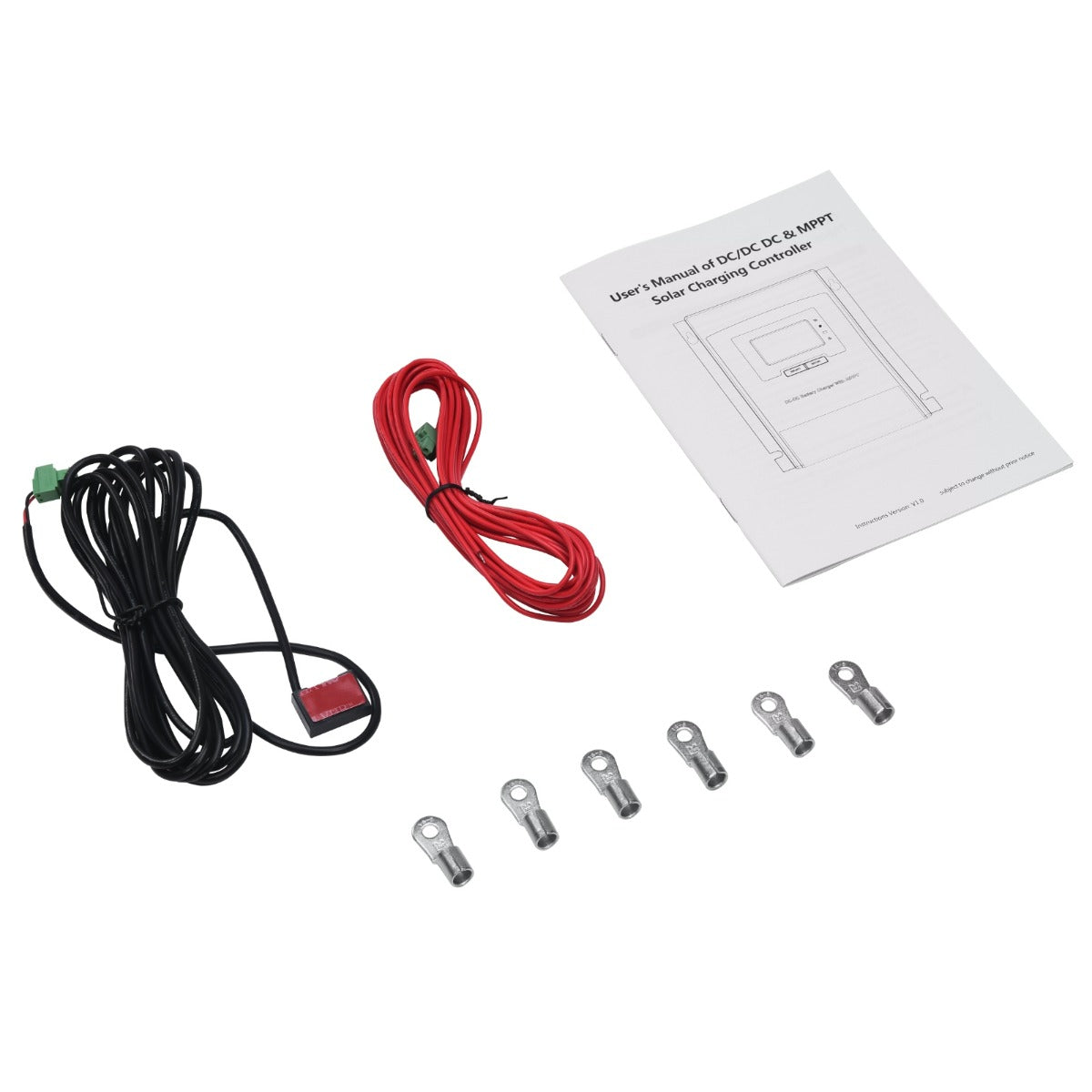

WHAT'S IN THE BOX
| 1 x | DC to DC Lithium Battery Charger |
