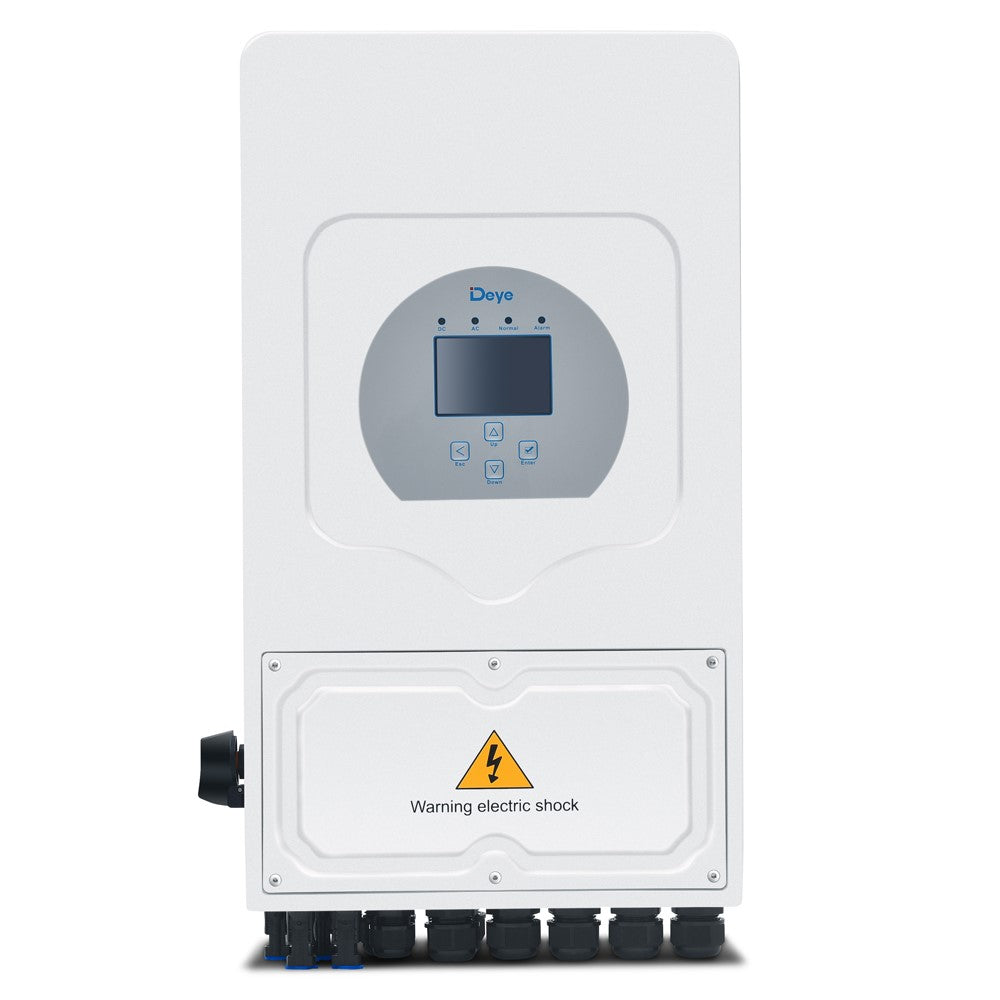

VoltX Deye 48V 8KW Hybrid Solar Inverter MPPT Charger Regulator Low Voltage
Couldn't load pickup availability
60 Days
Return
60 Months
Warranty
100% Secured
Payment & Data
Year-End Flash Sale
Get 20% OFF + FREE VoltX 5000mAh Power Bank for every single-transaction purchase over $500!
Pay only $3,119.20
Hurry! Promo ends 31/12/24 11:59 PM AEDT.
Use Code:
YEAREND20
PRODUCT HIGHLIGHTS
- Colorful touch LCD, IP65
- 6 time periods for battery charging/discharging
- Max.16pcs parallel
- DC couple and AC couple to retrofit existing solar system
- Support storing energy from diesel generator
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size and make the most of your solar system.
An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.
Stop wasting money on inefficient, overpriced inverters. Invest in one of the most versatile and effective solar power management systems out there today. Our hybrid inverters are next-level and truly worth of your purchase.
Features:
- Colorful touch LCD, IP65
- 6 time periods for battery charging/discharging
- Max.16pcs parallel
- DC couple and AC couple to retrofit existing solar system
- Support storing energy from diesel generator
- 48V low voltage battery, safe and reliable
- Unique Smart Load application and Grid peak shaving function
- 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
SPECIFICATIONS
| Brand: | Deye |
| Installation Style: | Wall-mounted |
| Operating Temperature Range: | -40~60℃, >45℃ derating |
| Cooling: | Nature Cooling |
| Noise level: | <30 dB |
| Communication with BMS： | RS485; CAN |
| Protection Degree: | IP65 |
| Warranty: | 5 Years |
BATTERY INPUT DATA
| Battery Type: | Lead-acid or Lithium-ion |
| Battery Voltage Range: | 40~60V |
| Max. Charging Current: | 190A |
| Max. Discharging Current: | 190A |
| Charging Curve: | 3 Stages / Equalization |
| External Temperature Sensor: | Yes |
| Charging Strategy for Li-Ion Battery: | Self-adaption to BMS |
PV STRING INPUT DATA
| Max. DC Input Power: | 10400W |
| Rated PV Input Voltage: | 370V (125~500) |
| Start-up Voltage: | 125V |
| MPPT Voltage Range: | 150-425V |
| Full Load DC Voltage Range： | 200-425 |
| PV Input Current: | 26+26A |
| Max. PV ISC: | 34+34A |
| Number of MPPT / Strings per MPPT: | 2/1+1 |
AC OUTPUT DATA
| Rated AC Output and UPS Power (VA): | 8000 |
| Max. AC Output Power: | 8000W |
| AC Output Rated Current: | 34.8A |
| Max. AC Current: | 34.8A |
| Max. Continuous AC Passthrough: | 50A |
| Peak Power (off grid): | 2 time of rated power, 10 S |
| Power Factor: | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage: | 50Hz/45Hz-55Hz; L/N/PE 230V/ 195.5V-253V, 240V/204V-264V |
| Grid Type: | Single Phase |
| DC injection current (mA): | THD<3% (Linear load<1.5%) |
| Efficiency： | Max. Efficiency：97.60% Euro Efficiency：97.00% MPPT Efficiency: 99.90% |
| Protection: | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection |
| Output Over Voltage Protection: | DC Type II/AC Type III |
CERTIFICATIONS & STANDARDS
| Grid Regulation: | AS/NZS 4777.2 |
| Safety EMC / Standard: | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Standard: | IEC/EN 62109-2 |
DIMENSIONS & WEIGHT
| Weight： | 28.35kg |
| Size: | 330(W) x 580(H) x237(D)mm |
WHAT'S IN THE BOX
| 1x | Hybrid Inverter |
| 1x | Wall Mounting Bracket |
| 1x | Set of Stainless Steel Anti-collision Bolt M6 x60 x4 |
| 1x | Set of Stainless Steel Mounting Screws M4 x12 x2 |

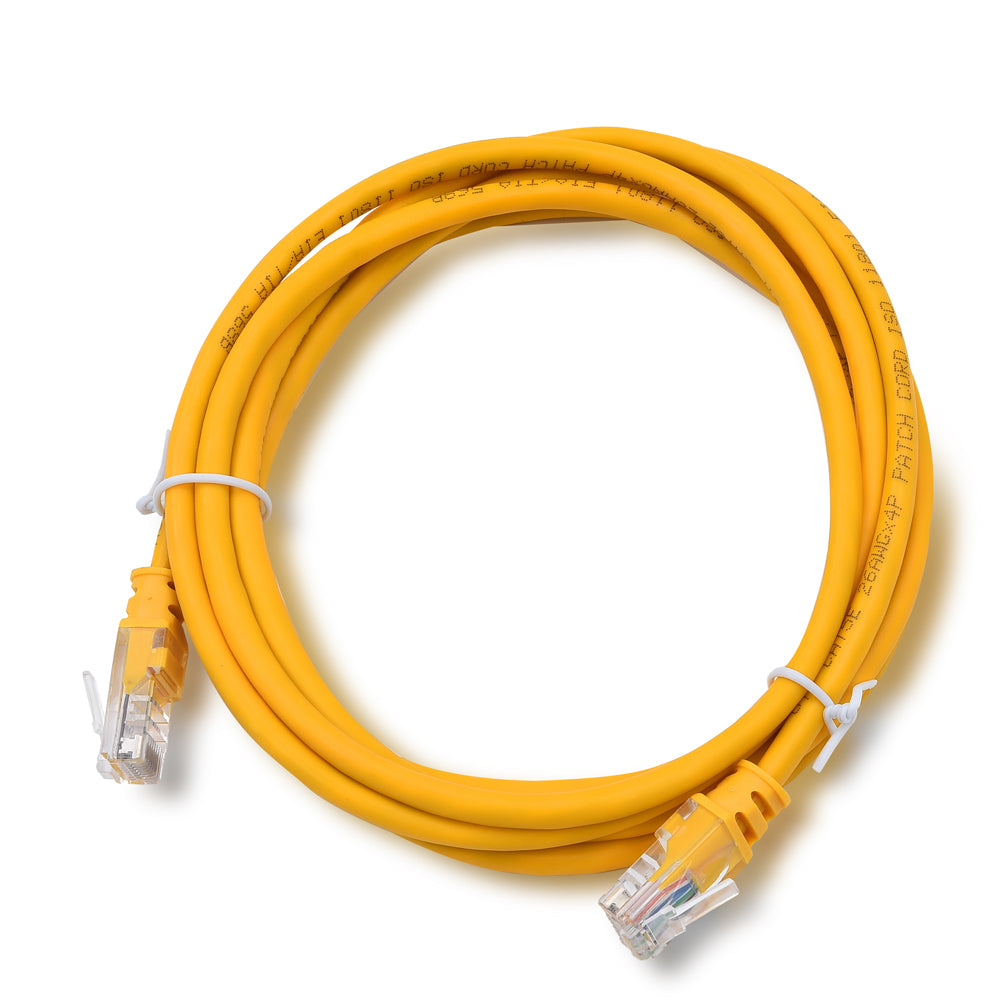

| 1x | Parallel Communication Cable |
| 1x | L-type Hexagon Wrench |
| 1x | Wi-Fi Plug |

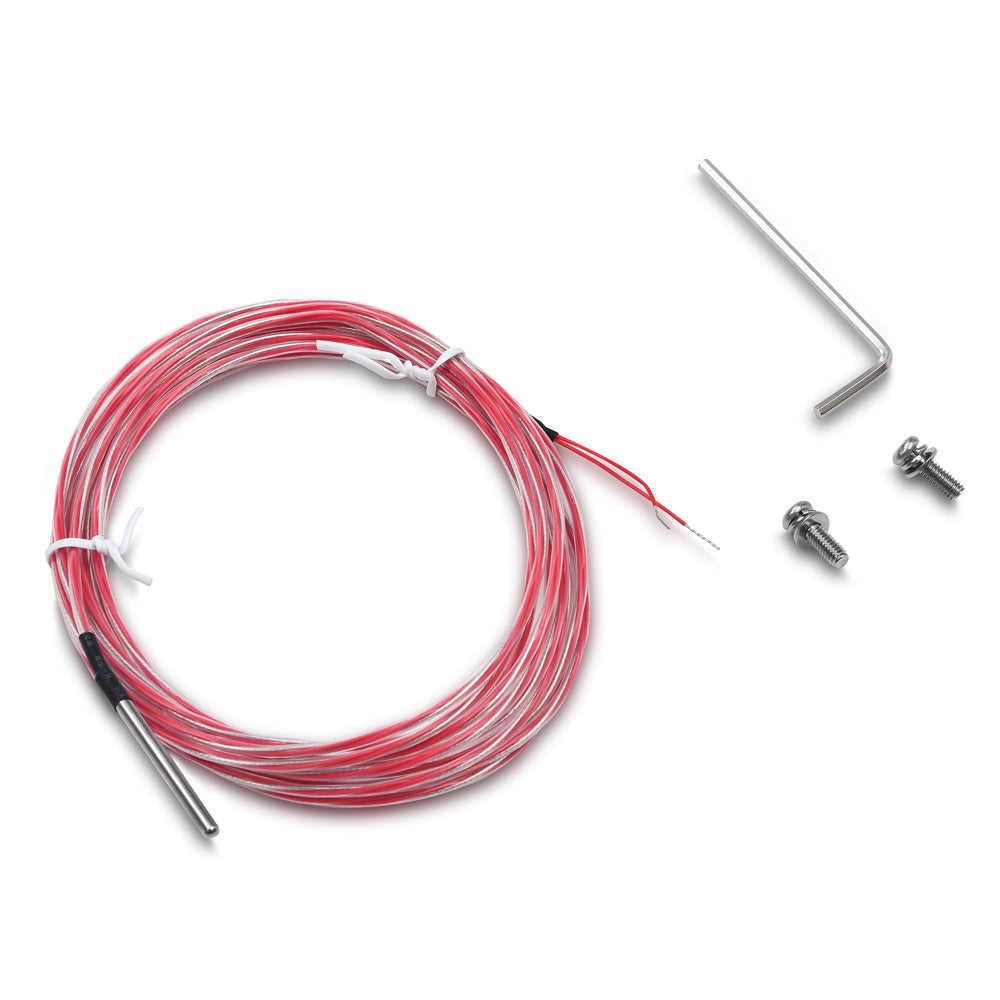

| 1x | Battery Temperature Sensor |

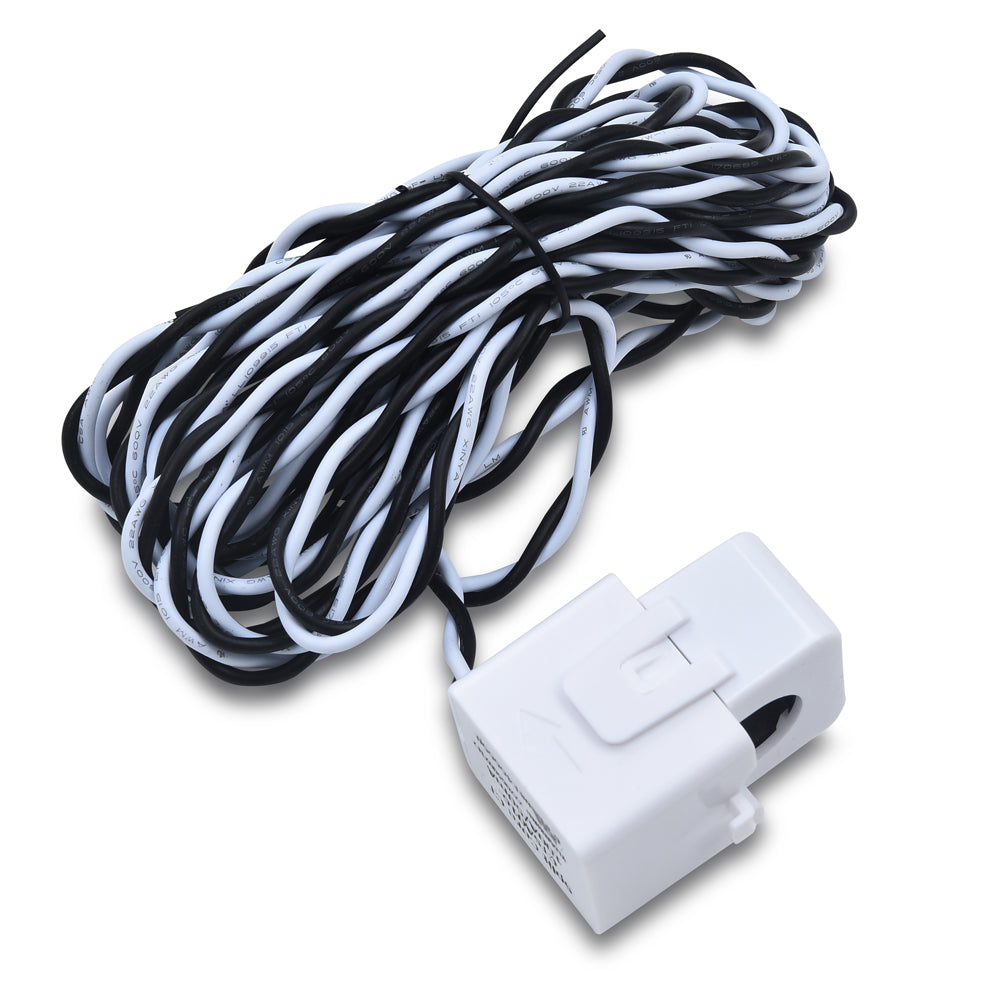

| 1x | Sensor Clamp |
| 1x | User Manual |
SKU:
| dy-ivt-8k-sg05lp1 |
- Your item will be shipped next business day.
- On average, items are delivered between 3 to 7 business days following shipping around Australia.
- Check out our shipping and delivery calculator above for more information.
- We can't ship products to PO Boxes, Parcel Lockers or Post Offices. We need to have an actual address to proceed with the order.
- Outbax offers a 60-month warranty on our Deye Hybrid Solar Inverters from the date of purchase unless otherwise stated. Outbax warrants its products against defects in materials and/or workmanship. This is further to your rights under Australian Consumer Law.
- Outbax products come with a 60-day money-back guarantee. You must contact us within 60 days of receiving the product and it must be returned in its original condition.
