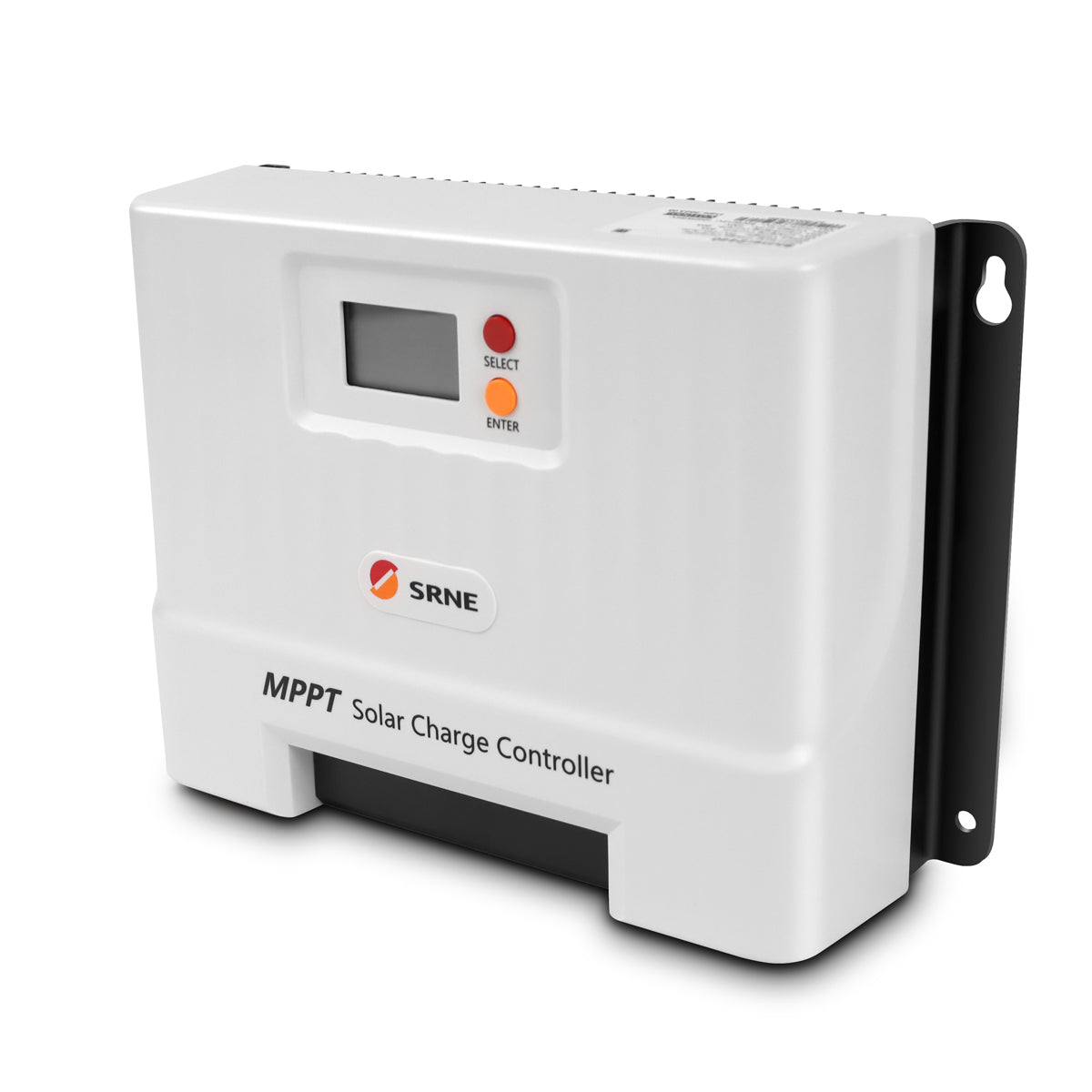

VoltX SRNE 12V/24V 40A MPPT Solar Charge Controller
Couldn't load pickup availability
60 Days
Return
12 Months
Warranty
100% Secured
Payment & Data
Better Than Black Friday Sale
PLUS a further 22% off
Pay only $124.80
Hurry! Promo ends 21/11/24 11:59 PM AEDT.
Use Code:
BETTER22
Selling fast. Hurry and order now to save 46%
PRODUCT HIGHLIGHTS
- Advanced Maximum Power Point Tracking
- Temperature Sampling and Control
- Support TTL & RS485 Communication
- Intelligent Protection Functions
- Max. Solar Input Power 12V/520W 24V/1040W
SRNE MPPT Solar Charge Controller Makes Your Energy Management More Efficient!
Advanced Maximum Power Point Tracking
This serie controller adopts the industry-leading MPPT which tracking efficiency up to 99.9% to achieve the maximum energy trackingfor the solar panel, that is, it can quickly and accurately track the maximum power point of the solar battery on any condition.
Temperature Sampling and Control
Fitted with a Remote Temperature Sensor, the MPPT Charge Controller can measure battery temperature in real-time. Connect the temperature sensor to the corresponding temperature interface to achieve the high and low temperature protection for the battery and the temperature compensation for the charging voltage of lead-acid battery (no temperature compensation for the lithium battery) , assuring stable and constant charging.

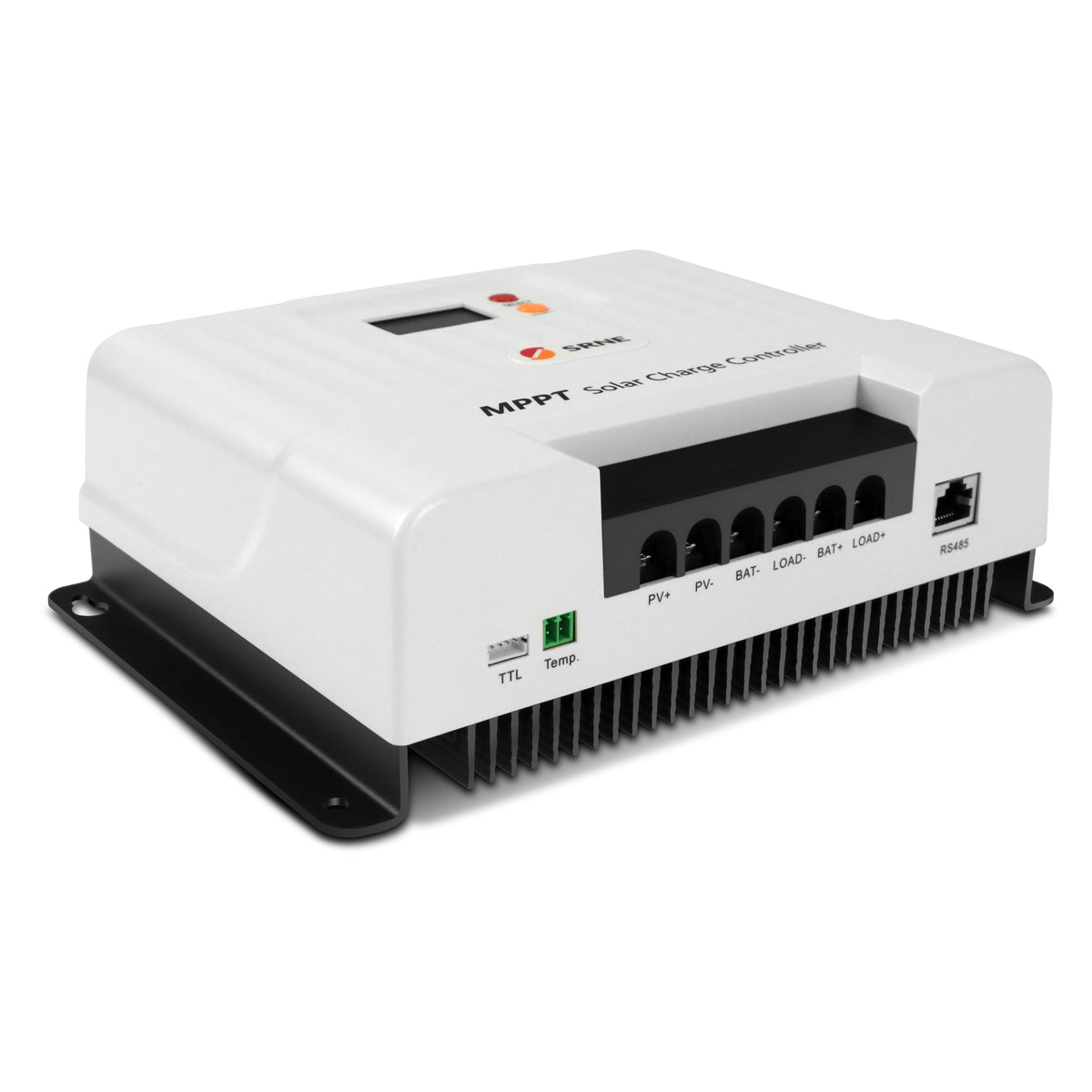

Support TTL & RS485 Communication
MPPT solar charge controller has powerful TTL and RS485 communication protocol function. By connecting the controller with other devices, you can easily obtain the status information of the charger, adjust battery charging parameters, etc.
Intelligent Protection Functions
MPPT provides multiple protection functions: Over-temperature protection of device, Battery over-temperature protection, Input over-power protection, PV input side too high voltage protection, PV input reverse-connection protection, Reverse charging protection at night.
Max. Solar Input Power 12V/520W 24V/1040W
The MPPT charge controller can work with standard off-grid 12/24V solar panels. In particular, this controller will significantly increase the efficiency of a solar system where the solar panel voltage is much higher than the battery voltage.
- Your item will be shipped next business day.
- On average, items are delivered between 3 to 7 business days following shipping around Australia.
- Check out our shipping and delivery calculator above for more information.
- We can't ship products to PO Boxes, Parcel Lockers or Post Offices. We need to have an actual address to proceed with the order.
- Outbax offers a 12-month warranty on all products from the date of purchase unless otherwise stated. Outbax warrants its products against defects in materials and\/or workmanship. This is further to your rights under Australian Consumer Law.
- Outbax products come with a 60-day money-back guarantee. You must contact us within 60 days of receiving the product and it must return in its original condition.
PERFORMANCE AND EFFICIENCY
| Maximum solar panel power: | 520W/12V; 1040W/24V |
| MPPT operating voltage range: | (Battery voltage +2V)~72V |
| MPPT tracking efficiency: | >99% |
| Charging conversion efficiency: | 85%-98% (10%-100% of rated power) |
| Rated charging current: | 40A |
| Rated load current: | 20A |
| Charging current setting: | Yes |
| Full-charging setting: | Yes |
| Constant voltage output setting: | Yes |
ELECTRICAL SPECIFICATIONS
| System voltage: | 12V/24V |
| Static power consumption: | ≤10mA |
| Maximum PV open-circuit voltage: | 100V (95V protection, 90V recovery) |
| Battery operating voltage range: | 8V-32V |
COMMUNICATION AND CONTROL
| Load operating mode: | Light control, light control + time control, manual mode (default), debugging mode, normally open |
| TTL communication: | Baud rate: 9,600 bps |
| RS485 communication: | RJ45 interface, with power output 5V/200 mA,The baud rate is 9,600 bps by default, adjustable. |
| Bluetooth communication: | Optional |
| CAN communication: | RJ45 interface, optional (RV-C protocol) |
| Historical data: | Save the last 200 days of historical data |
SAFETY AND PROTECTION
| Overload/short-circuit protection: | Yes |
| Grounding type: | Grounding of common negative electrode |
| Protection function: | PV overvoltage protection, PV reverse connection protection, PV shortcircuit protection, night reverse charging protection, input power limit protection, over-temperature protection, load short-circuit protection, overload protection, battery over-voltage/over-discharge protection,battery reverse connection protection, battery end short circuit protection. |
| IP Rating: | IP32 |
ENVIRONMENTAL SPECIFICATIONS
| Cooling mode: | Natural heat dissipation |
| Charging temperature compensation of lead-acid battery: | Yes |
| Operating ambient temperature range: | -35°C~ 65°C |
| Temperature unit setting: | Yes |
DIMENSIONS & WEIGHT
| Dimension: | 228 x 160 x 72mm |
| Mounting Hole Spacing: | 214 x 133mm |
| Fixed Hole Position: | Φ5mm |
| Weight: | 1750g |

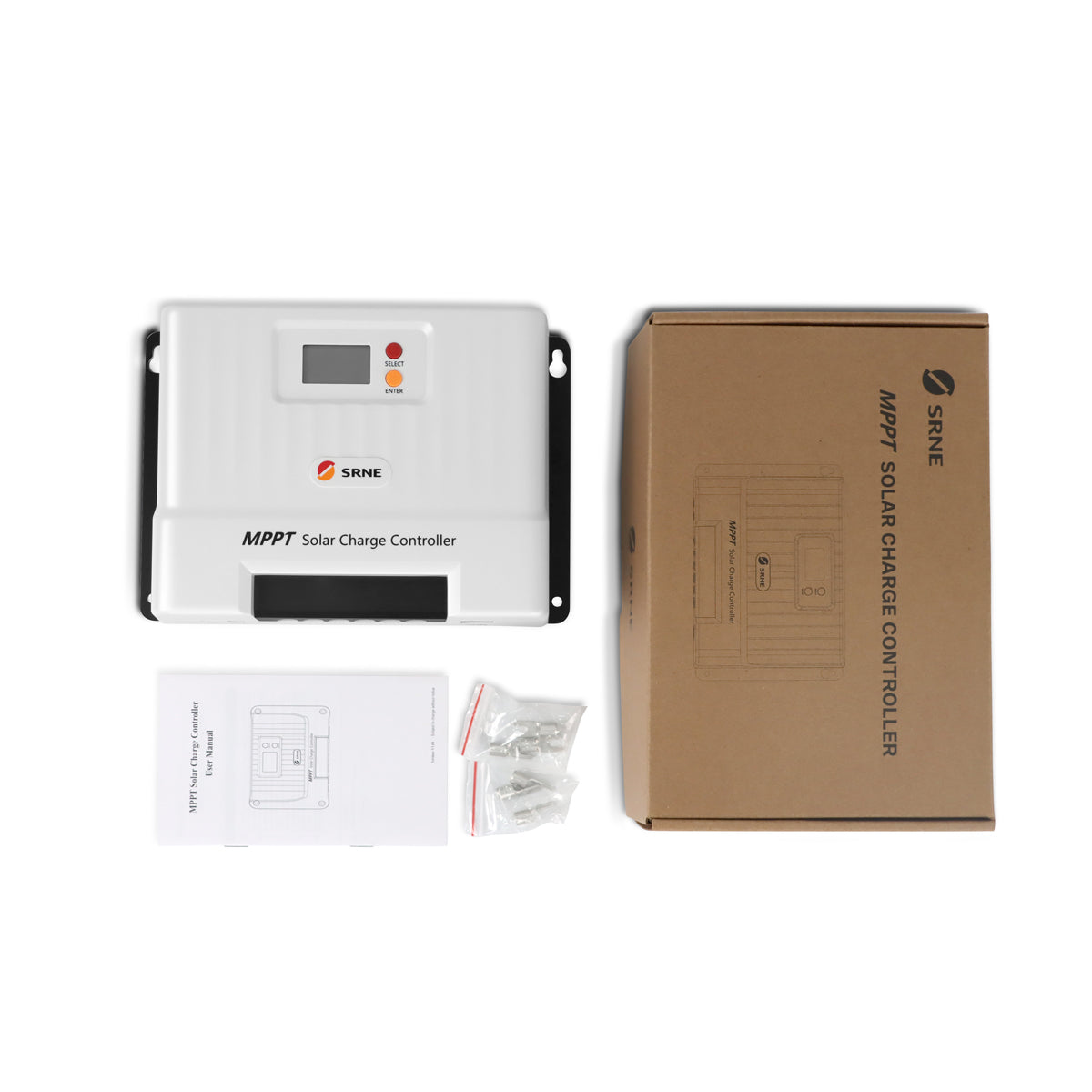

WHAT'S IN THE BOX
| 1 x | MPPT Solar Charge Controller |
SKU:
| srne-voltx-40a |
