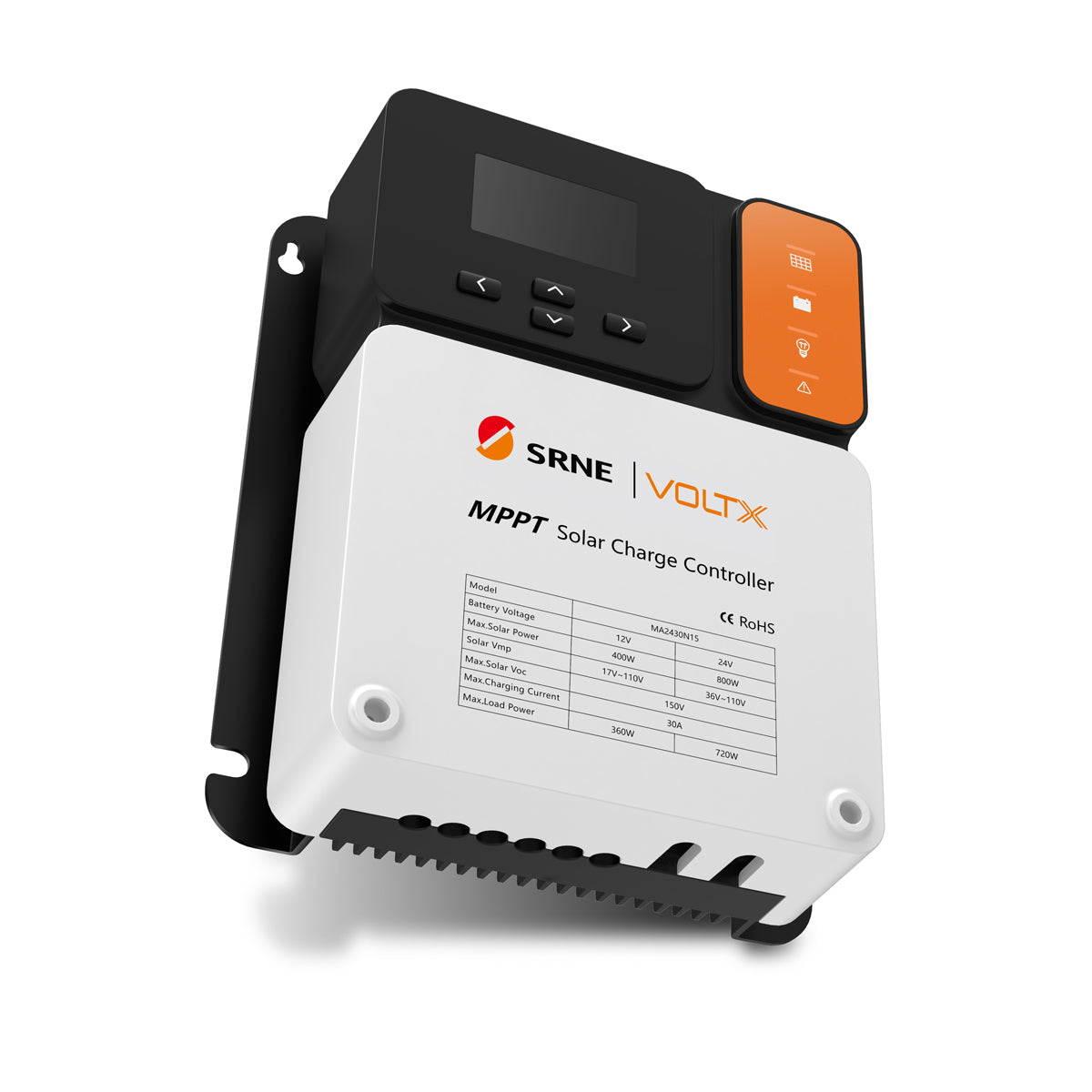

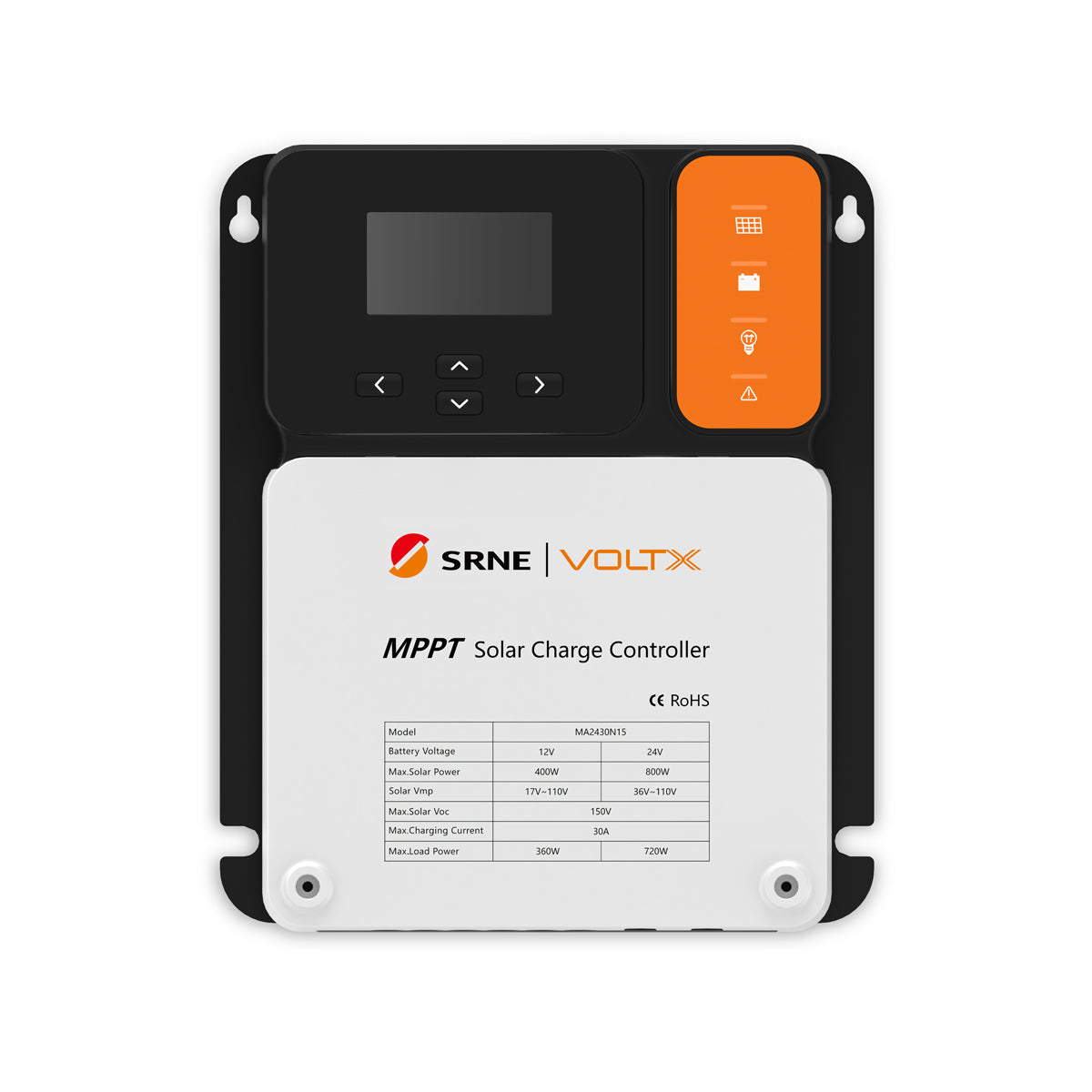

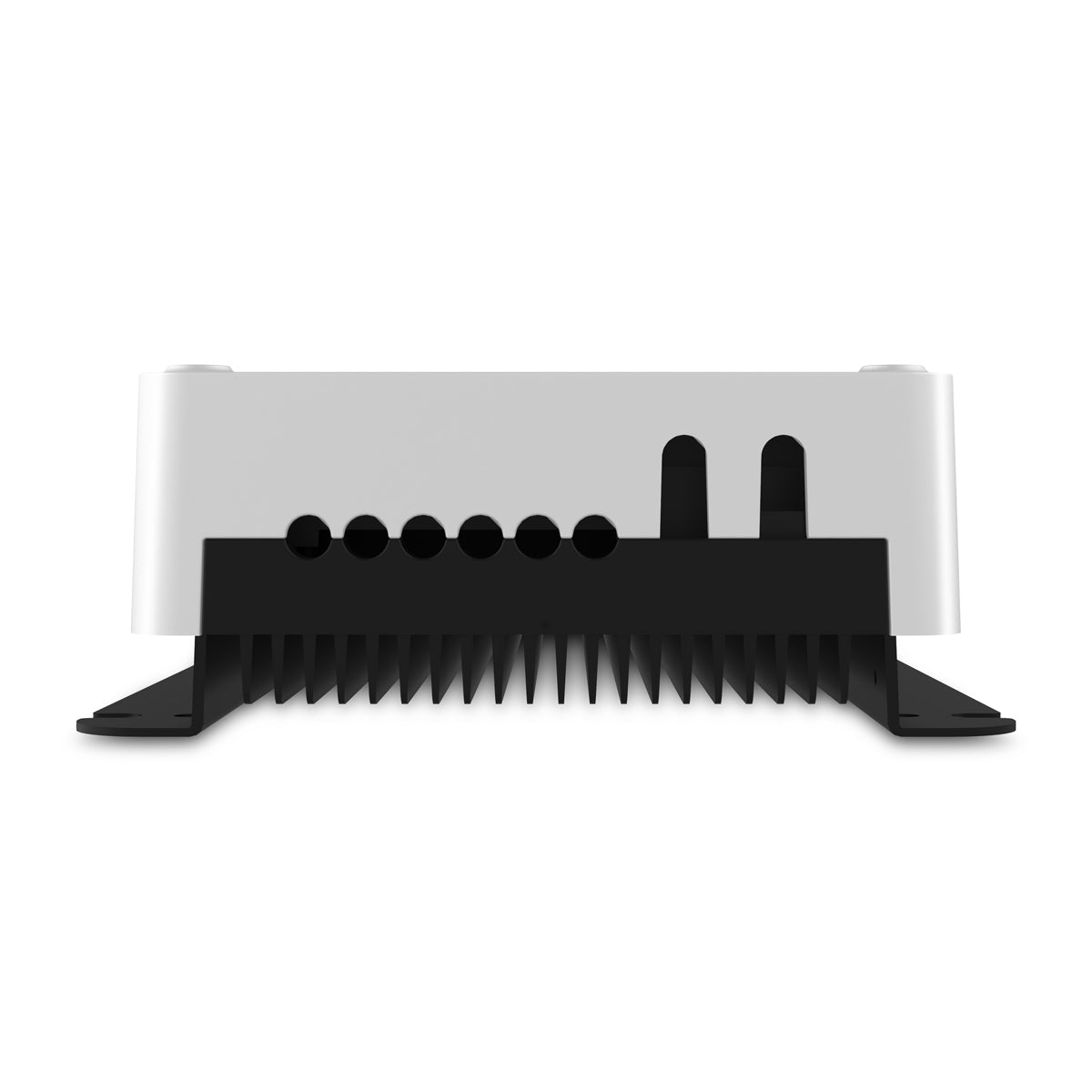

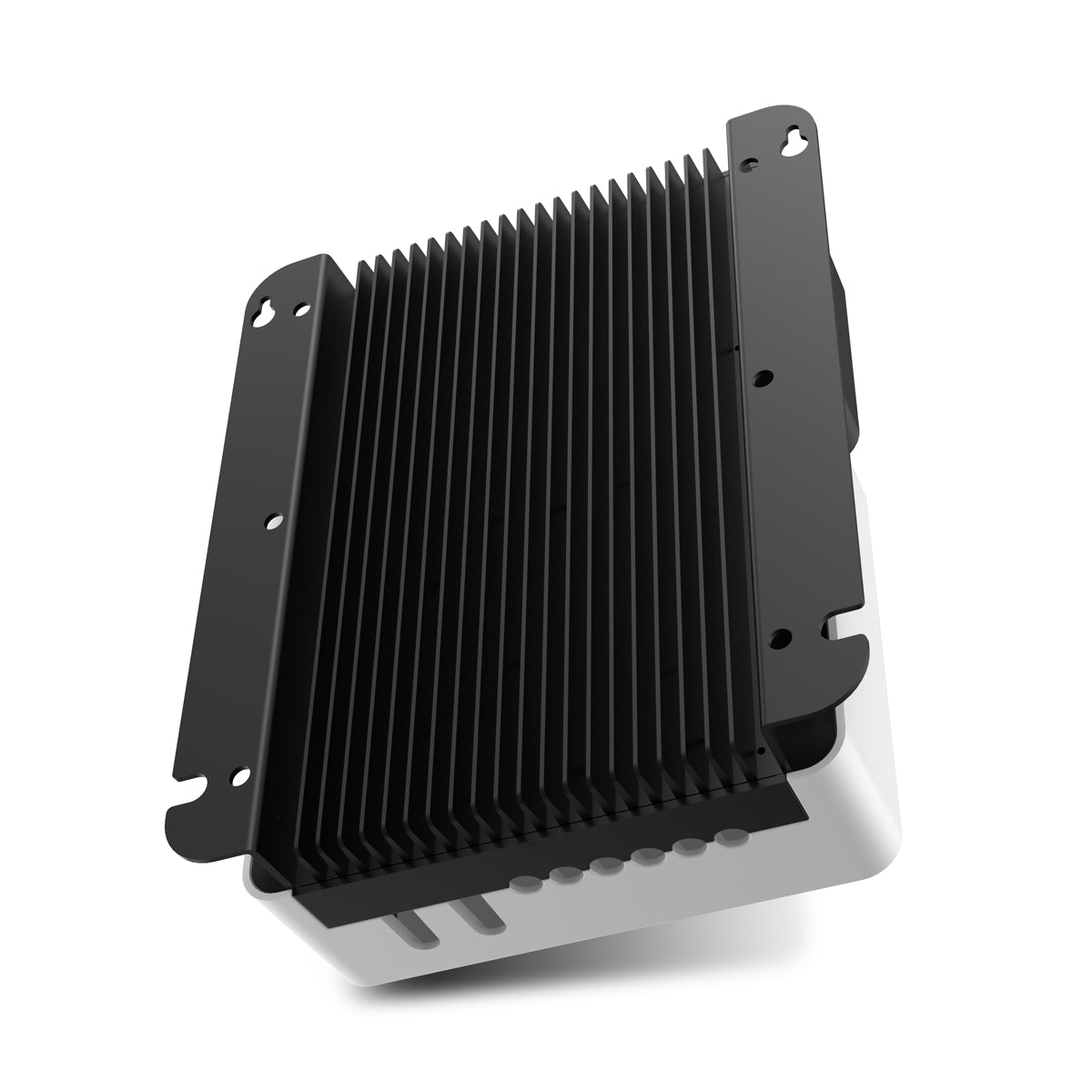

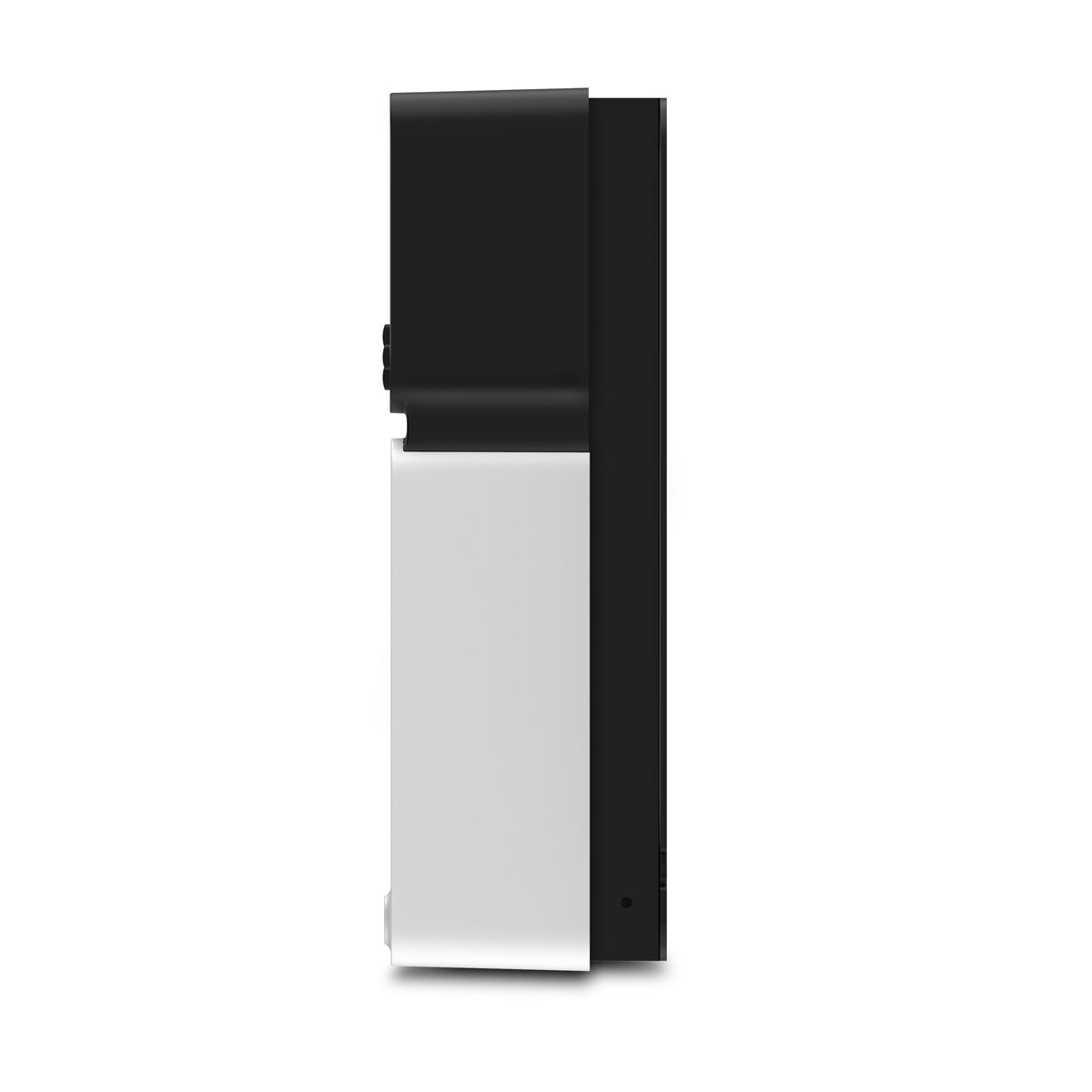

VoltX SRNE 12V/24V 30A MPPT Solar Charge Controller
Couldn't load pickup availability
60 Days
Return
12 Months
Warranty
100% Secured
Payment & Data
Merry Savings Xmas Blow-Out
PLUS Get 20% off EVERYTHING
Pay only $136.00
Hurry! Promo ends 25/12/24 11:59 PM AEDT.
Use Code:
MERRY20
Selling fast. Hurry and order now to save 61%
PRODUCT HIGHLIGHTS
- Advanced Maximum Power Point Tracking
- Temperature Sampling and Control
- Support TTL & RS485 Communication
- Intelligent Protection Functions
- Max. Solar Input Power 12V/400W 24V/8000W
SRNE VOLTX MPPT Solar Charge Controller Makes Your Energy Management More Efficient!
Advanced Maximum Power Point Tracking
This serie controller adopts the industry-leading MPPT which tracking efficiency up to 99.9% to achieve the maximum energy trackingfor the solar panel, that is, it can quickly and accurately track the maximum power point of the solar battery on any condition.
Temperature Sampling and Control
Fitted with a Remote Temperature Sensor, the MPPT Charge Controller can measure battery temperature in real-time. Connect the temperature sensor to the corresponding temperature interface to achieve the high and low temperature protection for the battery and the temperature compensation for the charging voltage of lead-acid battery (no temperature compensation for the lithium battery) , assuring stable and constant charging.
Support TTL & RS485 & CAN & Bluetooth Communication
MPPT solar charge controller has powerful TTL and RS485 communication protocol function. By connecting the controller with other devices, you can easily obtain the status information of the charger, adjust battery charging parameters, etc. and under the Bluetooth Communication you can view fault status through the mobile app.
Intelligent Protection Functions
MPPT provides multiple protection functions: Over-temperature protection of device, Battery over-temperature protection, Input over-power protection, PV input side too high voltage protection, PV input reverse-connection protection, Reverse charging protection at night.
Max. Solar Input Power 12V/400W 24V/8000W
The MPPT charge controller can work with standard off-grid 12/24V solar panels. In particular, this controller will significantly increase the efficiency of a solar system where the solar panel voltage is much higher than the battery voltage.
- Your item will be shipped next business day.
- On average, items are delivered between 3 to 7 business days following shipping around Australia.
- Check out our shipping and delivery calculator above for more information.
- We can't ship products to PO Boxes, Parcel Lockers or Post Offices. We need to have an actual address to proceed with the order.
- Outbax offers a 12-month warranty on all products from the date of purchase unless otherwise stated. Outbax warrants its products against defects in materials and\/or workmanship. This is further to your rights under Australian Consumer Law.
- Outbax products come with a 60-day money-back guarantee. You must contact us within 60 days of receiving the product and it must return in its original condition.
PERFORMANCE AND EFFICIENCY
| Maximum solar panel power: | 400W/12V; 800W/24V |
| MPPT operating voltage range: | (Battery Voltage +2)~110V |
| MPPT tracking efficiency: | >99% |
| Charging conversion efficiency: | 85%-98% (10%-100% of rated power) |
| Rated charging current: | 30A |
| Rated load current: | 30A |
| Charging voltage line loss compensation: | No |
| Support full settings: | Yes |
| Constant voltage output setting: | Yes |
| Battery Type: | USE/FLD/GEL/LI/SLD(Default) |
ELECTRICAL SPECIFICATIONS
| System voltage: | 12V/24V |
| Static power consumption: | ≤30mA |
| Maximum PV open-circuit voltage: | 150V |
| Battery operating voltage range: | 8V-32V |
| Maximum PV Input Current: | 27A |
| Parallel connection for charging: | No |
COMMUNICATION AND CONTROL
| Load operating mode: | Pure light-dependent control, light and time-dependent control, manual mode (default), debugging mode, normally opened. |
| TTL communication: | Baud Rate 9600kps |
| RS485 communication: | One isolated RS485 communication port, with power output of 5V200mA, baud rate of 9,600kps by default and adjustable. |
| Bluetooth communication: | Built-in |
| CAN communication: | RV-C Protocol |
| Historical data: | Can store historical data of the past 300 days |
SAFETY AND PROTECTION
| Temperature protection: | Yes |
| Overload/short-circuit protection: | Yes |
| Grounding type: | Co-negative design and negative grounding |
| Load pre-start: | Yes |
ENVIRONMENTAL SPECIFICATIONS
| Cooling mode: | Natural Cooling |
| Charging temperature compensation of lead-acid battery: | Yes |
DIMENSIONS & WEIGHT
| Dimension: | 260 x 216 x 83.2mm |
| Mounting Hole Spacing: | 200 mm |
| Fixed Hole Position: | Φ10mm |
| Weight: | 2.3kg |
WHAT'S IN THE BOX
| 1 x | MPPT Solar Charge Controller |
SKU:
| srne-voltx-30a |
