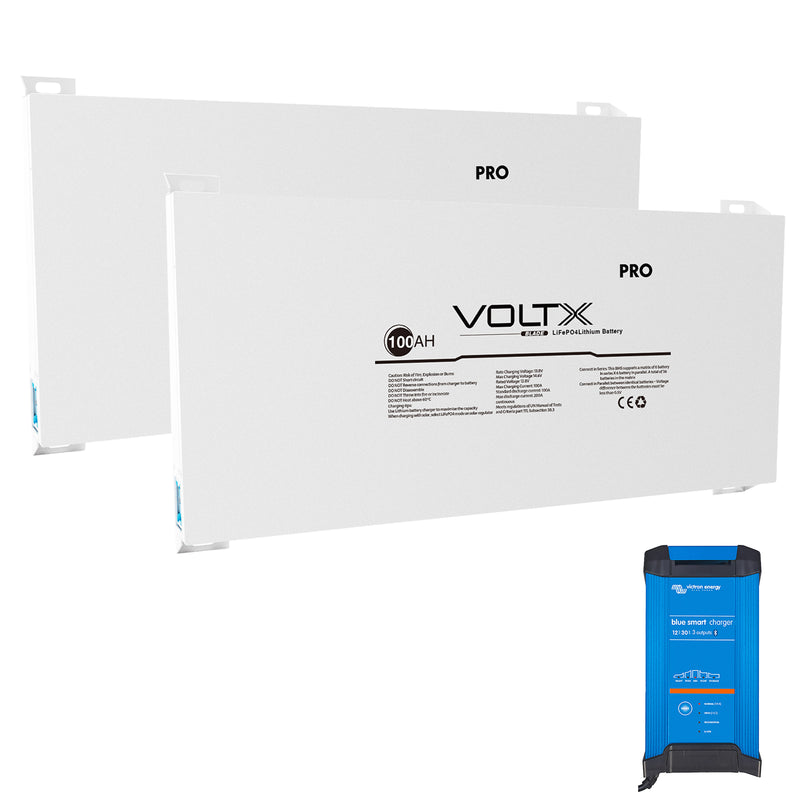

Victron Smart IP22 SLA/2x VoltX 12V 100Ah Blade Lifepo4 Battery
Couldn't load pickup availability
60 Days
Return
12 Months
Warranty
100% Secured
Payment & Data
Merry Savings Xmas Blow-Out
PLUS Get 20% off EVERYTHING
Pay only $1,759.20
Hurry! Promo ends 25/12/24 11:59 PM AEDT.
Use Code:
MERRY20
Selling fast. Hurry and order now to save 52%
PRODUCT HIGHLIGHTS
- Slimblade LiFePO4 comprised of prismatic cells & a built-in BMS
- High energy density for increased capacity in lightweight form
- 94% charger efficiency rate and Bluetooth connectivity
- Victron top quality charger with adaptive 6-stage charge algorithm
- Ideal combo for outdoor recreational, backup, and off-grid applications
MODEL 1: Victron Blue Smart IP22 SLA/LiFePO4 Charger
Introducing the Bluetooth-compatible Victron Smart Battery Charger. Engineered for the modern-day battery user, it boasts cutting edge technology to deliver the smoothest charging process for both lead-acid and lithium-based portable batteries.
Winning Efficiency
Designed for fast and optimised charging, this device boasts up to 94% efficiency rate. Say goodbye to long hours of waiting for your battery to charge. Additionally, Victron also generates up to four times less heat, and once the battery is fully charged, power consumption is reduced to five or even 10 times better than the industry standard.
Adaptive 6-Stage Charge Algorithm
The Victron Smart charger features a 6-stage algorithm: test - bulk – absorption - recondition – float – storage. It also has a microprocessor-controlled ‘adaptive’ battery management, which allows for an optimised charging process in accordance to the way the battery is being used.
Storage Mode
Keep your battery in brand-new condition, even when not in use. The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode, float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalise’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.
Night and Low Setting
When in Night or Low mode, the output current is reduced to max. 25% of the nominal output and the charger operates without any noise. The Night mode automatically ends after 8 hours, while the Low mode can be ended manually.
Overheat Protection
Batteries are vulnerable to overheating during the charging stage. Victron addresses this by reducing the output current as temperature increases up to 50°C, without compromising the performance of the charger itself.
MODEL 2: VoltX 12V 100Ah Blade LiFePO4 Batteries
Our blade batteries are the real definition of portable power. Encased in ultra-thin exterior, these powerful packs deliver 100% capacity, making them a superb choice for adventures and off-grid purposes. You don’t even have to worry about setup because of their ultra space-saving form!
Parallel and Series Capable
Get more power from more batteries without crowding your space. This space-savvy LiFePO4 can be connected in series or parallel for increased output without you having to deal with bulky, heavy battery packs!
Durable Exterior
IP65-rated with a rugged ABS frame, this battery pack is designed for the Aussie outdoors. Take it to your next adventure in your 4WD or include it in your camping essentials for a sturdy, reliable companion.
Quality Like No Other
You can never go wrong with a mix of grade-A prismatic cells and a built-in battery management system (BMS). The result? Optimised performance, increased battery protection, and a safe user experience.
Be the ultimate adventurer and get it with the Victron Smart Charger now.
IMPORTANT: While our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.
Suggestions From the Outbax Team
- Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
- As much as possible, only connect batteries in series or parallel during emergency situations.
- It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.
- We have available batteries with larger discharge parameters for fast charge/discharge requirements.
- Our batteries are also available in 200Ah and 300Ah for larger capacity demands.
MODEL 1: Victron Blue Smart IP22 SLA/LiFePO4 Charger
| Input voltage range: | 180 - 265 VAC |
| Charge current, normal mode: | 15 / 20 / 30 A |
| Charge current, NIGHT or LOW: | 7.5 / 10 / 15 A |
| Efficiency: | 93 % |
| No load power consumption: | 0.5 W |
| Frequency: | 45 - 65 Hz |
| Number of outputs: | 1 |
| Charge Voltage Absorption: |
Normal: 14.4V High: 14.7V Li-ion: 14.2V |
| Charge Voltage Float: |
Normal: 13.8V High: 13.8V Li-ion: 13.5V |
| Charge Voltage Storage: |
Normal: 13.2V High: 13.2V Li-ion: 13.5 V |
| Charge algorithm: | 6-stage adaptive |
| Can be used as power supply: | Yes |
| Protection: | Battery reverse polarity (fuse) Output short circuit Over temperature |
| Operating temp. range: | -40 to +60 °C (full rated output up to 40 °C) |
| Humidity (non-condensing): | Max 98 % |
ENCLOSURE |
|
| Material & Colour: | Aluminium (blue RAL 5012) |
| Battery connection: | Screw terminals 16 mm⊃ / AWG6 |
| 230 VAC connection: | Cable of 1.5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ) |
| Protection category: | IP22 |
| Dimensions: | 235(H) x 108(W) x 65(D) mm |
| Weight: | 1.3 kg |
STANDARDS |
|
| Safety : | EN 60335-1, EN 60335-2-29 |
| Emission: | EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
| Immunity: | EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
| Automotive: | ECE R10-5 |
MODEL 2: VoltX 12V 100Ah Lithium Iron Phosphate Battery
| Nominal Capacity: | 100Ah |
| Usable Capacity: | 100Ah |
| Nominal Voltage: | 12.8V |
| Rated Energy: | 1280wh |
| Charge Voltage: | 14.6V |
| Discharge Cut-off Voltage: | 10V |
| Charge Method: | CC/CV |
| Charger: | 14.6V50A |
| Standard Discharge Current | 100A |
| Max. Continues Discharge Current: | 200A |
| Max. Discharge Current (5sec): | 600A |
| Standard Charge Current: | 50A |
| Max. Charge Current: | 100A |
| Working Temperature Range Charge: | 0°C to 45°C Discharge:-20°C to 60°C |
| Storage Temperature: | -10°C to 50°C |
| Dimension: | 600(L) x 270(W) x 65(H)mm |
