VoltX 24V 100Ah Pro LiFePO4 Battery
Couldn't load pickup availability
60 Days
Return
60 Months
Warranty
100% Secured
Payment & Data
Frenzy Sale
PLUS a further 20% off
Pay only $1,329
Hurry! Promo ends 11/11/24 11:59 PM AEDT.
Use Code:
FRENZY20
Selling fast. Hurry and order now to save 25%
PRODUCT HIGHLIGHTS
GRAND BATTERY SALE
PLUS a further 15% off using code BATTERY15
Pay only $1,146.65 Hurry! Promo ends 03/06/24 11:59 PM AEST.
- 5 Years Australian Warranty
- Rated Capacity 100Ah
- 24V Volts
- 522 x 238 x 223mm
- 19.5kg
- Approved in accordance with IEC 62619

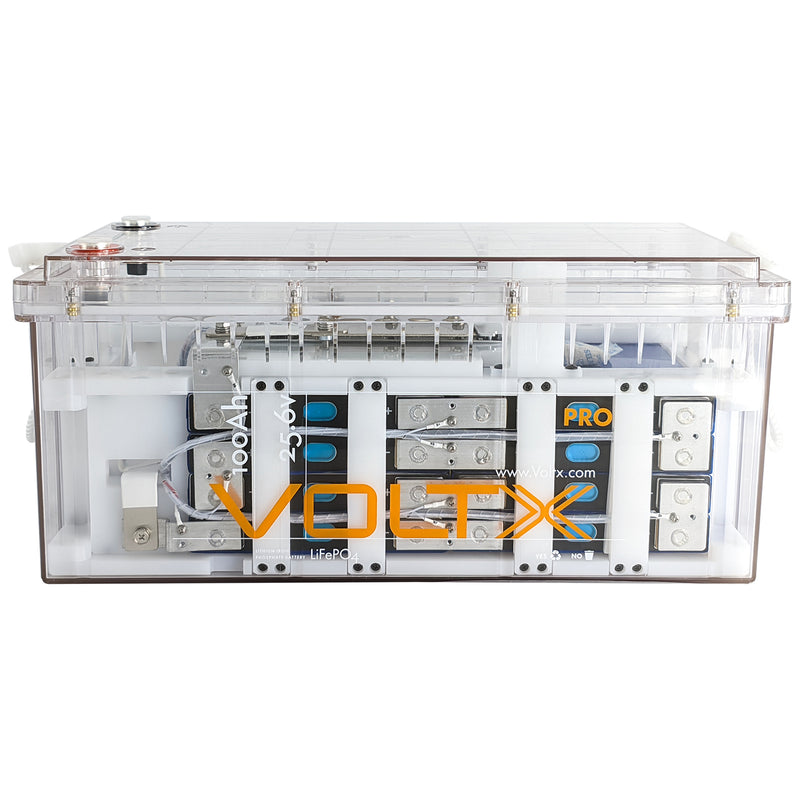

Make way for our clear-case battery! This VoltX 24V 100Ah Lithium Battery LiFePO4 allows you to easily see its premium built from the BMS down to the wirings. Built for the Aussie outdoors, it can withstand harsh elements such as rough terrains and extreme weather conditions all while running your essential appliances smoothly.
All our battery packs are comprised of prismatic cells & are backed with LiFePO4's signature built-in BMS. They are also tested to deliver 100% real capacity and are suitable for 6 parallel and 3 series.
IMPORTANT: While some of our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.
Suggestions From the Outbax Team:
- Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
- As much as possible, only connect batteries in series or parallel during emergency situations.
- It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.
- We have available batteries with larger discharge parameters for fast charge/discharge requirements.
- Our batteries are also available in 200Ah and 300Ah for larger capacity demands.
SPECIFICATIONS
| Brand | VoltX |
| Nominal Voltage: | 25.6V |
| Nominal Capacity: | 100Ah |
| Charging Voltage: | 28.4-29.2V |
| Rated Energy: | 2560Wh |
| Rated Discharge Current: | 150A |
| Max. Discharge Current: | 200A |
| Max. Discharge Current 5 sec: | 450A |
| Approx Life Cycles: | 4000 |
| Absorption Voltage: | 28.8V |
| Float Voltage: | 27.2V |
| Overcharge Protection: | 29.2V |
| Overcharge Recovery: | 28.4V |
| Overdischarge Protection: | 20.0V |
| Overdischarge Recovery: | 21.2V |
| Cell Grouping: | 8S1P |
| Working Temperature Range: | Charge: 0°C to 45°C | Discharge: -25°C to 65°C |
| Storage Temperature: | -10℃ to 50℃ |
| Battery Cells: | Prismatic |
| Case Material: | ABS Plastic |
| Parallel Connection: | Yes, max 6 batteries |
| Series Connection: | Yes, max 3 batteries |
| Warranty in Years: | 5 |
DIMENSIONS & WEIGHT
| Dimensions: | 522(L) x 238(W) x 223(H)mm |
| Weight: | 19.5kgs |
WHAT'S IN THE BOX
| 1 x | Lithium Battery |
SKU:
| bat-li-24-100a-pro-plus |
- Your item will be shipped next business day.
- On average, items are delivered between 3 to 7 business days following shipping around Australia.
- Check out our shipping and delivery calculator above for more information.
- We can't ship products to PO Boxes, Parcel Lockers or Post Offices. We need to have an actual address to proceed with the order.
- Outbax offers a 60-month warranty on this VoltX Lithium Battery from the date of purchase unless otherwise stated. Outbax warrants its products against defects in materials and/or workmanship. This is further to your rights under Australian Consumer Law.
- Outbax products come with a 60-day money-back guarantee. You must contact us within 60 days of receiving the product and it must be returned in its original condition.
