PRODUCT HIGHLIGHTS
- Charge low, use later: schedule charging during free or off-peak hours, then use stored energy during higher-rate periods to reduce peak-rate power
- Smart app energy control: schedule charge and discharge, view battery SOC and status, and set a Backup SOC to keep a reserve for outages
- 2016Wh for selected loads: up to 1000W output for compatible fridges, freezers, routers, NBN equipment, CCTV, security systems and lighting
- Expand as your needs grow: start at 2kWh and add battery modules later for more stored energy and longer backup runtime, up to 12kWh
- Built for long-term value: LiFePO4 chemistry, intelligent BMS protection, up to 8000 cycles and a 10-year AU warranty
Calculate shipping cost
Store free or off-peak power, use it when it matters

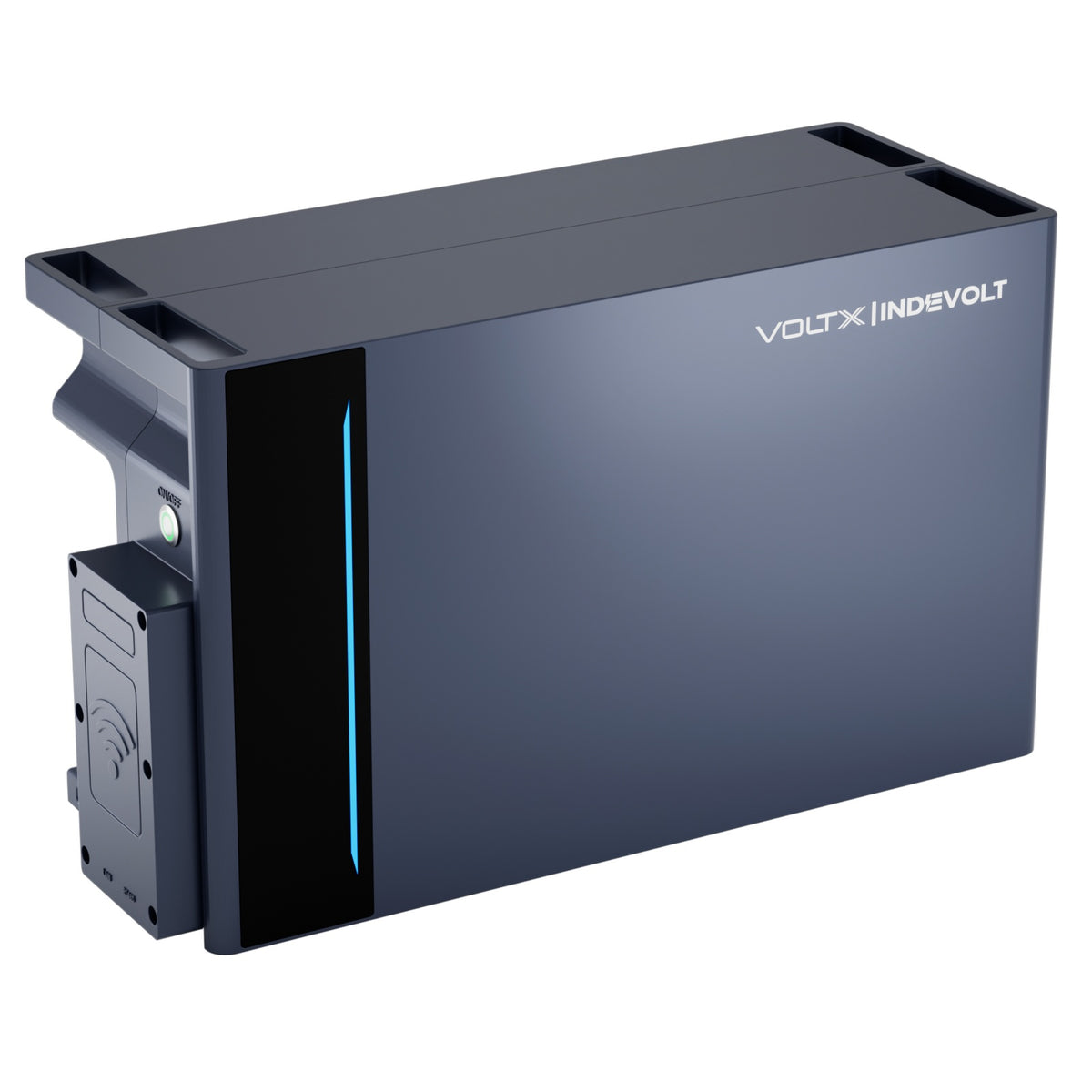

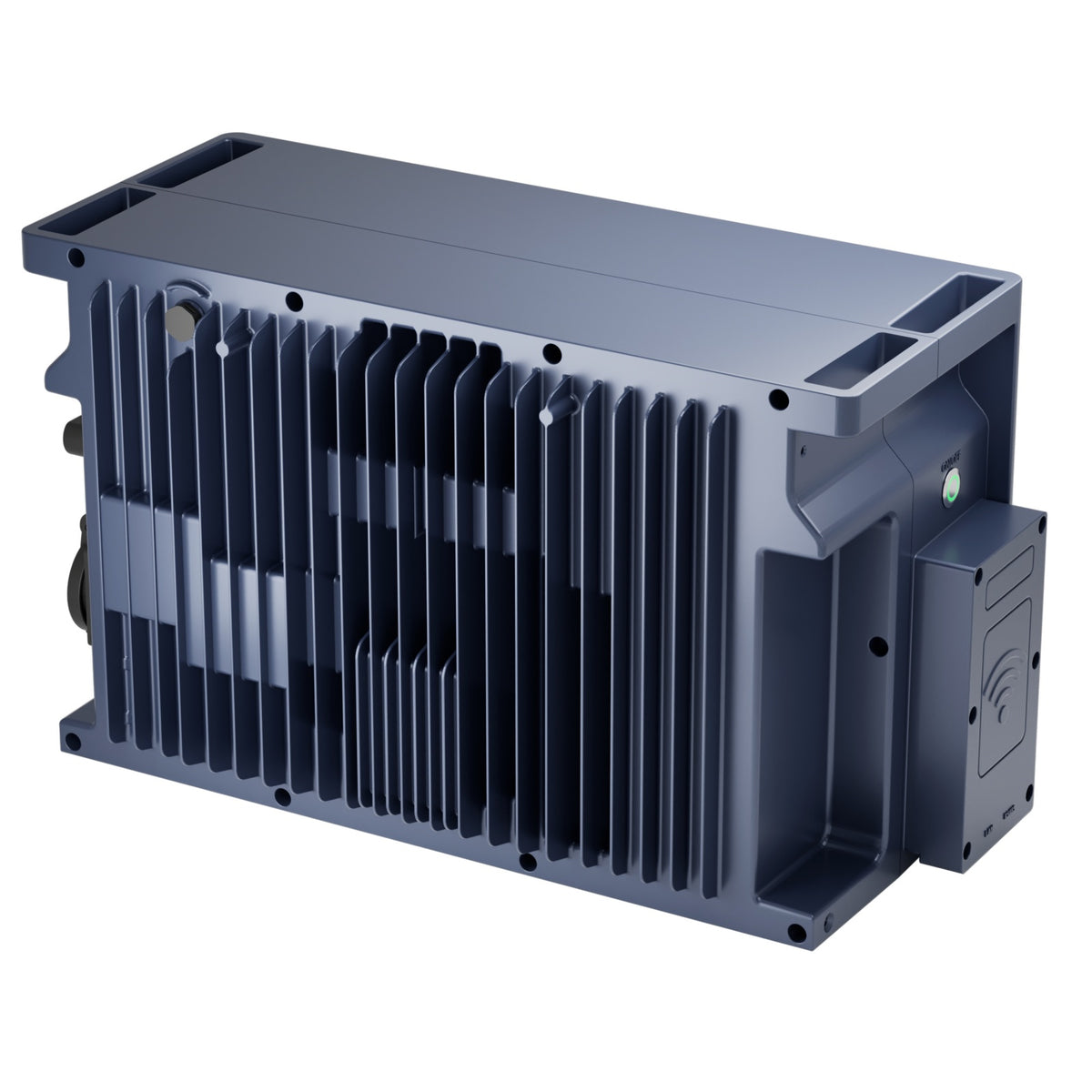

The VoltX Indevolt PowerFlex 3000 is a smart 2016Wh plug-in home battery that stores free or off-peak electricity and powers selected loads when energy costs more. It suits apartments, renters, homeowners, time-of-use customers and small businesses that want a simpler way to manage everyday energy. During an outage, stored energy can support compatible essentials such as fridges, freezers, routers, security systems and lighting.
Who it is for
- Apartments, renters and homeowners who cannot install or do not want a whole-home battery, using a standard AC connection
- Time-of-use customers with free, off-peak or lower-rate periods, charging cheap and using it later
- Fixed essential loads: garage freezers, second fridges, routers, NBN equipment, CCTV and lighting that may also need backup
- Small-business selected loads: display fridges, POS systems, routers and CCTV where tariff management and limited backup help daily operations
Cut peak costs and keep a reserve
Charge when electricity is cheapest and use stored energy during higher-rate hours. Set a Backup SOC in the app so a reserve stays ready for the next outage, and monitor charge, discharge and status from your phone.
Expandable capacity and output

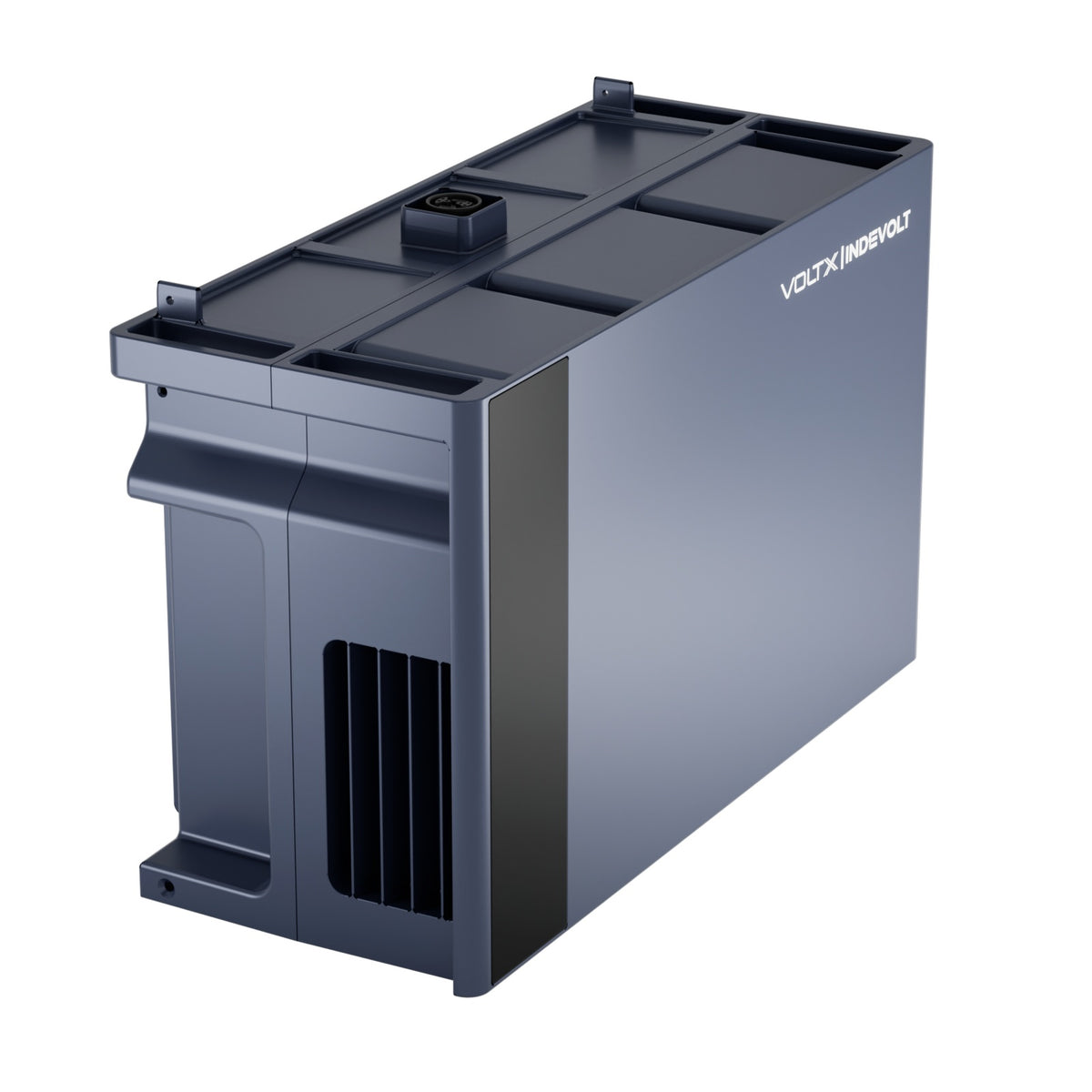

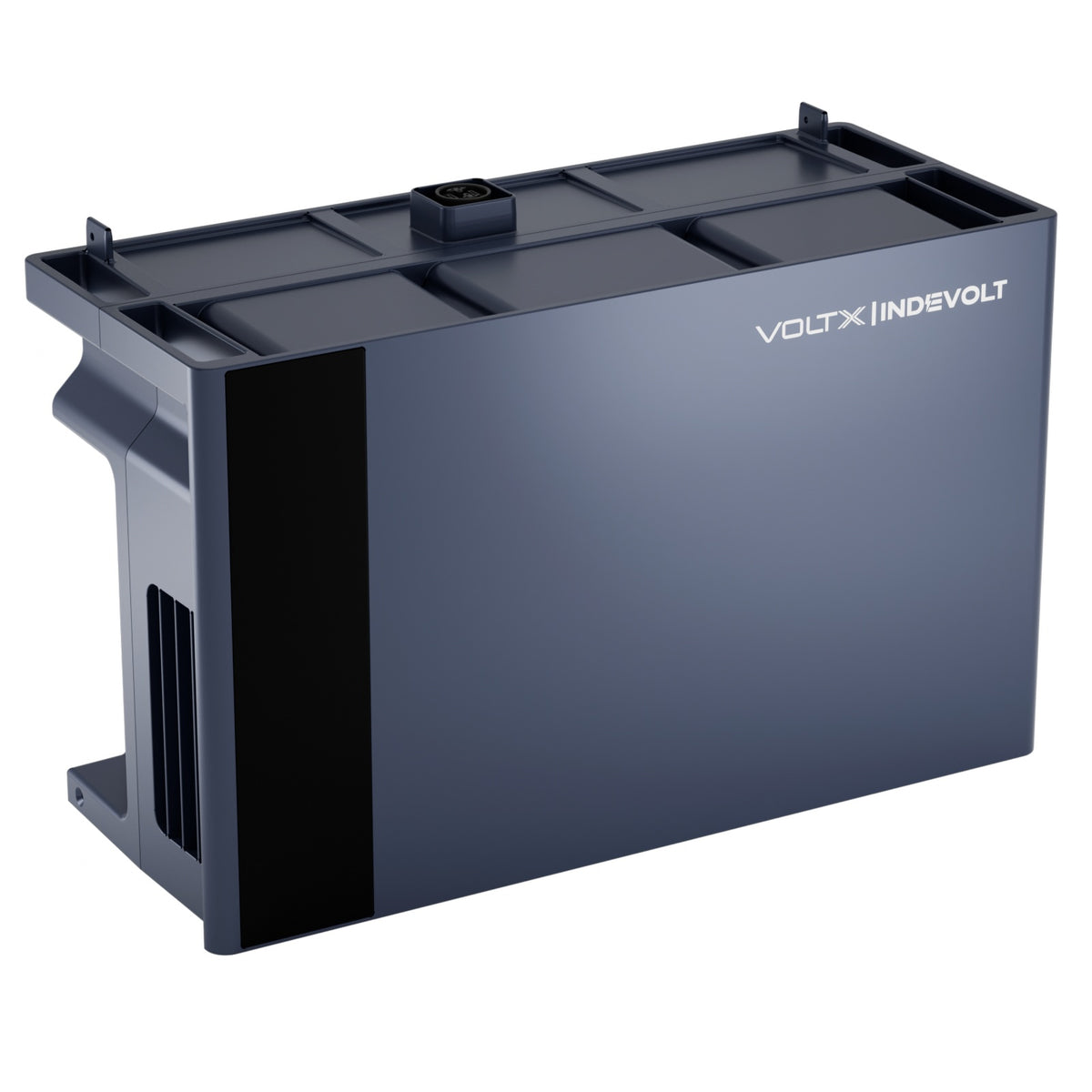

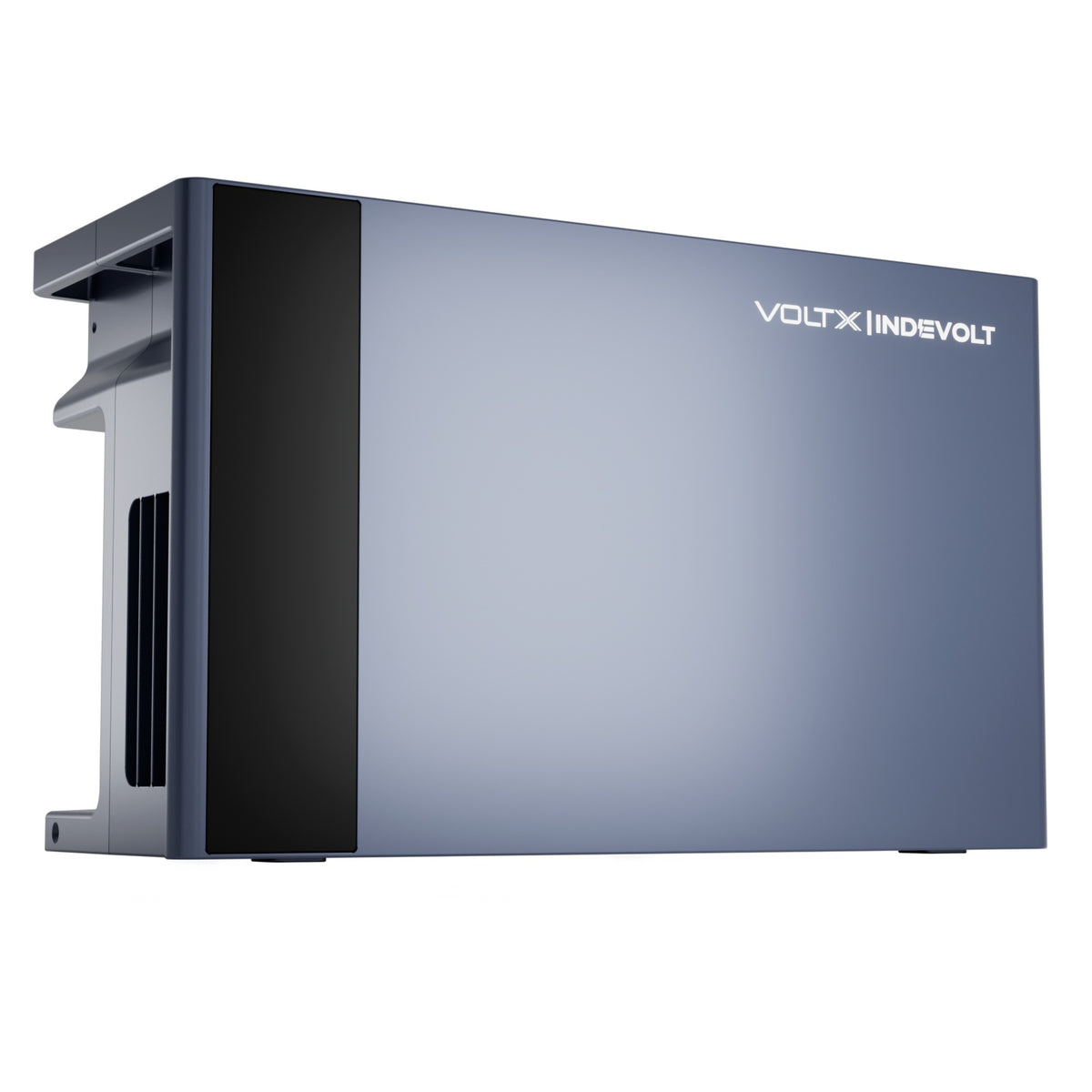

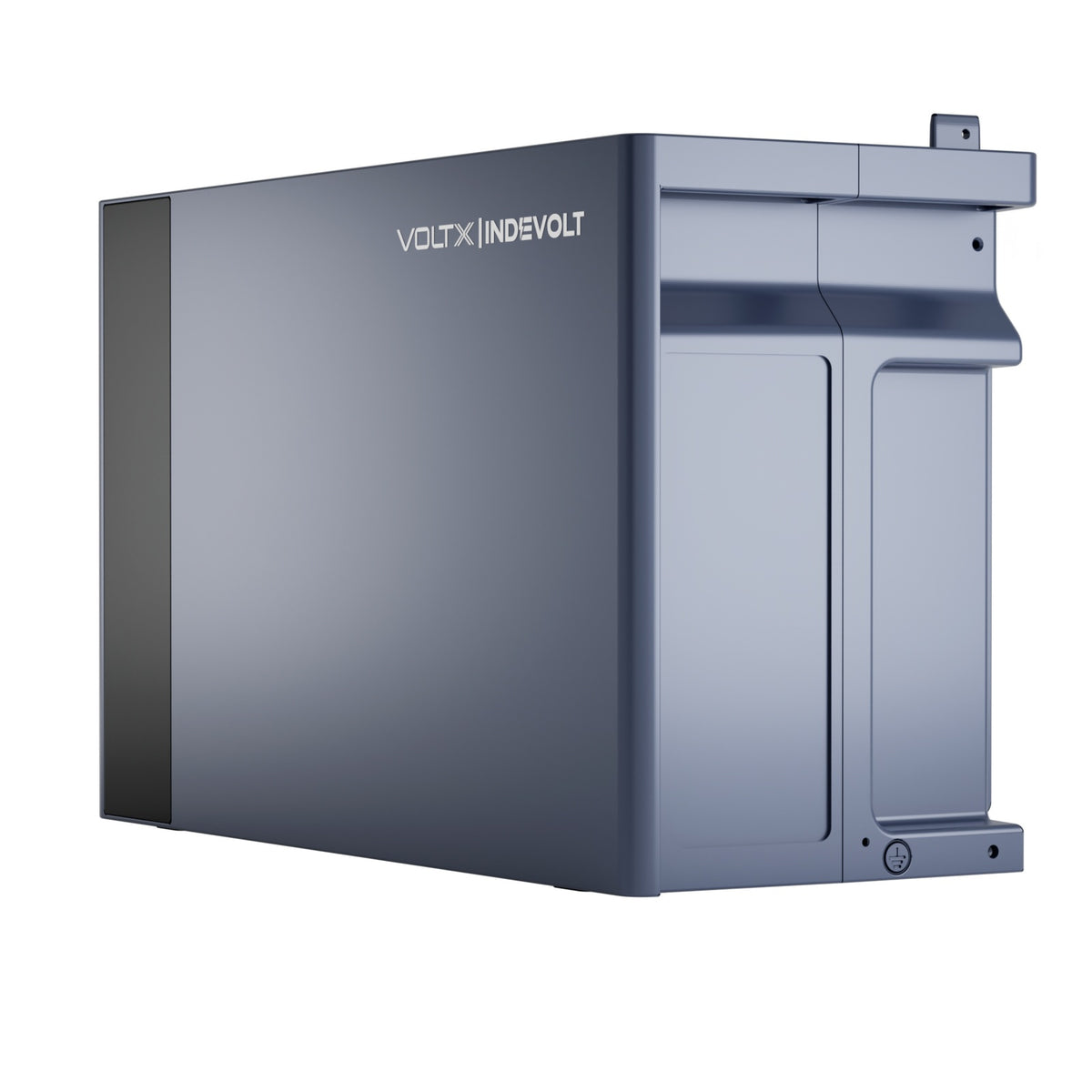

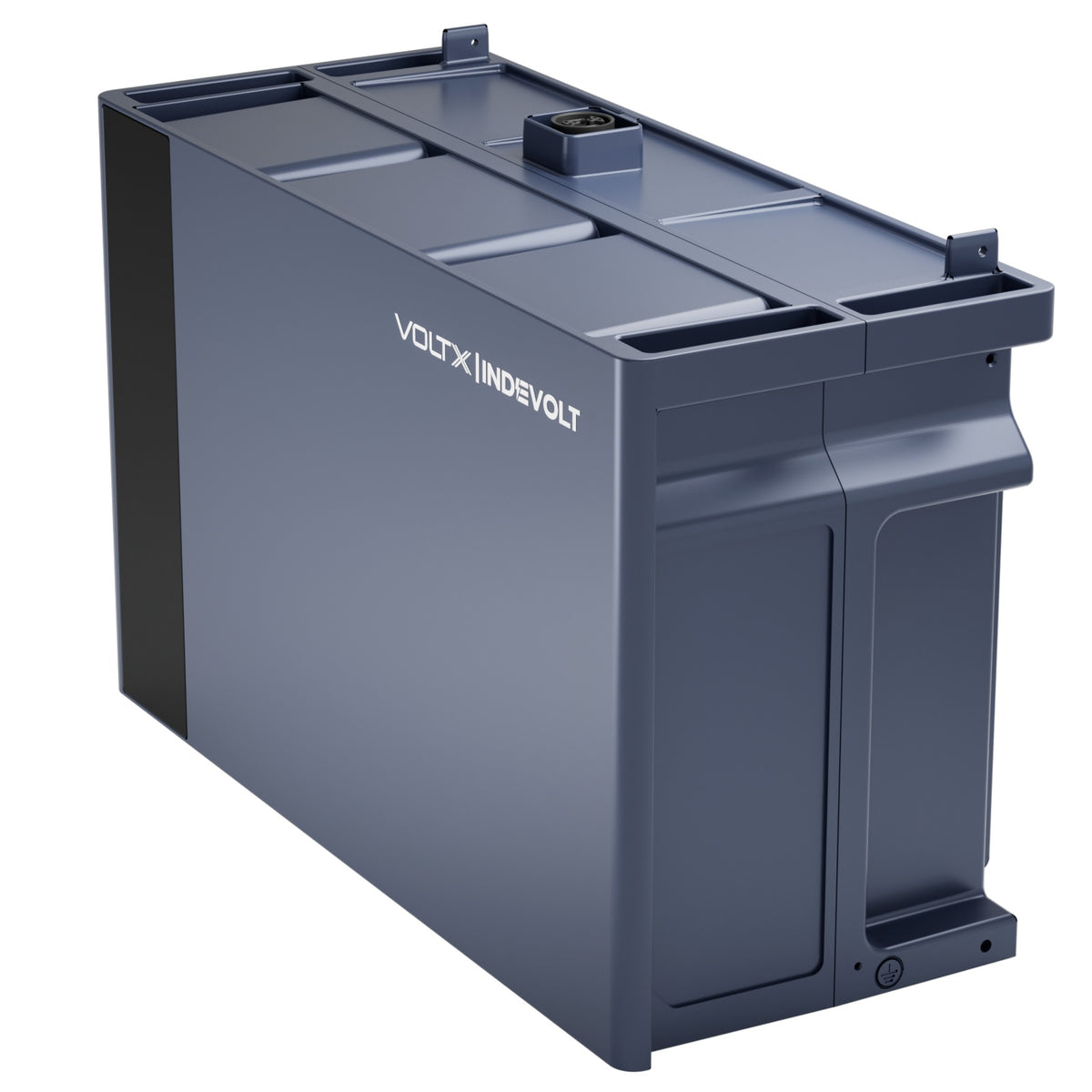

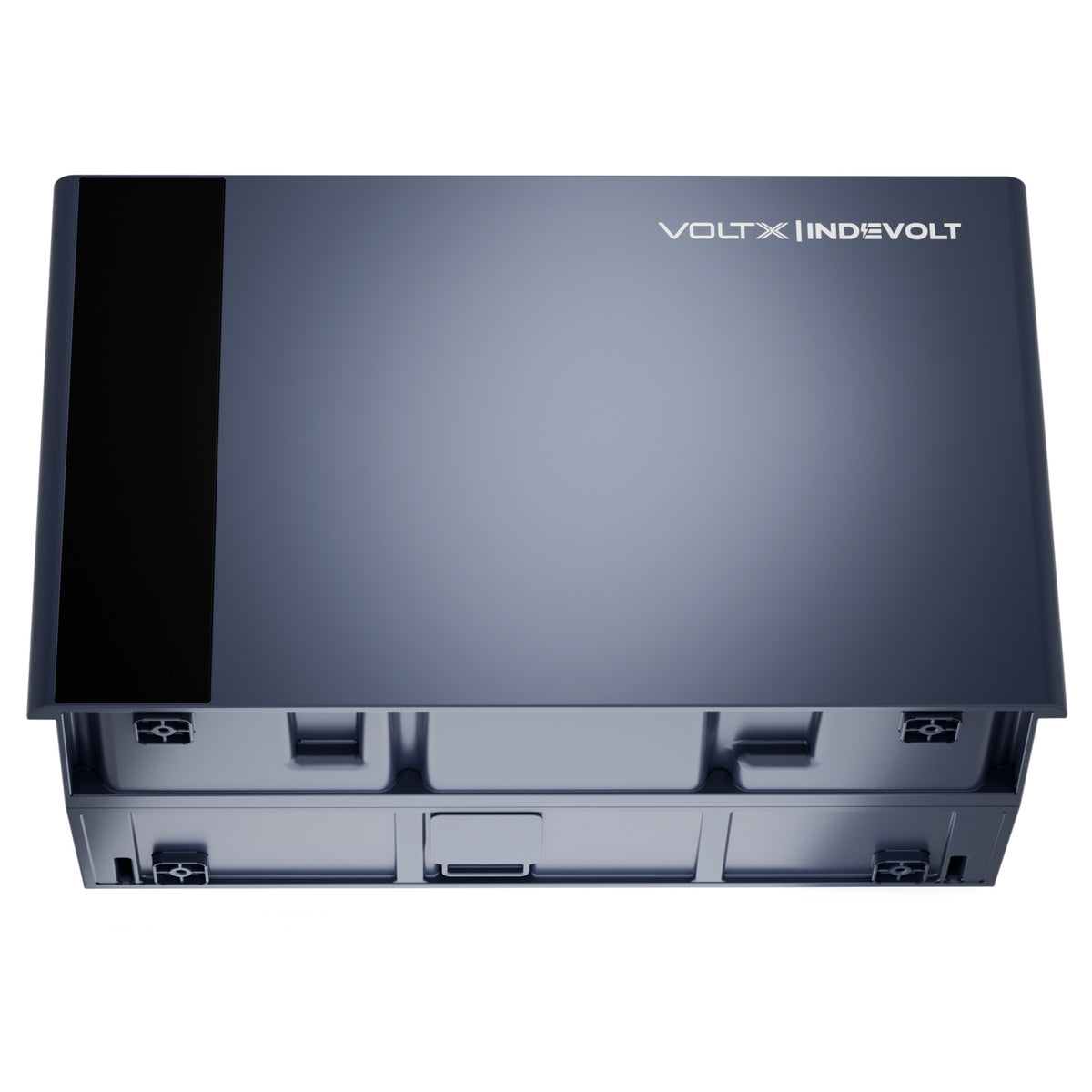

Start with the 2kWh Power Module, then add compatible Battery Modules as your storage or backup needs grow. One Power Module supports up to five Battery Modules, expanding the system to about 12kWh. Output increases to 3000W with two battery modules; further modules mainly add stored energy and runtime.

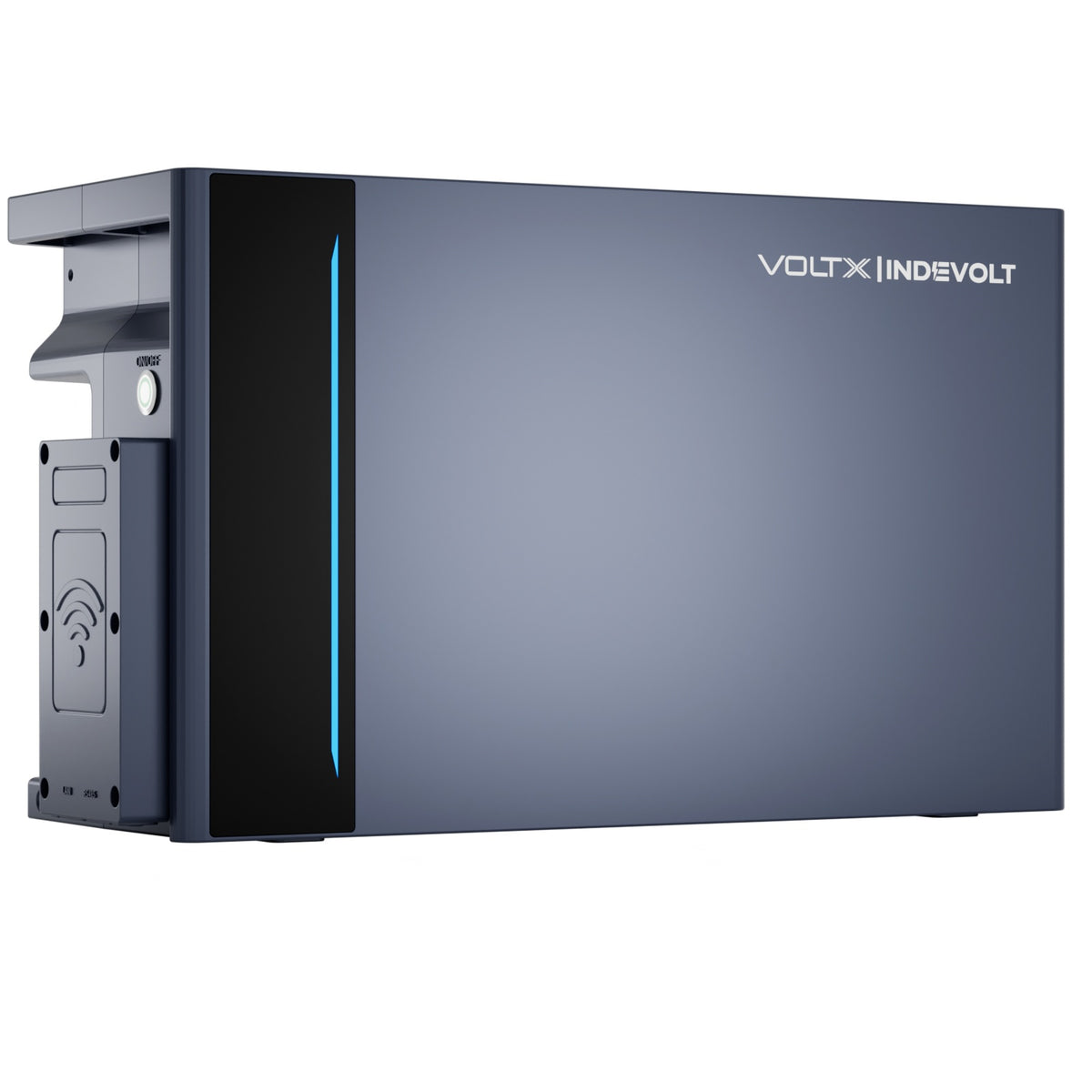

- Power Module only: 1000W, 2kWh

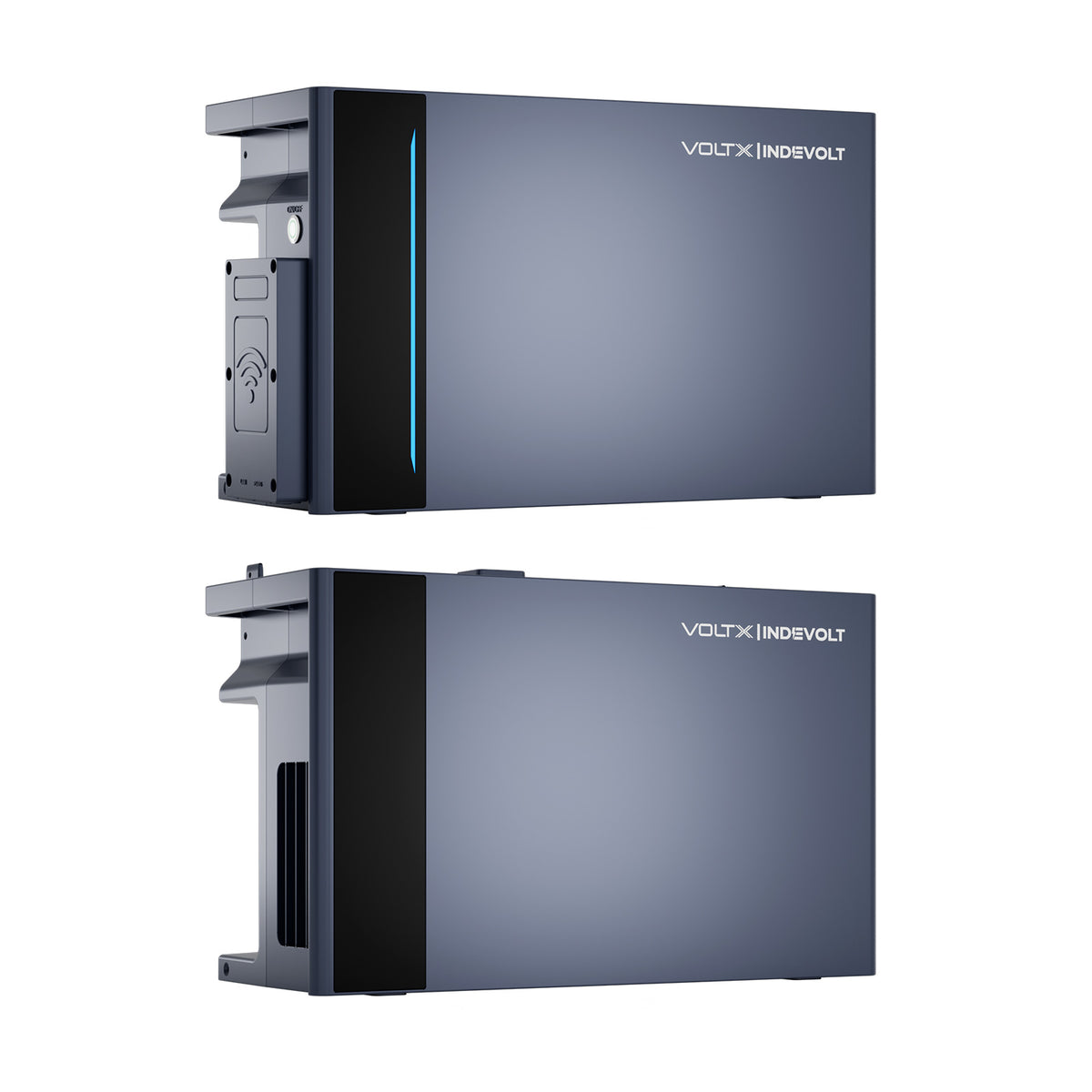

- Power Module + 1 Battery Module: 2000W, 4kWh

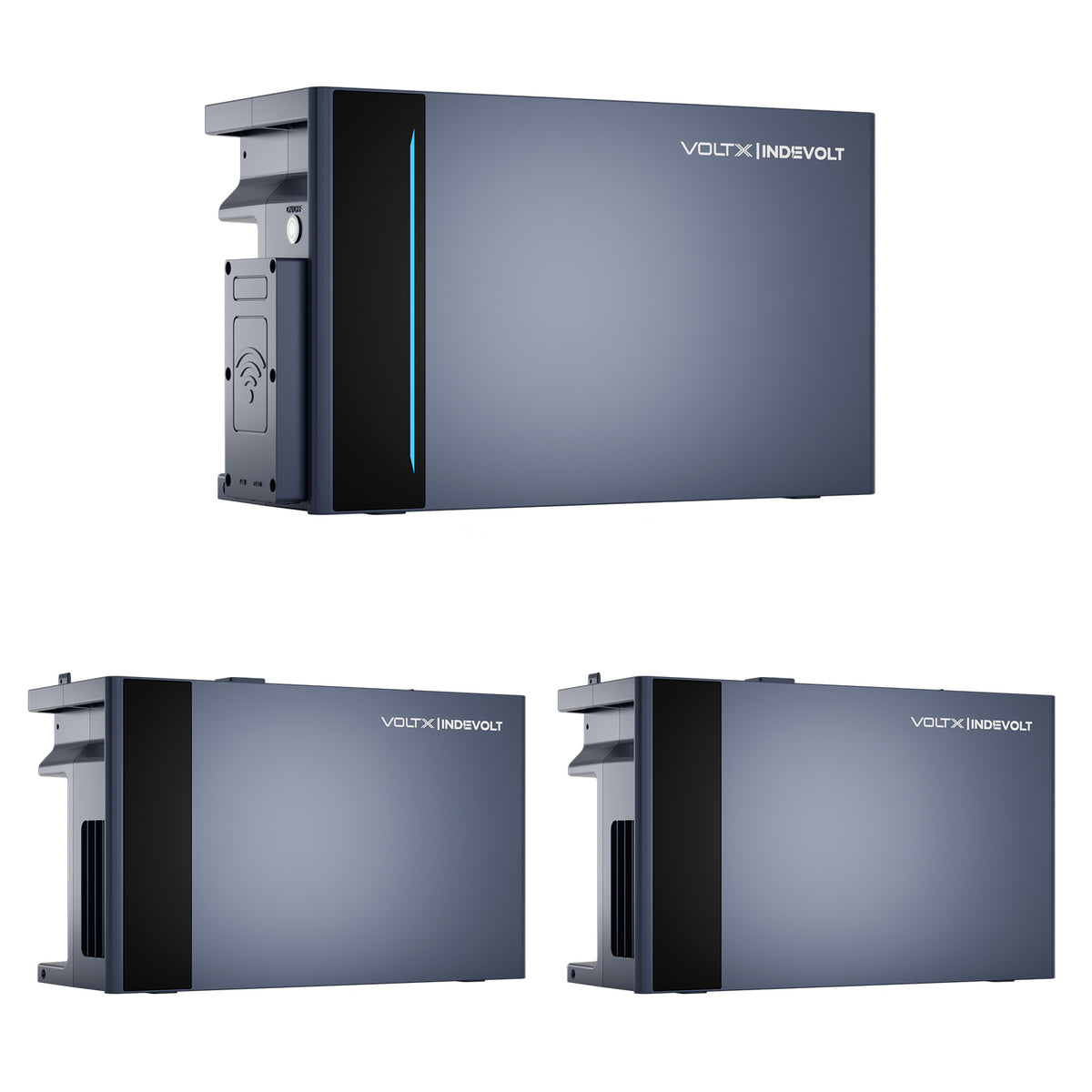

- Power Module + 2 Battery Modules: 3000W, 6kWh

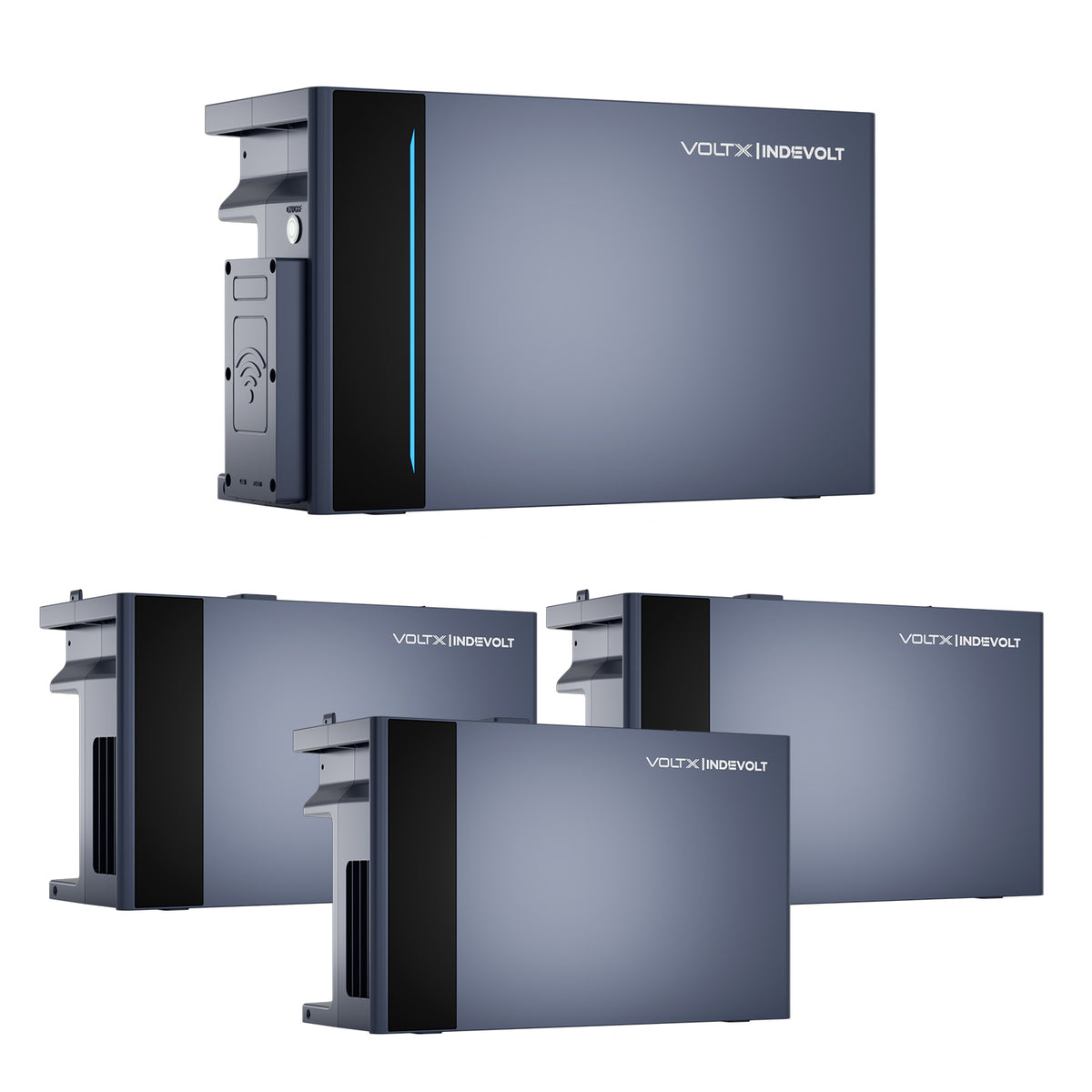

- Power Module + 3 Battery Modules: 3000W, 8kWh

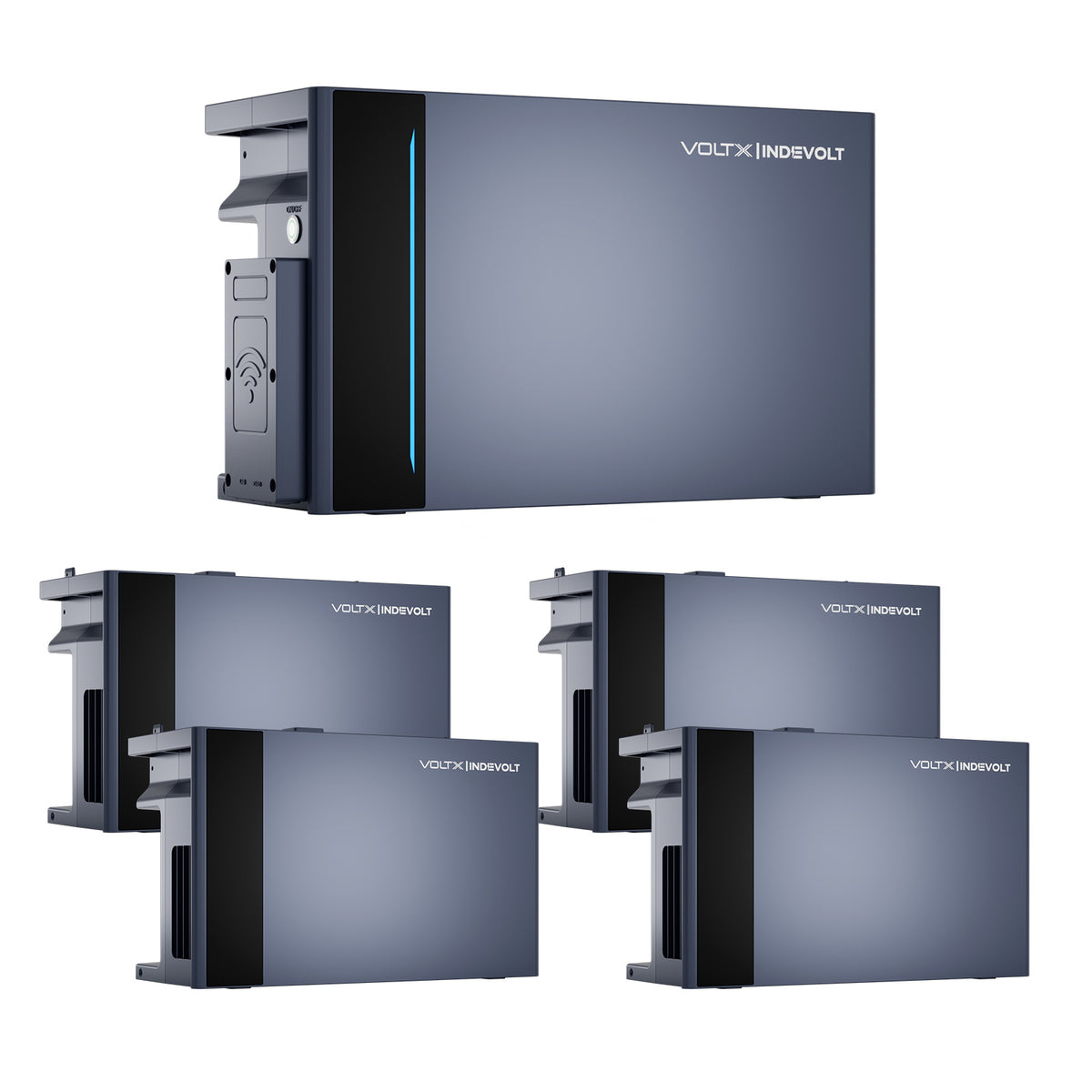

- Power Module + 4 Battery Modules: 3000W, 10kWh

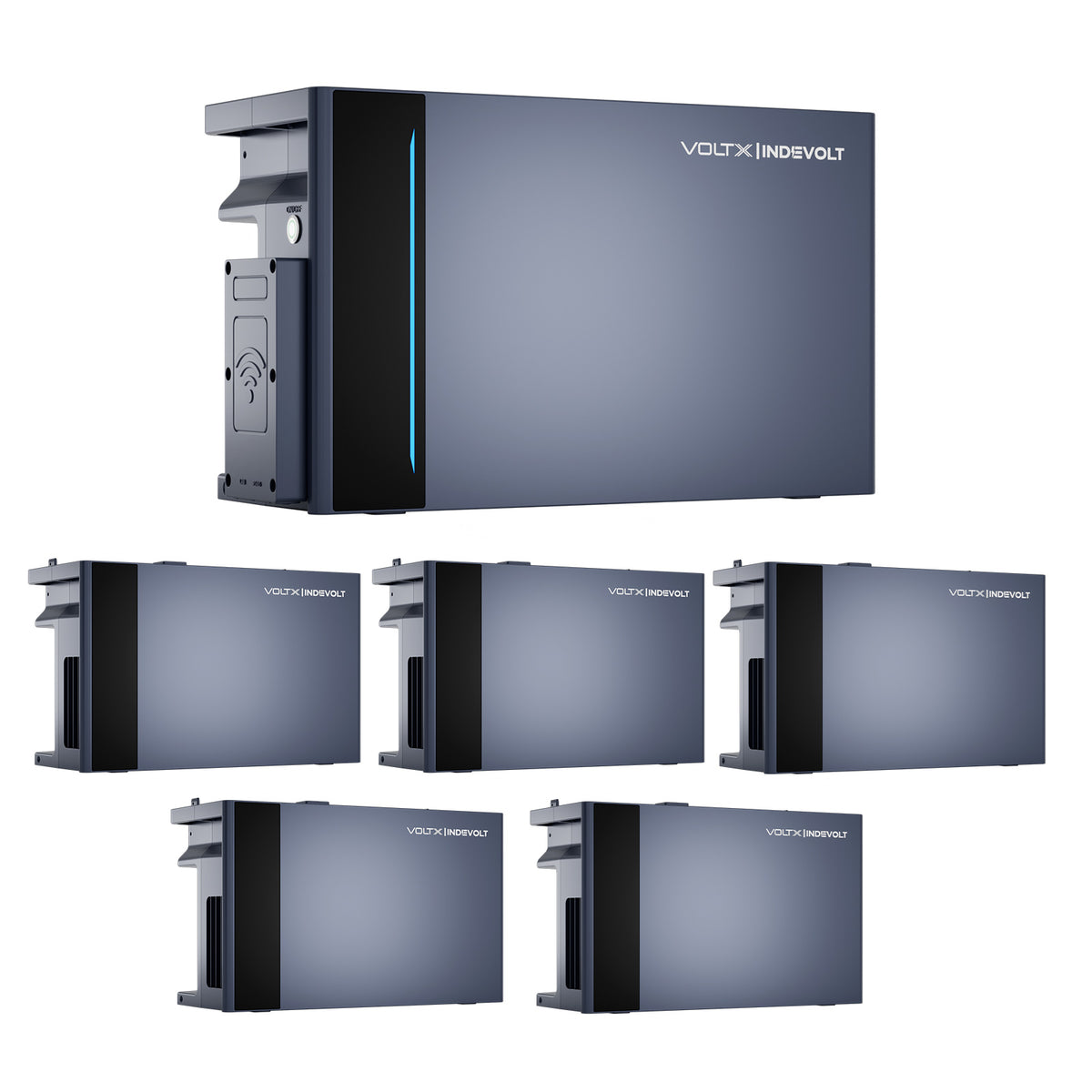

- Power Module + 5 Battery Modules: 3000W, 12kWh
Battery Modules are sold separately.
Plan your installation space

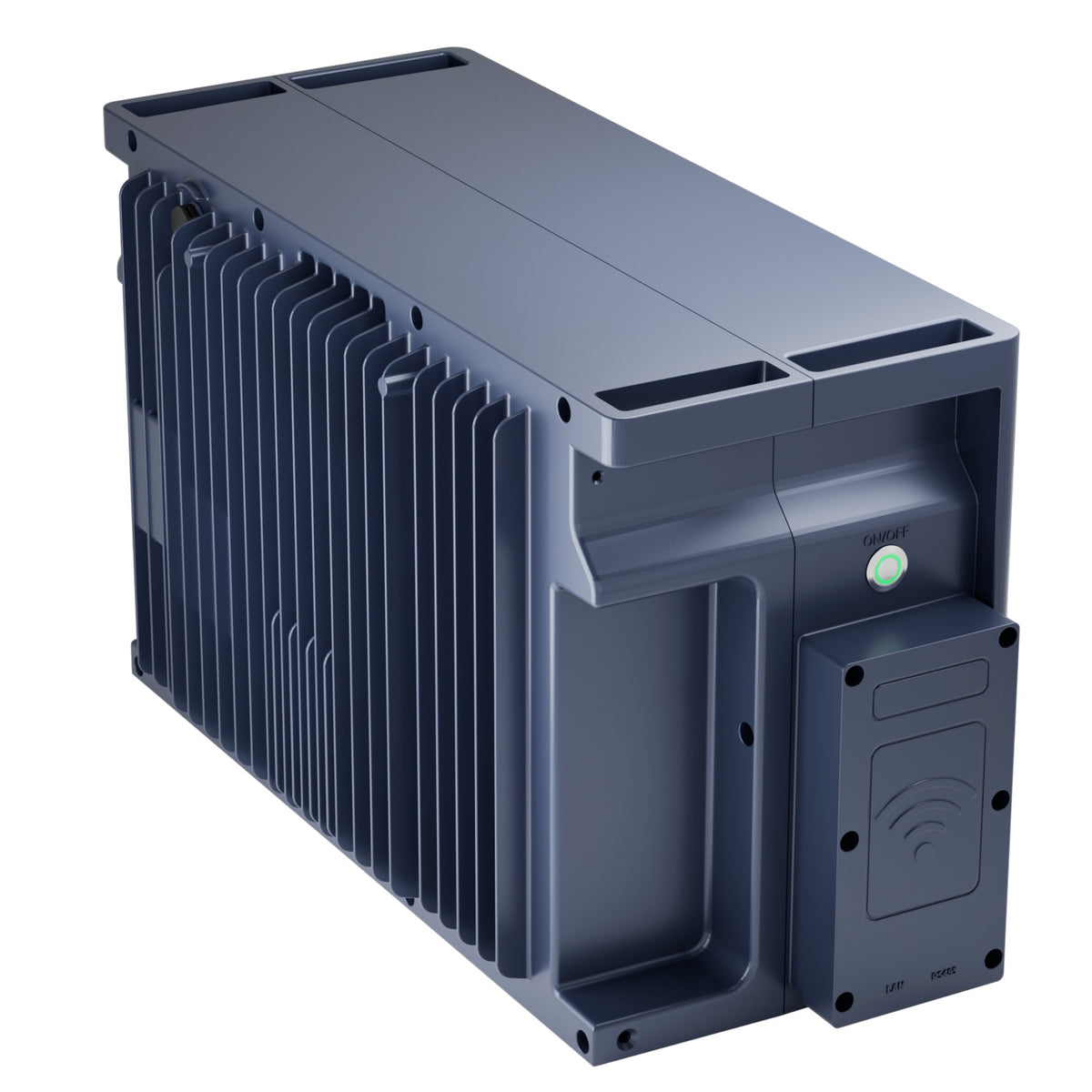

Before adding battery modules, confirm the area can safely fit the complete stacked system, with room for ventilation and heat dissipation, including at least 30mm clearance behind the heatsink. Follow the user manual when stacking, securing or removing modules, and always switch off the system and disconnect AC input before installing or removing a module.
Built to last
LiFePO4 chemistry rated for up to 8000 cycles, intelligent BMS protection and a 10-year Australian warranty, with local after-sales support through the original AU purchase channel.
AC INPUT
| Max AC Input Power (Power Module only) | 1000W |
| Max AC Input Power (+ 1 Battery Module) | 2000W |
| Max AC Input Power (+ 2 or more Battery Modules) | 2200W |
| Adjustable AC Input Power Range | 0 to 2200W (set in app) |
| Default AC Input Power | 1200W |
| Max AC Input Current | 10A AC |
| AC Input Voltage / Frequency | 230V AC +/-5%, 50Hz (L+N+PE) |
| AC Cable Length | 3m |
AC OUTPUT
| Max AC Output Power (Power Module only) | 1000W |
| Max AC Output Power (+ 1 Battery Module) | 2000W |
| Max AC Output Power (+ 2 or more Battery Modules) | 3000W |
| Peak / Surge Power | 4500W for 200ms |
| Max AC Output Current | 13A AC |
| AC Output Voltage / Frequency | 230V AC, 50Hz (L+N+PE) |
| Output Waveform | Pure Sine Wave |
| Total Harmonic Distortion | 3% |
| Power Factor | 0.8 (lagging) to 0.8 (leading) |

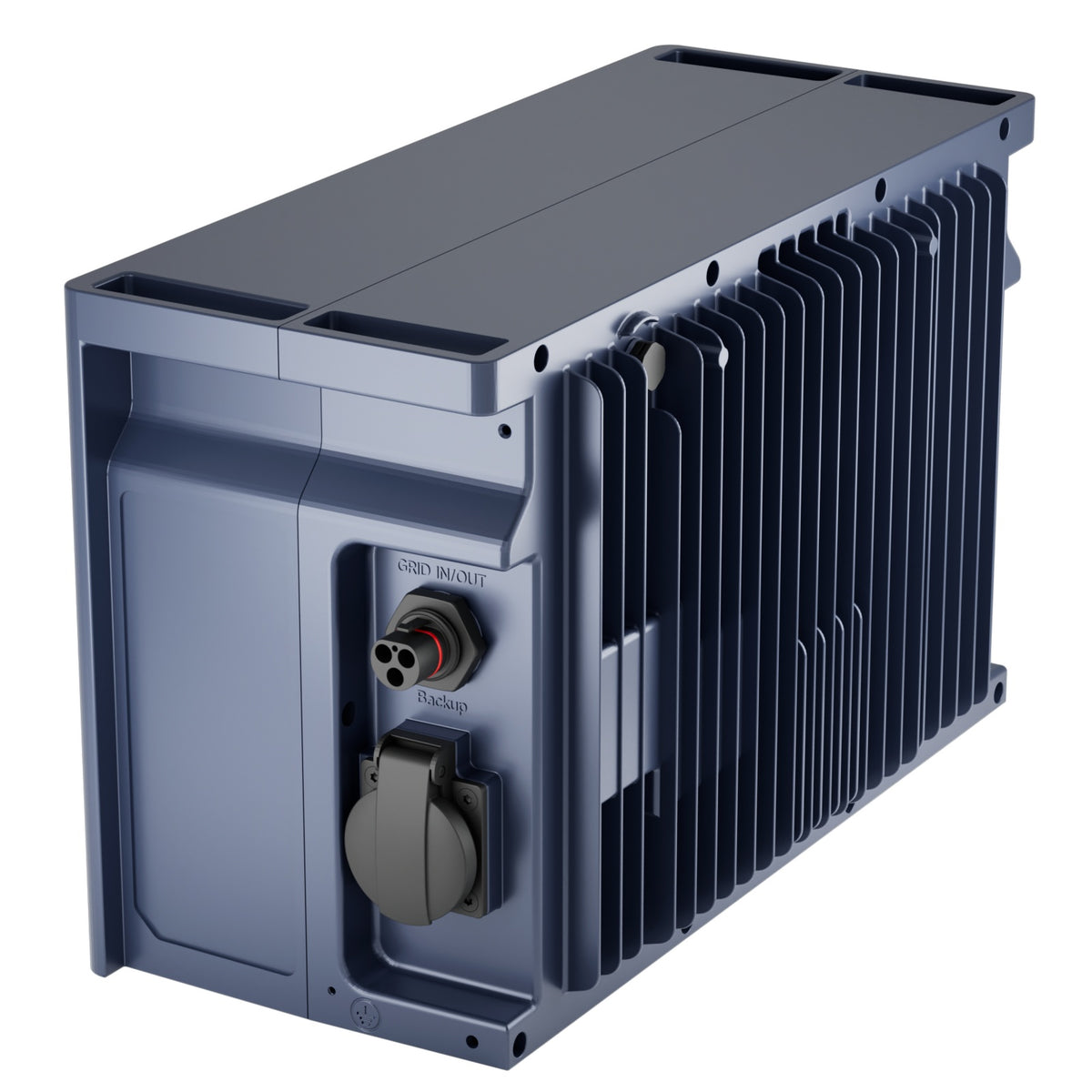

| AC Output Ports | 1 x Australian socket |

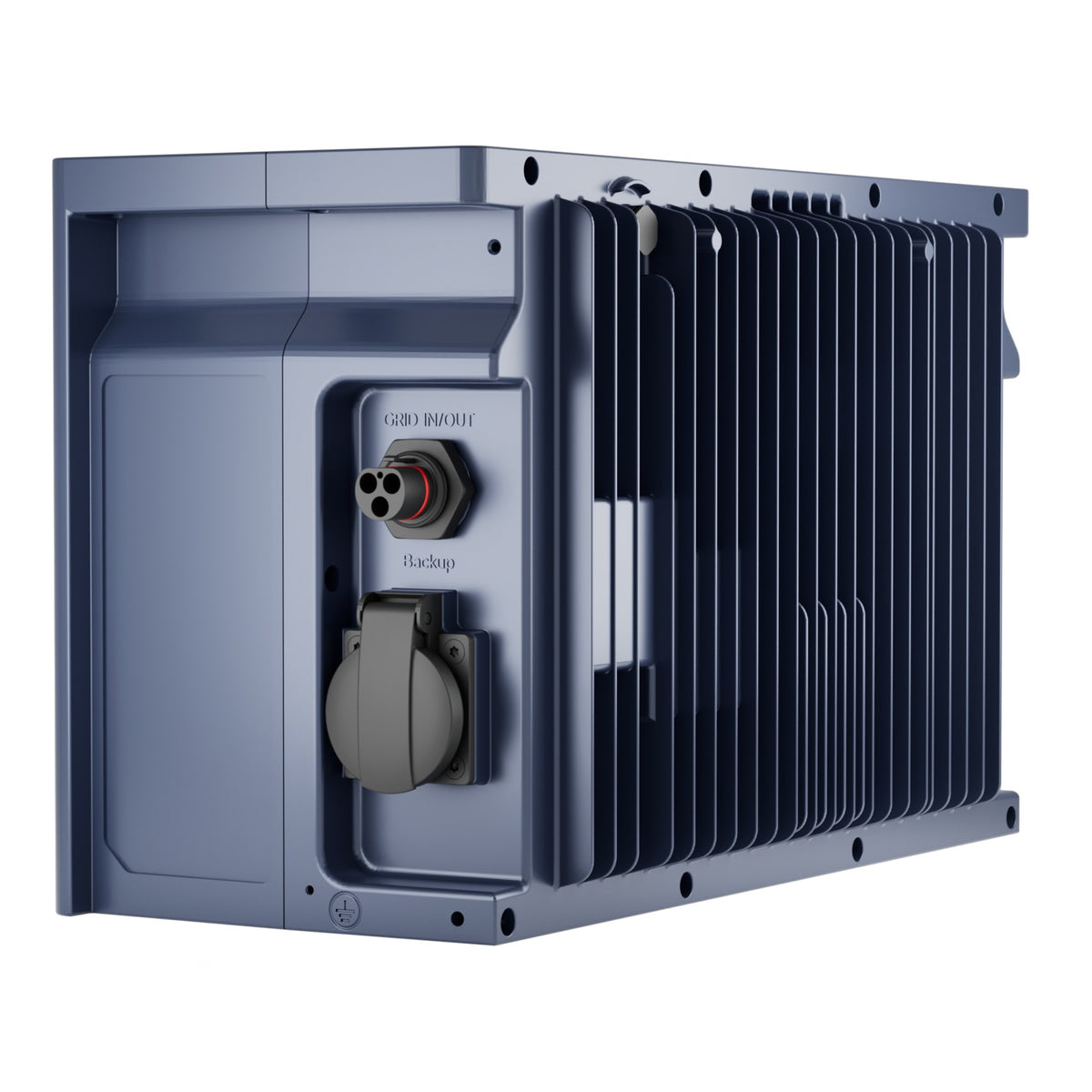

BACKUP OUTPUT
| Function | EPS / Backup Output |
| Transfer Time | 10ms |
| Supported Loads | Fridges, lighting, routers and similar low-draw appliances |
| Not Recommended | EV chargers, large air conditioners, electric hot water systems |
BYPASS OUTPUT
| Max Bypass Output Power | 2300W |
| Max Bypass Output Current | 10A AC |
| Voltage / Frequency | 230V AC, 50Hz (L+N+PE) |
| Charging During Bypass | Yes |
BATTERY
| Battery Type | LiFePO4 |
| Battery Rated Energy | 2016Wh |
| Usable Energy | 2016Wh |
| Nominal Battery Voltage | 6.4V |
| Battery Capacity | 315Ah |
| Cell Type | Prismatic |
| Battery Configuration | 1P2S |
| Depth of Discharge | 100% |
| Cycle Life | Up to 8000 cycles |
BMS AND PROTECTION
| BMS Protection | Overcharge, over-discharge, overcurrent, short circuit, over-temperature, low temperature |
| Cell Balancing | Passive balancing |
| BMS Communication | CAN |
| Overload Protection | 3600W sustained for 15 seconds |
| Additional Protection | Short circuit, over-temperature, low temperature, over-voltage, under-voltage, grounding |
| Auto Recovery | Retries every 15 minutes |
PERFORMANCE
| Inverter Efficiency | 97% |
| Charging Efficiency | 90% |
| Cooling Method | Natural cooling, no fan |
| Noise Level | 25dB at 1m |
| Standby Consumption | 25W with output on, 5W with output off |
GENERAL
| Model No. | PowerFlex 3000 AC-PG-3000B1-AU |
| Charging Temperature | -20C to 50C |
| Discharging Temperature | -20C to 50C |
| Storage Temperature | -20C to 60C up to 1 month, 0C to 40C up to 6 months |
| Operating Humidity | 5% to 90% RH |
| Operating Altitude | Below 2000m |
| Mounting | Floor standing, wall bracket assisted |
| Minimum Clearance | 30mm |
| Overvoltage Category | OVC II (DC), OVC III (AC) |
| Protection Class | Class I |
| Pollution Degree | PD3 (external), PD2 (internal) |
DIMENSIONS AND WEIGHT
| Dimensions (per module) | 425 x 195 x 260 mm |
| Net Weight (per module) | 21.5 kg |
| Gross Weight (per module) | 25 kg |
| Package Dimensions | 590 x 295 x 325 mm |
CONNECTIVITY AND APP
| Wi-Fi | 2.4GHz (802.11 b/g/n/ax), 5GHz (802.11 a/n/ac/ax) |
| Bluetooth | Bluetooth 5.0 (2402-2480 MHz) |
| Other Ports | LAN, RS485 |
| App Control | Yes, iOS and Android |
| Remote Monitoring and Control | Yes |
| Scheduled and Off-Peak Charging | Yes |
| Charge Target SOC and Backup SOC | Yes, both adjustable |
| Discharge Schedule | Yes |
| AC Charging Power Adjustment | Yes, via app |
| OTA Firmware Update | Yes |
WHAT'S IN THE BOX
| 1 x | Power Module |
| 1 x | AC Power Cable |
| 1 x | User Manual |
| 2 x | Wall Mount Fittings |
| 4 x | Adjustable Levelling Feet |
| 2 x | M5 x 60 Self-drilling Screws |
| 2 x | M4 x 20 Screws |
| 3 x | M4 x 8 Screws |
Contents shown are for the Power Module. Kit configurations include the Power Module plus the number of Battery Modules stated in the selected model.
